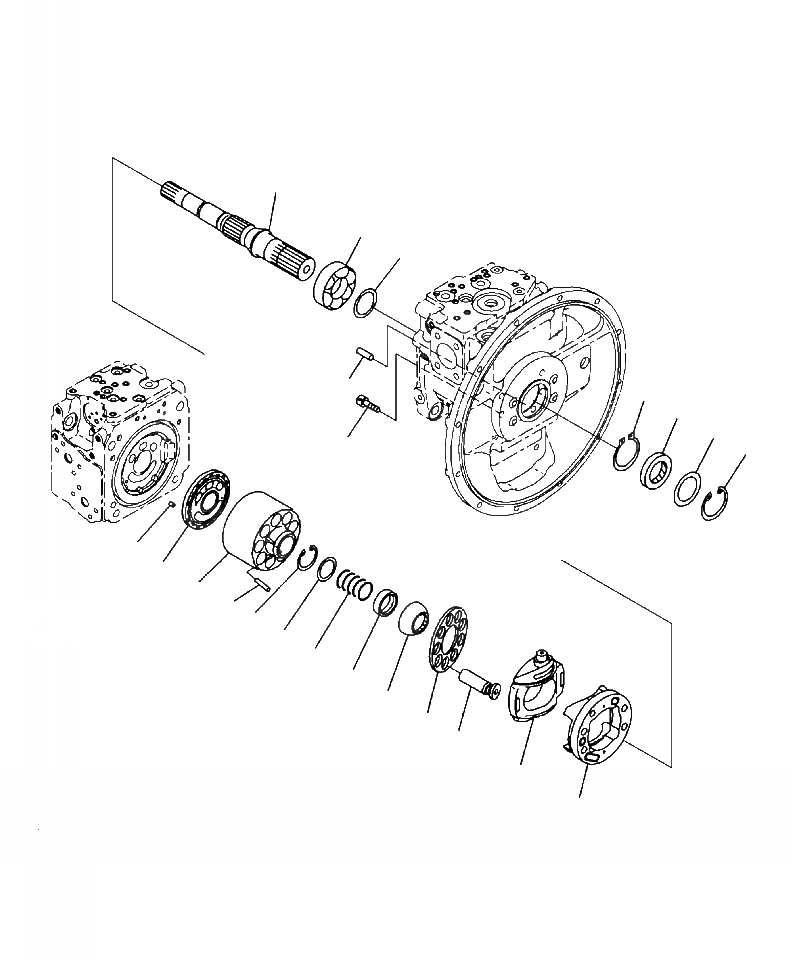

Запчасти Komatsu PC200LL-8 H-A ОСНОВН. НАСОС ПЕРЕДН. БЛОК ЦИЛИНДРОВ ГИДРАВЛИКА

1

708-2L-32160

SHAFT, FRONT

2

708-2L-32150

BEARING

3

708-2E-05040

WASHER KIT

|$5

NSS

WASHER, 3.1 MM

|$6

NSS

WASHER, 3.0 MM

|$7

NSS

WASHER, 2.9 MM

|$8

NSS

WASHER, 2.8 MM

4

708-25-12790

RING, SNAP

5

708-2L-32460

SEAL, OIL

6

708-2L-22160

SPACER

7

04065-06825

RING

|$13

708-2L-06470

BLOCK, FRONT

8

708-2L-33190

BLOCK, CYLINDER

9

708-2L-33170

PLATE, VALVE

10

720-68-19610

PIN

11

04065-04818

RING, SNAP

12

708-2L-23131

SEAT

13

708-2L-33160

SPRING

14

708-7L-13140

SEAT

15

708-2L-23351

GUIDE, RETAINER

16

708-2L-23360

PIN

17

708-2L-33350

RETAINER, SHOE

18

708-2L-33430

PISTON SUB

|$25

708-2L-06630

CRADLE

19

NSS

CRADLE

20

NSS

CAM, ROCKER

21

04020-01228

PIN, DOWEL

22

207-62-K3180

BOLT
