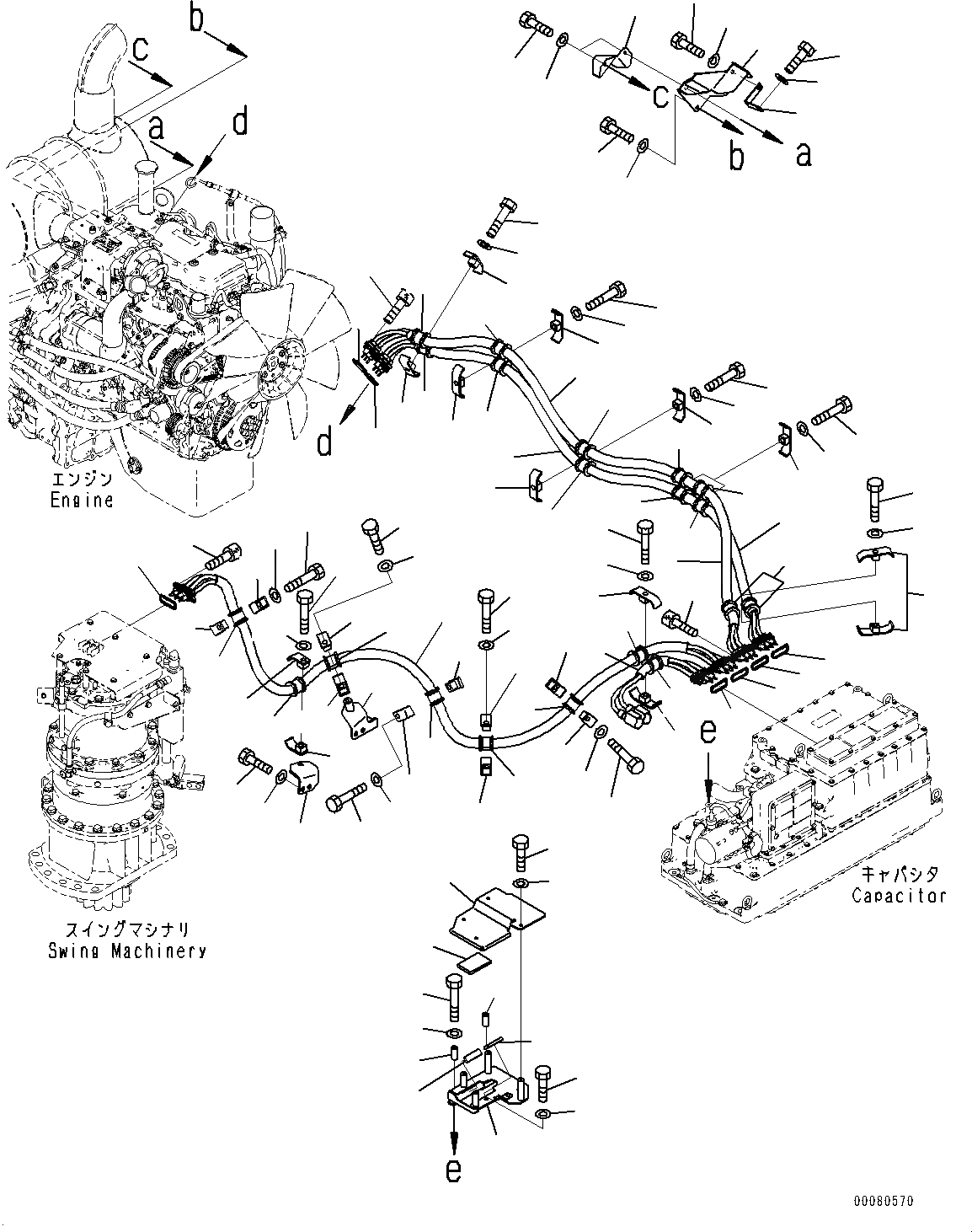

Запчасти Komatsu PC200LC-8E0 ЭЛЕКТРИЧ. ПРОВОДКА, POWER КАБЕЛЬ (№8-) ЭЛЕКТРИЧ. ПРОВОДКА

1

7875-25-4104

Wiring Harness, Power

1

7875-25-4103

Wiring Harness, Power

1

7875-25-4101

Wiring Harness

2

7875-17-6790

Seal

3

7875-25-4204

Wiring Harness, Power

3

7875-25-4203

Wiring Harness, Power

3

7875-25-4201

Wiring Harness

4

7875-17-6790

Seal

5

7875-25-4304

Wiring Harness, Power

5

7875-25-4303

Wiring Harness, Power

5

7875-25-4301

Wiring Harness

6

7875-17-6790

Seal

7

7875-25-4403

Wiring Harness, Power

7

7875-25-4402

Wiring Harness, Power

7

7875-25-4401

Wiring Harness

8

7875-17-6790

Seal

9

07094-30620

Clamp

10

07095-00630

Cushion

11

01010-81270

Bolt

12

01643-31232

Washer

13

01010-81280

Bolt

14

01643-31232

Washer

15

07094-30620

Clamp

16

07095-00630

Cushion

17

01010-81250

Bolt

18

01643-31232

Washer

19

205-06-31140

Bracket

20

205-06-31150

Bracket

21

01010-81225

Bolt

22

01643-31232

Washer

23

07094-10620

Clamp

24

07095-00630

Cushion

25

01010-81270

Bolt

26

01643-31232

Washer

27

01252-80616

Bolt

28

205-06-31280

Bracket

29

01010-80820

Bolt

30

01643-30823

Washer

31

205-54-31210

Cover

32

205-54-31220

Cover

33

01010-80820

Bolt

34

01643-30823

Washer

35

205-06-31741

Cover

36

205-06-31770

Sheet

37

01010-80820

Bolt

38

01643-30823

Washer

39

205-06-31730

Bracket

40

205-06-31760

Sheet

41

01010-80820

Bolt

42

01643-30823

Washer

43

207-62-32890

Collar

44

01010-80855

Bolt

45

01643-30823

Washer
