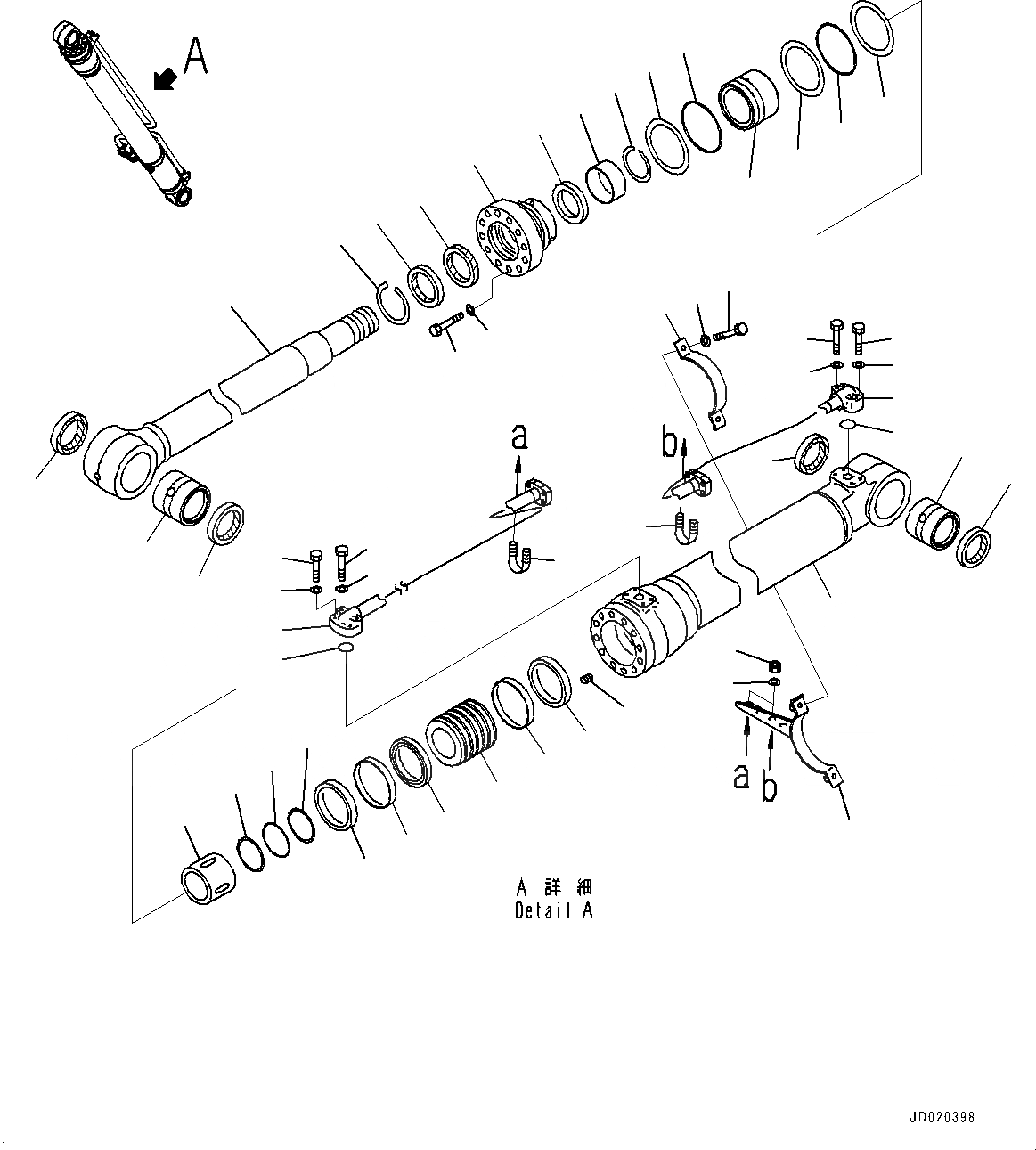

Запчасти Komatsu PC200LC-8E0 ЦИЛИНДР СТРЕЛЫ, ВНУТР. ЧАСТИ, ЦИЛИНДР СТРЕЛЫ, ЛЕВ. (№8-) ЦИЛИНДР СТРЕЛЫ, ЧАС. СИСТ. СМАЗКИ ТИП

|$0

707-01-0H580

Cylinder Assembly

1

707-13-12380

Cylinder

2

707-58-85430

Rod, Piston

3

707-76-70651

Bushing

4

07145-00070

Seal, Dust, (Kit : K02)

5

707-76-80431

Bushing

6

07145-00080

Seal, Dust, (Kit : K02)

7

707-71-34660

Collar

8

707-35-91220

Ring, Back-up, (Kit : K02)

9

07000-15110

O-ring, (Kit : K02)

10

707-71-70800

Plunger

11

707-27-12650

Head, Cylinder

12

707-56-85510

Seal, Dust, (Kit : K02)

13

07179-13099

Ring, Snap

14

707-51-85030

Packing, Rod, (Kit : K02)

15

707-51-85650

Ring, Buffer, (Kit : K02)

16

707-52-90611

Bushing

17

707-35-91220

Ring, Back-up, (Kit : K02)

18

07000-15110

O-ring, (Kit : K02)

19

01010-81670

Bolt

20

01643-51645

Washer

21

707-75-85110

Ring, Snap

22

707-36-12851

Piston

23

707-44-12150

Ring, Piston

24

707-39-12140

Ring, Wear

25

707-44-12911

Ring

26

07000-15075

O-ring

27

707-35-90930

Ring, Back-up

28

01310-01216

Screw

29

707-86-67720

Tube,L.H.

30

20Y-62-24580

Tube,L.H.

31

707-88-28010

Bracket,L.H.

32

07372-21060

Bolt

33

01643-51032

Washer

34

07372-21045

Bolt

35

01643-51032

Washer

36

707-88-21620

Band

37

07000-13030

O-ring, (Kit : K02)

38

07372-21035

Bolt

39

01643-51032

Washer

40

07283-32738

Clip, Pipe

41

01597-01009

Nut

42

01643-31032

Washer
