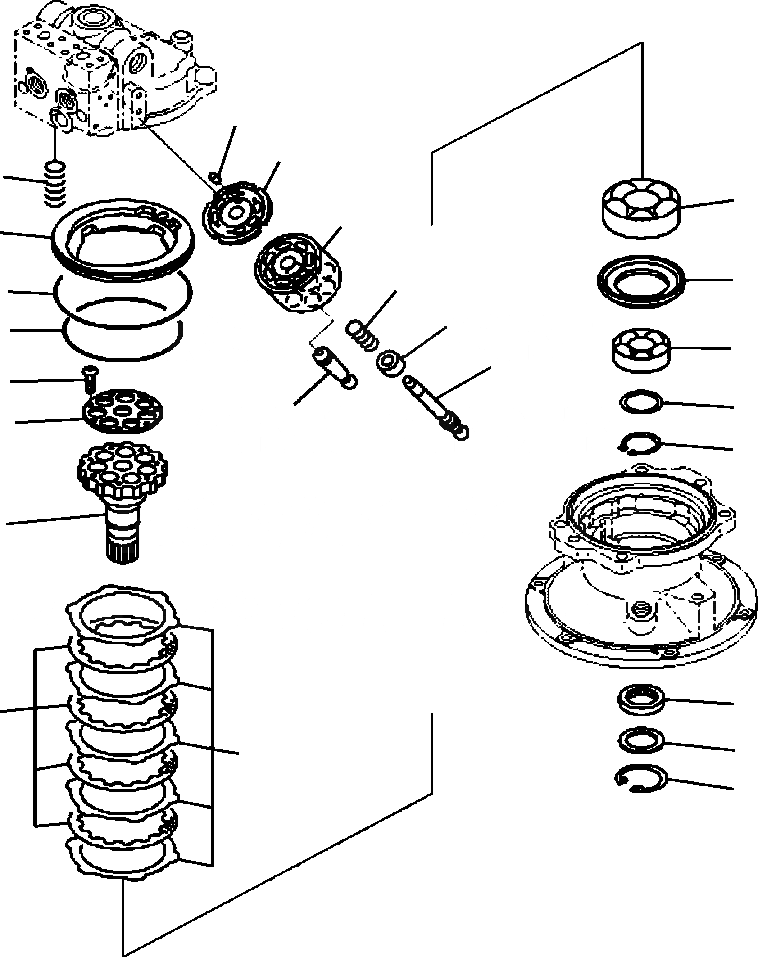

Запчасти Komatsu PC200LC-8 N-A МОТОР ПОВОРОТА ВЕДУЩ. ВАЛ И БЛОК ЦИЛИНДРОВ ПОВОРОТН. КРУГ И КОМПОНЕНТЫ

1

706-7G-41630

SHAFT, DRIVE

2

706-75-42880

BEARING

3

706-7G-41660

SPACER

4

706-76-40890

BEARING

5

706-7G-41510

SPACER KIT

|$7

NSS

SPACER, 3.1 MM

|$8

NSS

SPACER, 3.4 MM

|$9

NSS

SPACER, 3.7 MM

6

04064-04518

RING, SNAP

7

706-7E-11280

SEAL, OIL

8

706-7G-41910

SPACER

9

04065-06220

RING

10

706-7G-41310

BLOCK, CYLINDER

11

706-7G-41720

PLATE, VALVE

12

706-75-43750

PIN, DOWEL

13

706-7G-41320

SHAFT, CENTER

14

706-7G-41130

RING, CENTER

15

706-7G-41140

SPRING

|$20

706-7G-05010

RETAINER KIT

16

NSS

RETAINER

17

NSS

SCREW

18

706-7G-41410

PISTON SUBASSEMBLY

19

706-7G-91441

PLATE

20

706-7G-91450

DISC

21

706-7G-91120

PISTON, BRAKE

22

706-75-92310

O-RING

23

708-8F-31610

O-RING

24

706-7G-91360

SPRING
