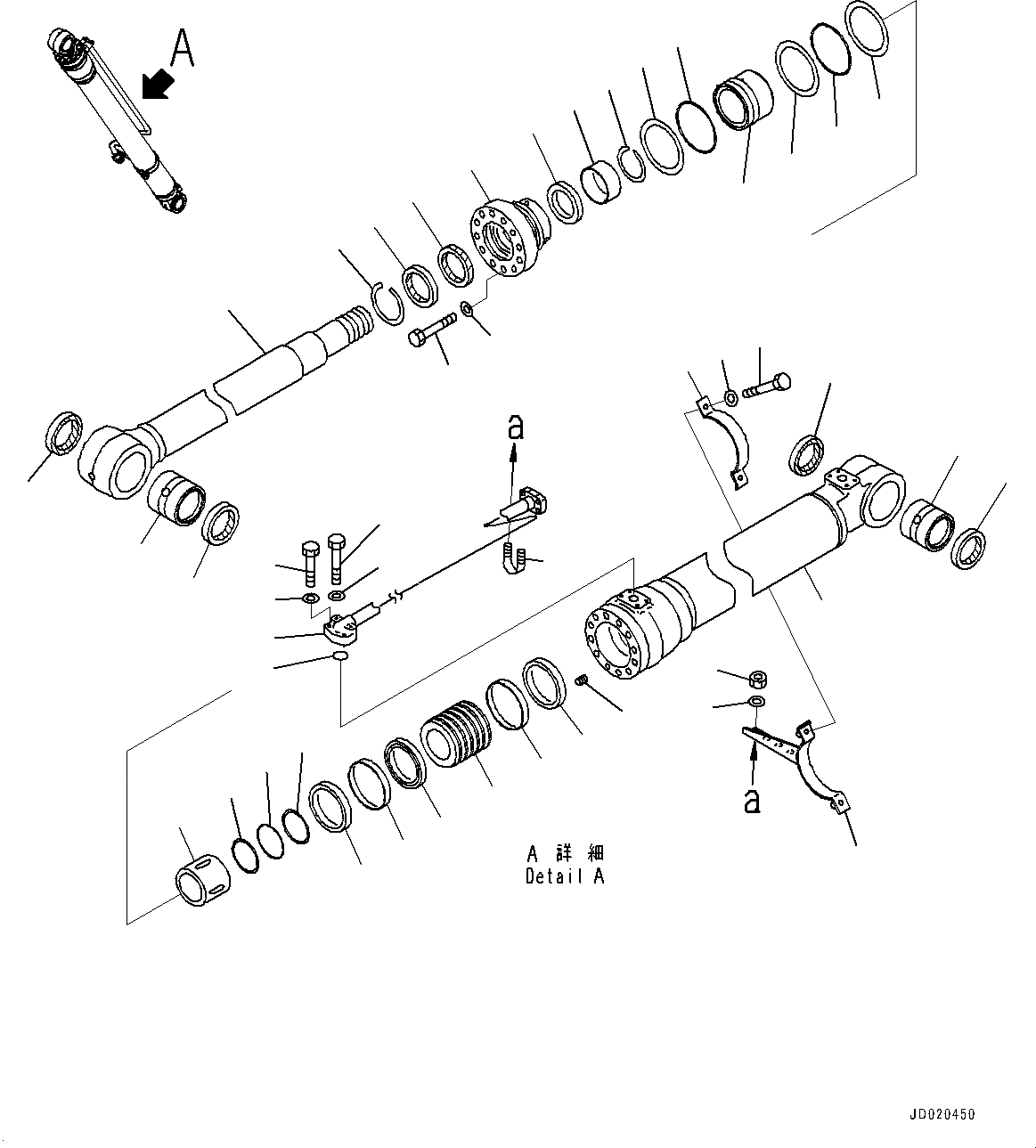

Запчасти Komatsu PC200LC-8 ЦИЛИНДР СТРЕЛЫ, ЛЕВ. (№-) ЦИЛИНДР СТРЕЛЫ, С РУКОЯТЬ CRANE

|$0

707-01-0H580

Cylinder Assembly

1

707-13-12380

Cylinder

2

707-58-85430

Rod, Piston

3

707-76-70651

Bushing

4

07145-00070

Seal, Dust, (Kit : K06)

5

707-76-80431

Bushing

6

07145-00080

Seal, Dust, (Kit : K06)

7

707-71-34660

Collar

8

707-35-91220

Ring, Back-up, (Kit : K06)

9

07000-15110

O-ring, (Kit : K06)

10

707-71-70800

Plunger

11

707-27-12650

Head, Cylinder

12

707-56-85740

Seal, Dust, (Kit : K06)

13

07179-13099

Ring, Snap

14

707-51-85030

Packing, Rod, (Kit : K06)

15

707-51-85650

Ring, Buffer, (Kit : K06)

16

707-52-90611

Bushing

17

707-35-91220

Ring, Back-up, (Kit : K06)

18

07000-15110

O-ring, (Kit : K06)

19

01010-81670

Bolt

20

01643-51645

Washer

21

707-75-85110

Ring, Snap

22

707-36-12851

Piston

23

707-44-12150

Ring, Piston, (Kit : K06)

24

707-39-12140

Ring, Wear, (Kit : K06)

25

707-44-12911

Ring

26

07000-15075

O-ring, (Kit : K06)

27

707-35-90930

Ring, Back-up, (Kit : K06)

28

01310-01216

Screw

29

707-86-67720

Tube

30

707-88-28010

Bracket

31

07372-21060

Bolt

32

01643-51032

Washer

33

07372-21045

Bolt

34

01643-51032

Washer

35

707-88-21620

Band

36

07000-13030

O-ring, (Kit : K06)

37

07372-21035

Bolt

38

01643-51032

Washer

39

07283-32738

Clip, Pipe

40

01597-01009

Nut

41

01643-31032

Washer
