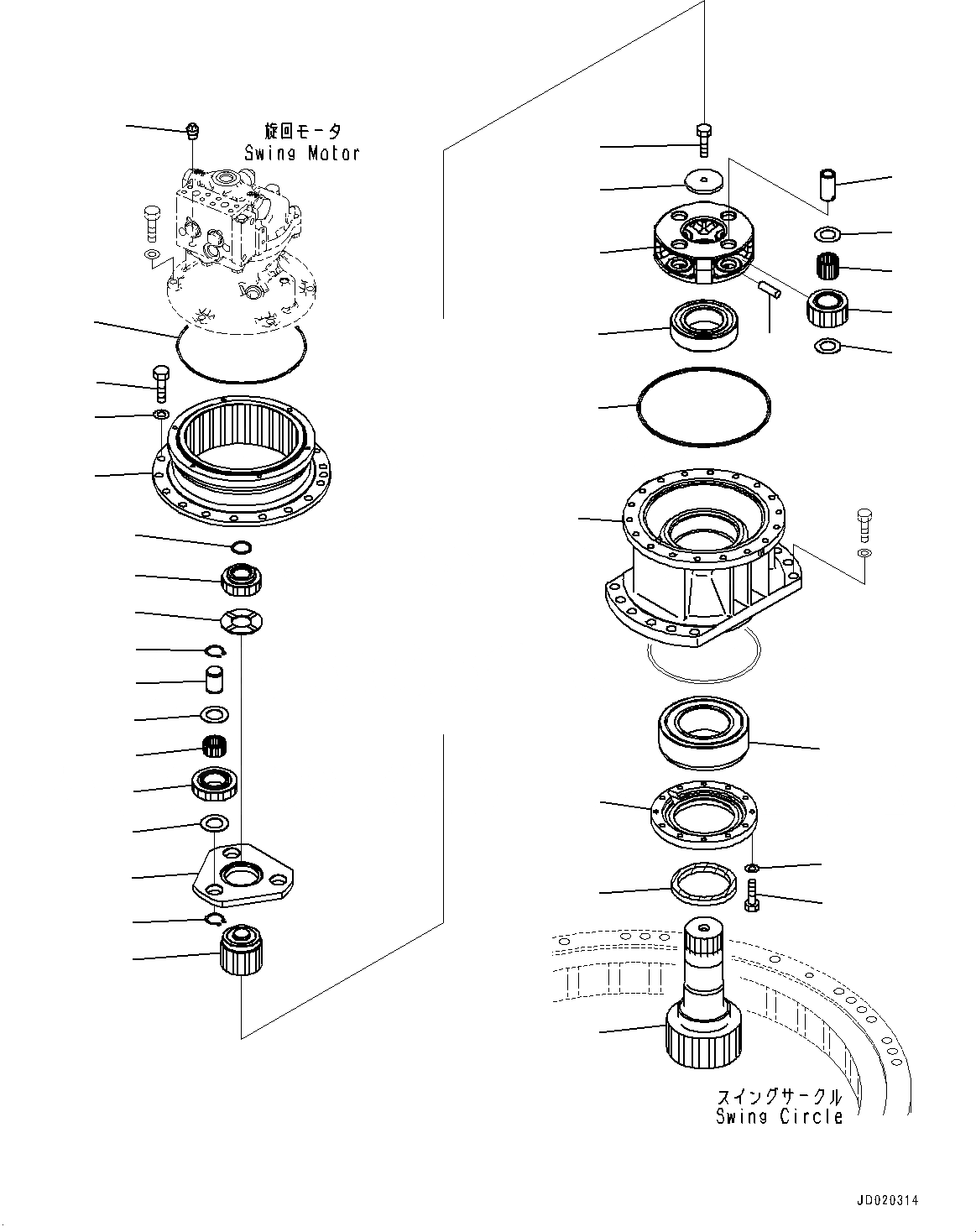

Запчасти Komatsu PC200LC-8 МЕХАНИЗМ ПОВОРОТА И МОТОР, КРЕПЛЕНИЕ (№-) МЕХАНИЗМ ПОВОРОТА И МОТОР

1

22U-26-21280

Ring

2

07042-00312

Plug, Taper

3

20Y-26-31120

Case

4

20Y-26-22331

Bearing

4

20Y-26-22330

Bearing

5

20Y-26-22342

Bearing

5

20Y-26-22340

Bearing

6

206-26-69112

Shaft

6

206-26-69111

Shaft

7

20Y-26-22420

Seal

8

20Y-26-22191

Cover

9

01010-81045

Bolt

10

01643-31032

Washer

11

07000-15310

O-ring

12

22U-26-21580

Carrier

13

22U-26-21540

Gear

14

20G-26-11241

Bearing

15

20Y-27-21240

Washer, Thrust

16

20Y-26-22250

Pin

17

20Y-27-21280

Pin

18

20Y-26-21240

Plate

19

112-32-11211

Bolt

20

22U-26-21551

Gear

21

20K-22-11190

O-ring

22

01010-81440

Bolt

23

01643-31445

Washer, Flat

24

22U-26-21530

Gear

25

22U-26-21572

Carrier

26

22U-26-21520

Gear

27

20Y-26-21281

Bearing

28

22U-26-21230

Washer, Thrust

29

22U-26-21210

Pin

30

04064-03515

Ring, Snap

31

22U-26-21250

Washer, Thrust

32

22U-26-21510

Gear
