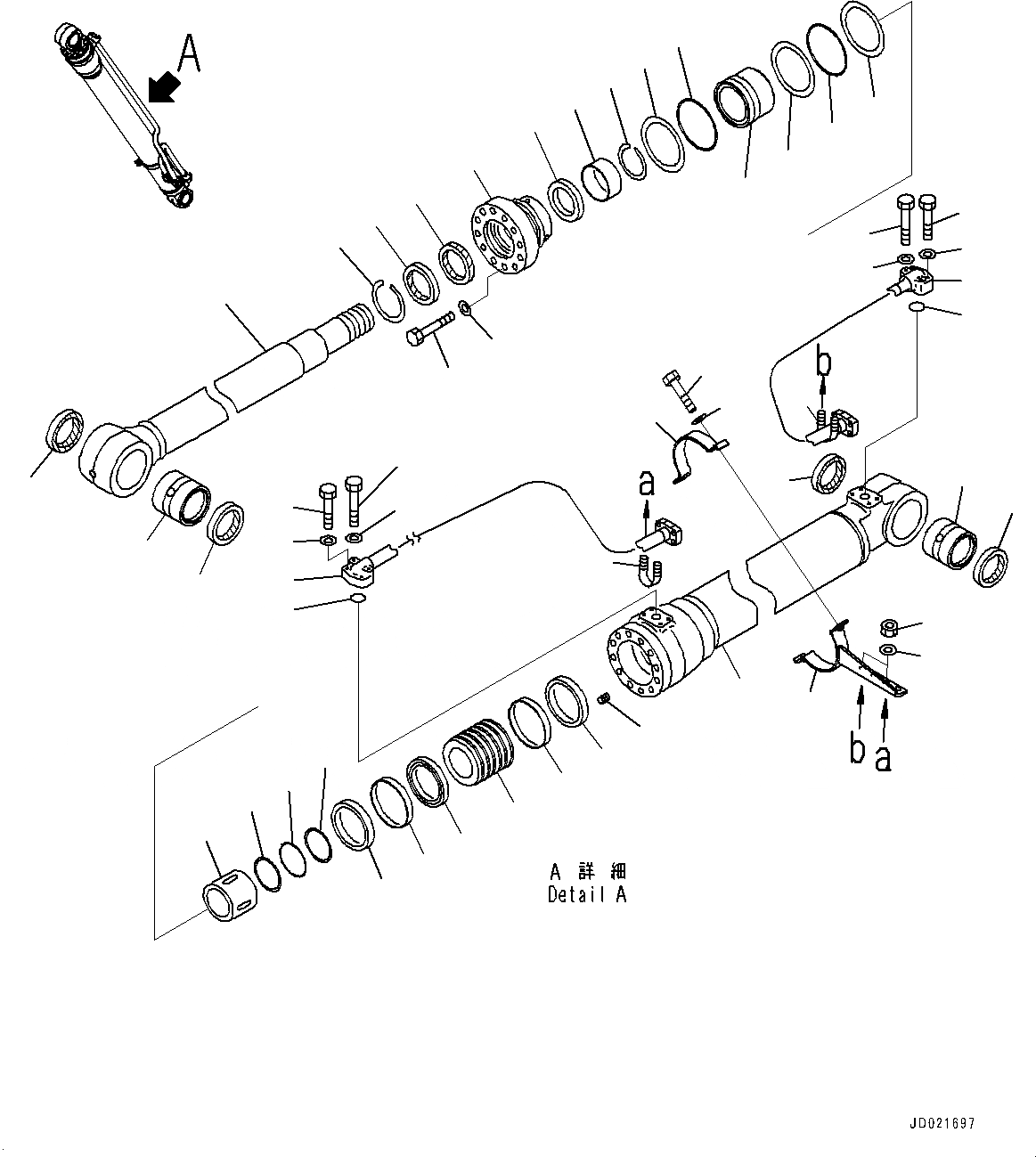

Запчасти Komatsu PC200LC-8 ЦИЛИНДР СТРЕЛЫ, ПРАВ. (№-) ЦИЛИНДР СТРЕЛЫ, БОЛЬШ. DIAMETER ТИП

|$0

707-01-0H650

Cylinder Assembly

1

707-13-13890

Cylinder

2

707-58-90E50

Rod, Piston

3

707-76-80420

Bushing

4

07145-00070

Seal, Dust, (Kit : K07)

5

707-76-80431

Bushing

6

07145-00080

Seal, Dust, (Kit : K07)

7

707-71-34670

Collar

8

707-35-91320

Ring, Back-up, (Kit : K07)

9

07000-15120

O-ring, (Kit : K07)

10

707-71-60970

Plunger

11

707-27-13650

Cylinder Head

12

07179-13104

Ring, Snap

13

707-56-90740

Seal, Dust, (Kit : K07)

14

707-52-90681

Bushing

15

707-51-90030

Packing, Rod, (Kit : K07)

16

707-51-90650

Ring, Buffer, (Kit : K07)

17

07000-15120

O-ring, (Kit : K07)

18

707-35-91320

Ring, Back-up, (Kit : K07)

19

01010-81670

Bolt

20

01643-51645

Washer

21

707-75-90110

Ring, Snap

22

707-36-13780

Piston

23

707-44-13150

Ring, Piston, (Kit : K07)

24

707-39-13150

Ring, Wear, (Kit : K07)

25

707-44-13911

Ring

26

07000-15080

O-ring, (Kit : K07)

27

707-35-90940

Ring, Back-up, (Kit : K07)

28

01310-01216

Screw

29

707-86-67770

Tube

30

206-62-64290

Tube

31

707-88-28060

Bracket

32

07372-21060

Bolt

33

01643-51032

Washer

34

07372-21045

Bolt

35

01643-51032

Washer

36

707-88-21331

Band

37

07000-13030

O-ring, (Kit : K07)

38

07372-21035

Bolt

39

01643-51032

Washer

40

07283-32738

Clip, Pipe

41

01597-01009

Nut

42

01643-31032

Washer
