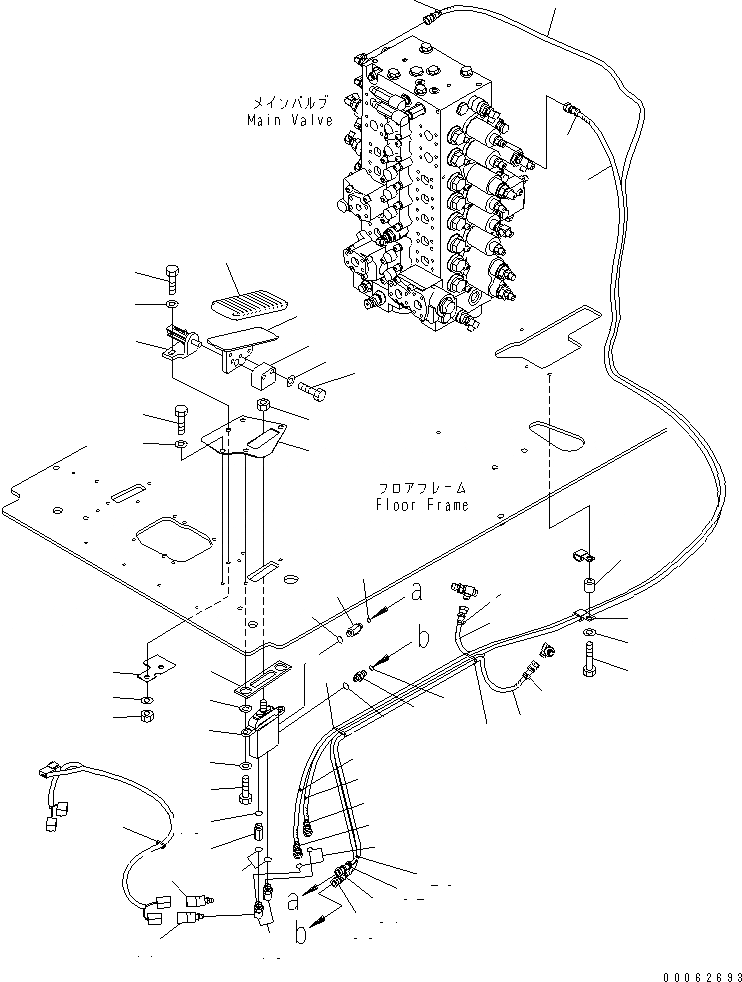

Запчасти Komatsu PC200LC-8 КАБИНА (ПОЛ) (2. УПРАВЛ. НАВЕСН. ОБОРУД.)(№-) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

1

702-16-01230

PILOT VALVE,(SEE FIG. Y1670-21A1)

2

22U-54-25660

SEAL

3

20Y-43-41760

SEAT

4

01010-81025

BOLT

5

01643-31032

WASHER

6

01643-31032

WASHER

7

20Y-62-25360

BRACKET

8

01010-D1035

BOLT

9

01643-71032

WASHER

10

20Y-53-14220

PEDAL

11

01010-D1045

BOLT

12

01643-71032

WASHER

13

22U-54-25180

PLATE

14

01010-81020

BOLT

15

01643-31032

WASHER

16

207-43-81240

CAP

17

20T-910-8660

NIPPLE

18

07000-12011

O-RING

19

20Y-62-52160

ELBOW

20

02896-11008

O-RING

21

07000-12011

O-RING

22

20Y-62-43470

NIPPLE

23

02896-11008

O-RING

24

11Y-62-12140

NIPPLE

25

02896-11008

O-RING

26

07000-12011

O-RING

27

20Y-62-52340

HOSE, 2650MM

28

20Y-62-52350

HOSE, 3350MM

29

208-62-72310

HOSE, 950MM

30

208-62-72650

HOSE, 1200MM

31

20Y-62-22790

BAND, RED

32

20Y-62-22820

BAND, BLUE

33

20Y-62-22840

BAND, BLACK

34

20Y-62-22860

BAND, BROWN

35

08034-20519

BAND

36

04435-51210

CLIP

37

195-33-11220

SPACER

38

01010-81050

BOLT

39

01643-31032

WASHER

40

01583-11408

NUT

41

206-06-61130

SWITCH

42

20Y-53-14130

BRACKET

43

01643-31032

WASHER

44

01580-11008

NUT

45

08034-20519

BAND
