Запчасти Komatsu PC200LC-7L ОСНОВН. КЛАПАН (7TH СЕКЦ. PRESSURE COMBINATION КЛАПАН) ( АКТУАТОР) ГИДРАВЛИКА

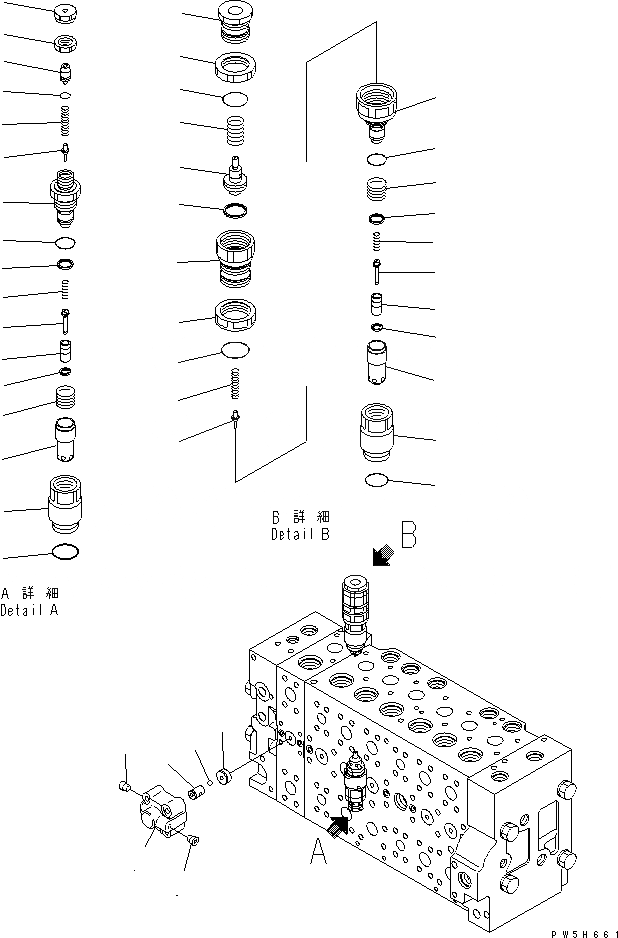

Схема запчастей Komatsu PC200LC-7L - ОСНОВН. КЛАПАН (7TH СЕКЦ. PRESSURE COMBINATION КЛАПАН) ( АКТУАТОР) ГИДРАВЛИКА
1
2
3
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44

Артикул

Название

Примечание

Количество

|$0

723-47-20702

VALVE ASS'Y,(SEE FIG. H0120-01A1)

|$1

723-41-07600

VALVE SUB ASS'Y,(SEE FIG. H0120-01A4)

|$2

723-40-66300

VALVE ASS'Y

1

CASE

2

SEAT

3

SEAT

4

BALL

5

PLUG

|$8

723-90-61100

VALVE ASS'Y,175 KG/CM SQUARED

|$9

723-90-61200

VALVE ASS'Y,210 KG/CM SQUARED

|$10

723-90-61300

VALVE ASS'Y,250 KG/CM SQUARED

|$11

723-90-61400

VALVE ASS'Y,280 KG/CM SQUARED

6

SLEEVE

7

SLEEVE

8

POPPET

9

PISTON

10

PLUG

11

POPPET

12

SPACER

13

SPRING

14

SPRING

15

SPRING

16

SEAL

17

SEAL

18

709-25-11390

O-RING

19

O-RING

20

O-RING

21

NUT

22

NUT

|$29

723-90-76101

VALVE ASS'Y

|$30

723-90-76300

VALVE ASS'Y

|$31

723-90-76400

VALVE ASS'Y,SUCTION AND SAFETY

23

SLEEVE

24

SLEEVE

25

POPPET

26

SEAL

27

PISTON

28

SLEEVE

29

POPPET

30

UNION

31

PISTON

32

SPRING

33

SPRING

34

SPRING

35

SEAL

36

SEAL

37

07000-13024

O-RING

38

O-RING

39

NUT

40

NUT

41

HOLDER

42

O-RING

43

SPRING

44

O-RING

Выбрано товаров: 54
