Запчасти Komatsu PC200LC-7B ПРОВОДКА (СОЕДИНЕНИЕ) (ДЛЯ ПОДАЮЩ.) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

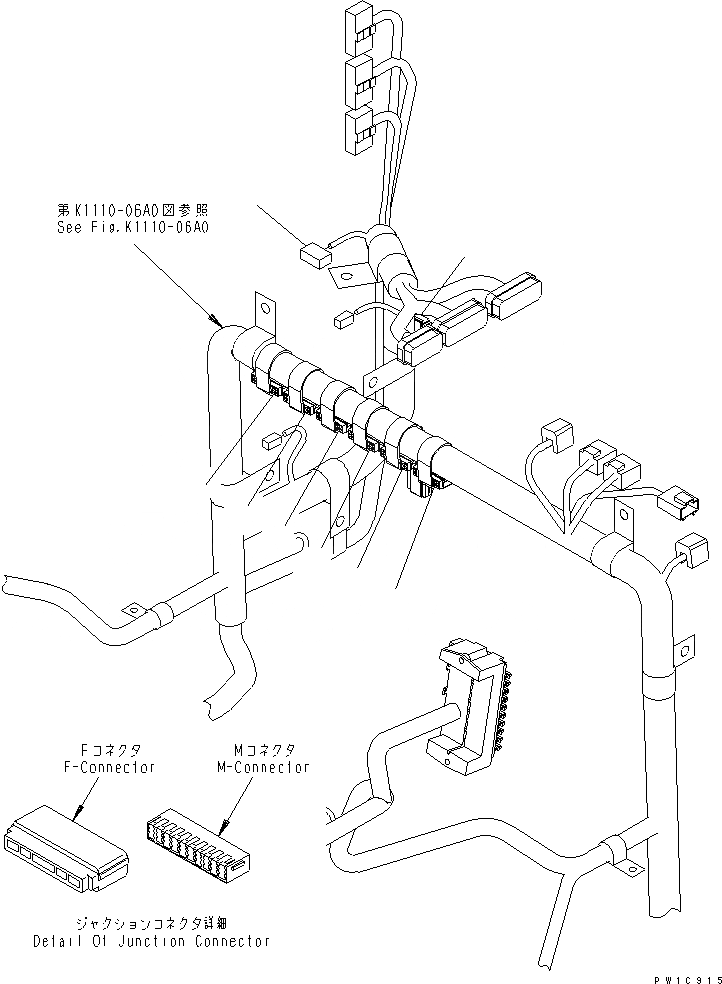

Схема запчастей Komatsu PC200LC-7B - ПРОВОДКА (СОЕДИНЕНИЕ) (ДЛЯ ПОДАЮЩ.) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ
1
2
3
4
5
6
7
8

Артикул

Название

Примечание

Количество

|1

20Y-06-31110

WIRING HARNESS

1

JUNCTION CONNECTOR,BLACK (CN-J01)

|1

HM6400-0012

F-CONNECTOR¤ BLACK

|1

HM6409-0071

M-CONNECTOR¤ BLACK

2

JUNCTION CONNECTOR,BLACK (CN-J02)

|2

HM6400-0012

F-CONNECTOR¤ BLACK

|2

HM6409-0071

M-CONNECTOR¤ BLACK

3

JUNCTION CONNECTOR,ORANGE (CN-J03)

|3

HM6400-0013

F-CONNECTOR¤ GREEN

|3

HM6409-0072

M-CONNECTOR¤ GREEN

4

JUNCTION CONNECTOR,GREEN (CN-J04)

|4

HM6400-0013

F-CONNECTOR¤ GREEN

|4

HM6409-0072

M-CONNECTOR¤ GREEN

5

JUNCTION CONNECTOR,PINK (CN-J05)

|5

HM6440-0129

F-CONNECTOR¤ PINK

|5

HM6440-0128

M-CONNECTOR¤ PINK

6

JUNCTION CONNECTOR,ORANGE (CN-J06)

|6

HM6400-0016

F-CONNECTOR¤ ORANGE

|6

HM6409-0075

M-CONNECTOR¤ ORANGE

7

JUNCTION CONNECTOR,ORANGE (CN-J07)

|7

HM6400-0016

F-CONNECTOR¤ ORANGE

|7

HM6409-0075

M-CONNECTOR¤ ORANGE

8

JUNCTION CONNECTOR,PINK (CN-J08)

|8

HM6440-0129

F-CONNECTOR¤ PINK

|8

HM6440-0128

M-CONNECTOR¤ PINK

Выбрано товаров: 25
