Запчасти Komatsu PC200LC-7 ПРОВОДКА (СОЕДИНЕНИЕ) (ДЛЯ ПОДАЮЩ.) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

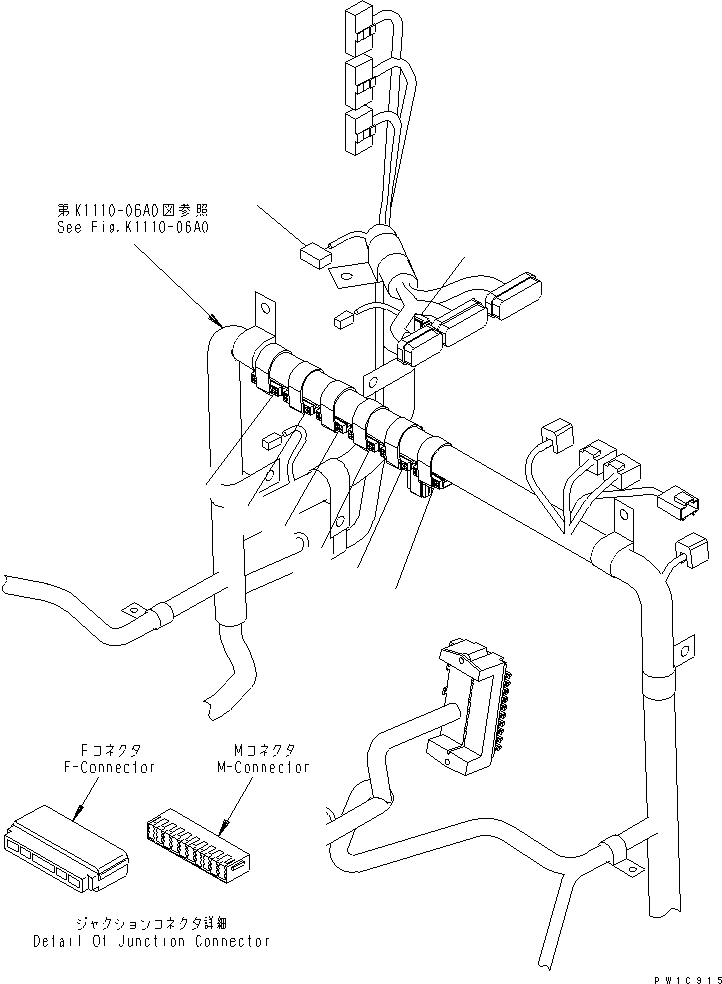

Схема запчастей Komatsu PC200LC-7 - ПРОВОДКА (СОЕДИНЕНИЕ) (ДЛЯ ПОДАЮЩ.) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ
1
2
3
4
5
6
7
8

Артикул

Название

Примечание

Количество

|$0

20Y-06-31110

WIRING HARNESS

1

JUNCTION CONNECTOR,BLACK (CN-J01)

1

HM6400-0012

F-CONNECTOR, BLACK

1

HM6409-0071

M-CONNECTOR, BLACK

2

JUNCTION CONNECTOR,BLACK (CN-J02)

2

HM6400-0012

F-CONNECTOR, BLACK

2

HM6409-0071

M-CONNECTOR, BLACK

3

JUNCTION CONNECTOR,ORANGE (CN-J03)

3

HM6400-0013

F-CONNECTOR, GREEN

3

HM6409-0072

M-CONNECTOR, GREEN

4

JUNCTION CONNECTOR,GREEN (CN-J04)

4

HM6400-0013

F-CONNECTOR, GREEN

4

HM6409-0072

M-CONNECTOR, GREEN

5

JUNCTION CONNECTOR,PINK (CN-J05)

5

HM6440-0129

F-CONNECTOR, PINK

5

HM6440-0128

M-CONNECTOR, PINK

6

JUNCTION CONNECTOR,ORANGE (CN-J06)

6

HM6400-0016

F-CONNECTOR, ORANGE

6

HM6409-0075

M-CONNECTOR, ORANGE

7

JUNCTION CONNECTOR,ORANGE (CN-J07)

7

HM6400-0016

F-CONNECTOR, ORANGE

7

HM6409-0075

M-CONNECTOR, ORANGE

8

JUNCTION CONNECTOR,PINK (CN-J08)

8

HM6440-0129

F-CONNECTOR, PINK

8

HM6440-0128

M-CONNECTOR, PINK

Выбрано товаров: 25
