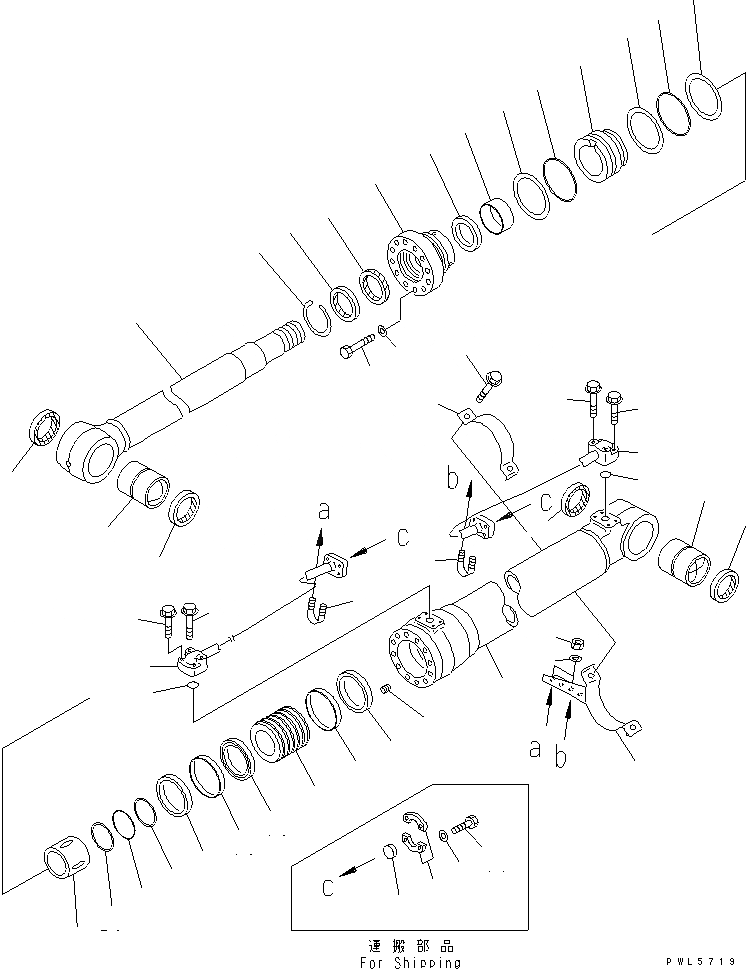

Запчасти Komatsu PC200LC-7-BP ЦИЛИНДР СТРЕЛЫ(СИСТЕМА СМАЗКИ 100 ЧАС.) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

G-1

707-01-XY800

BOOM CYLINDER GROUP,L.H. (FINAL COATING)

G-2

707-01-XY810

BOOM CYLINDER GROUP,R.H. (FINAL COATING)

|1

707-01-0C400

CYLINDER ASS'Y

1

707-13-12260

CYLINDER

2

205-70-71360

BUSHING

3

07145-00070

SEAL,DUST (KIT)

4

707-58-85221

ROD,PISTON

5

707-76-80010

BUSHING

6

07145-00080

SEAL,DUST (KIT)

7

707-27-12921

HEAD,CYLINDER

8

07179-13099

RING,SNAP

9

707-56-85510

SEAL,DUST (KIT)

10

707-52-90610

BUSHING

11

707-51-85030

PACKING,ROD (KIT)

12

07000-15110

O-RING (KIT)

13

707-35-91220

RING,BACK-UP (KIT)

14

707-51-85640

RING,BUFFER (KIT)

15

01010-81670

BOLT

16

01643-51645

WASHER

17

707-36-12851

PISTON

18

707-44-12180

RING,PISTON (KIT)

19

707-39-12140

RING,WEAR (KIT)

20

707-44-12911

RING

21

707-71-70800

PLUNGER

22

07000-15075

O-RING (KIT)

23

707-35-90930

RING,BACK-UP (KIT)

24

01310-01216

SCREW

25

707-71-34621

COLLAR

26

707-35-91220

RING,BACK-UP (KIT)

27

07000-15110

O-RING (KIT)

28

707-86-66250

TUBE,L.H.

|28

707-86-66260

TUBE,R.H.

29

20Y-62-24580

TUBE,L.H.

|29

20Y-62-24610

TUBE,R.H.

30

01435-01055

BOLT

31

01435-01040

BOLT

32

07000-13030

O-RING (KIT)

33

707-88-22550

BRACKET,L.H.

|33

707-88-22560

BRACKET,R.H.

34

707-88-21251

BAND

35

01435-01030

BOLT

36

07283-22738

CLIP

37

01599-01011

NUT

38

01643-31032

WASHER

39

707-88-33030

HEAD

40

07371-30640

FLANGE,SPLIT

41

07372-21035

BOLT

42

01643-51032

WASHER

|K

707-99-46130

SERVICE KIT
