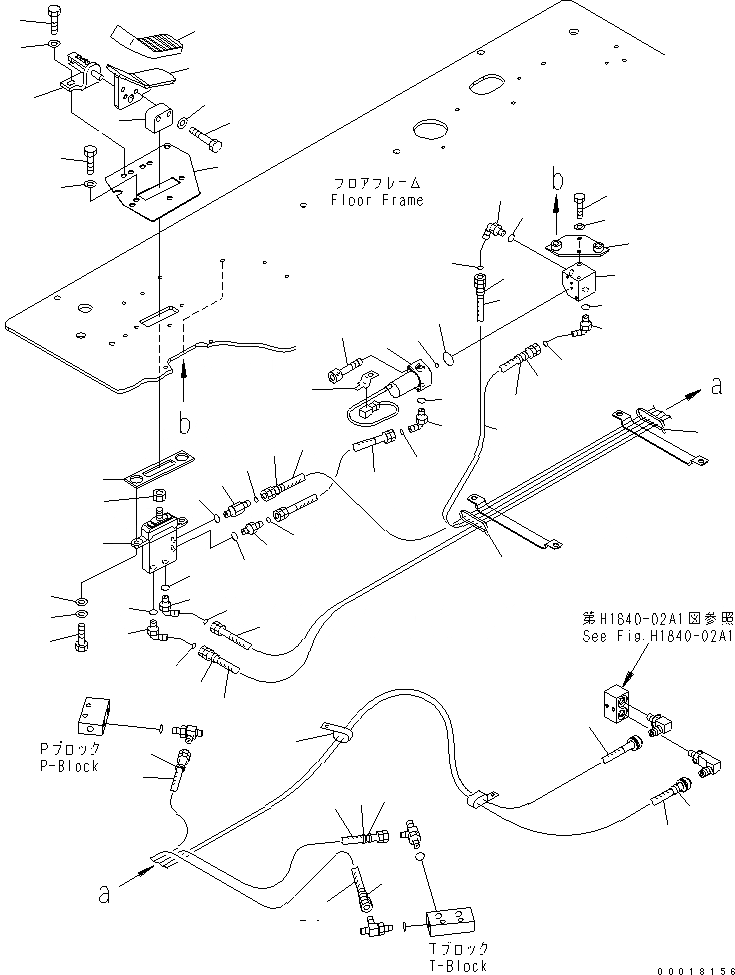

Запчасти Komatsu PC200LC-7-BP ОСНОВН. КОНСТРУКЦИЯ (КАБИНА) (УПРАВЛ. НАВЕСН. ОБОРУД.) ( АКТУАТОР)(№-) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

1

702-16-01230

PILOT VALVE

2

22U-54-25660

SEAL

3

22U-43-21470

SEAT

4

01010-81025

BOLT

5

01643-31032

WASHER

6

01643-31032

WASHER

7

20Y-62-25360

BRACKET

8

01010-D1025

BOLT

9

01643-71032

WASHER

10

20Y-43-31220

PEDAL

11

01010-D1045

BOLT

12

01643-71032

WASHER

13

22U-54-25541

PLATE

14

01010-81020

BOLT

15

01643-31032

WASHER

16

22U-54-25670

CAP

17

21W-62-43980

ELBOW

18

02896-11008

O-RING

19

07000-12011

O-RING

20

20Y-62-43470

NIPPLE

21

02896-11008

O-RING

22

11Y-62-12140

NIPPLE

23

02896-11008

O-RING

24

07000-12011

O-RING

25

02760-00211

HOSE

26

02760-00212

HOSE

27

20Y-62-43490

HOSE¤ 2400MM

28

20Y-62-43510

HOSE¤ 2350MM

29

20Y-62-22790

BAND¤ RED

30

20Y-62-22810

BAND¤ YELLOW

31

20Y-62-22820

BAND¤ BLUE

32

20Y-62-22830

BAND¤ WHITE

33

08034-00519

BAND

34

21W-62-42240

HOSE

35

04435-51210

CLIP

36

01583-51408

NUT

37

702-21-07010

VALVE ASS'Y

38

203-60-62220

BOLT

39

700-93-11320

O-RING

40

07000-12011

O-RING

41

20Y-62-43410

BLOCK

42

01010-80820

BOLT

43

01643-30823

WASHER

44

20Y-62-43420

BRACKET

45

11Y-62-12160

ELBOW

46

02896-11008

O-RING

47

07002-11423

O-RING

48

21W-62-43960

ELBOW

49

02896-11008

O-RING

50

07002-11423

O-RING

51

08053-01510

CLIP
