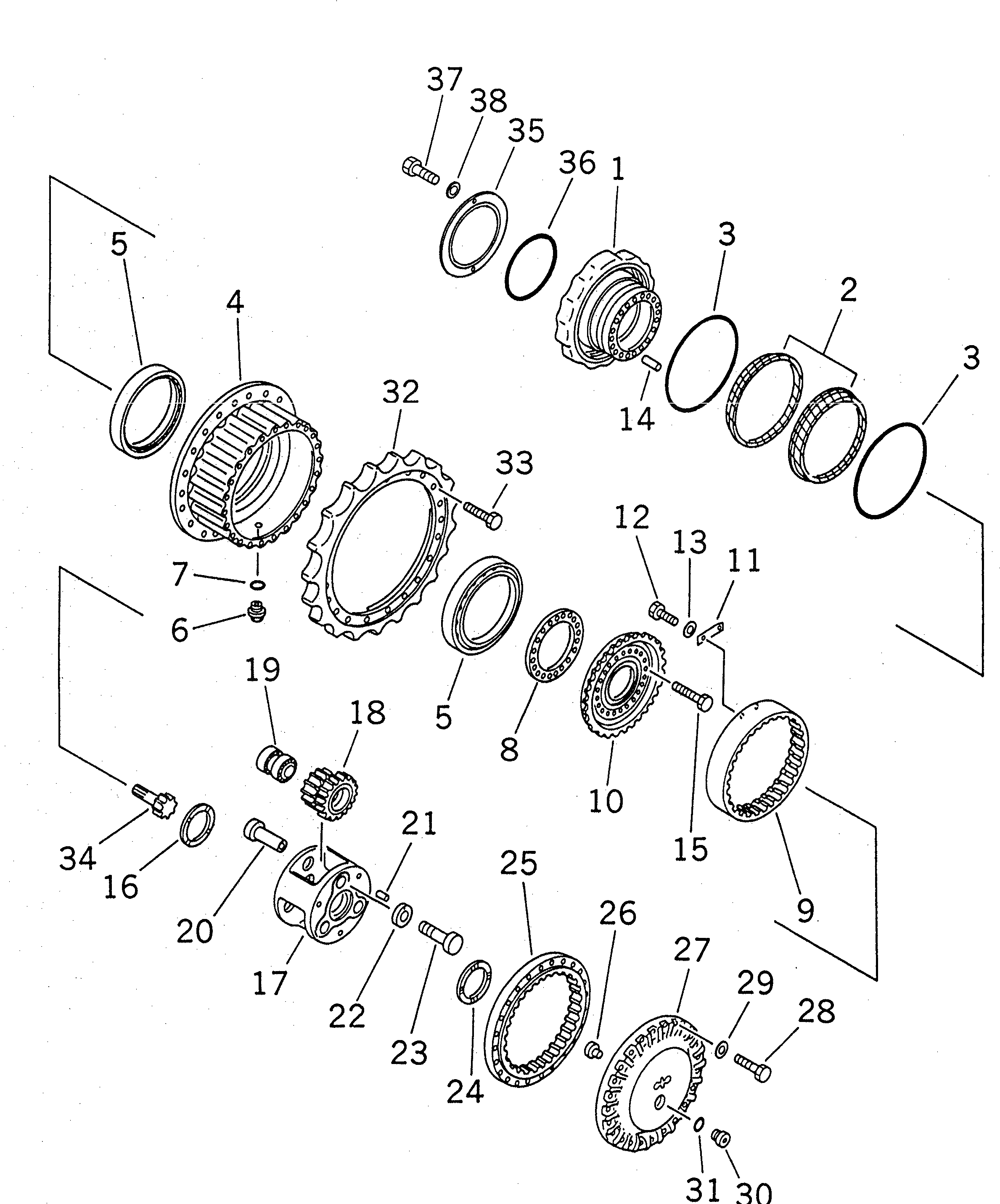

Запчасти Komatsu PC200LC-6Z КОНЕЧНАЯ ПЕРЕДАЧА (СКОРОСТЬ ДВИЖЕНИЯ 1) (ПОСТАВЛЯЕТСЯ ОТДЕЛЬНО)(№89-98) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|$1

205-27-00089

FINAL DRIVE ASS'Y,F/SUPPLY200-3

1

205-27-71481

SHAFT

|$4

150-27-00029

FLOATING SEAL ASS'Y

2

RING

3

O-RING

4

205-27-71471

HUB

5

20Y-27-11570

BEARING

6

07044-12412

PLUG

7

07002-02434

O-RING

8

20Y-27-11310

SPACER, 4.85MM

8

20Y-27-11320

SPACER, 4.90MM,(ADJUSTMENT SPACER)

8

20Y-27-11330

SPACER, 4.95MM,(ADJUSTMENT SPACER)

8

20Y-27-11340

SPACER, 5.00MM,(ADJUSTMENT SPACER)

8

20Y-27-11350

SPACER, 5.05MM,(ADJUSTMENT SPACER)

8

20Y-27-11360

SPACER, 5.10MM,(ADJUSTMENT SPACER)

9

205-27-71531

GEAR

10

205-27-71630

GEAR

11

205-27-71610

PLATE

12

01010-50820

BOLT

13

01643-50823

WASHER

14

04020-01842

PIN

15

205-27-71680

BOLT

16

20Y-27-11250

SPACER

17

205-27-71510

CARRIER

18

205-27-00070

PLANETARY GEAR A.

18

GEAR

19

205-27-71560

BEARING

20

205-27-71582

PIN

21

04020-00616

PIN

22

205-27-71592

COLLAR

23

01010-51465

BOLT

24

20Y-27-11250

SPACER

25

205-27-71520

GEAR

26

205-27-71360

BUTTON

27

205-27-71492

COVER

28

01010-51685

BOLT

29

01643-31645

WASHER

30

07040-12414

PLUG

31

07002-02434

O-RING

32

205-27-71281

SPROCKET

33

205-27-71670

BOLT

34

205-27-71550

GEAR

35

21P-98-11930

COVER

36

07000-05210

O-RING

37

01010-51630

BOLT

38

01643-31645

WASHER
