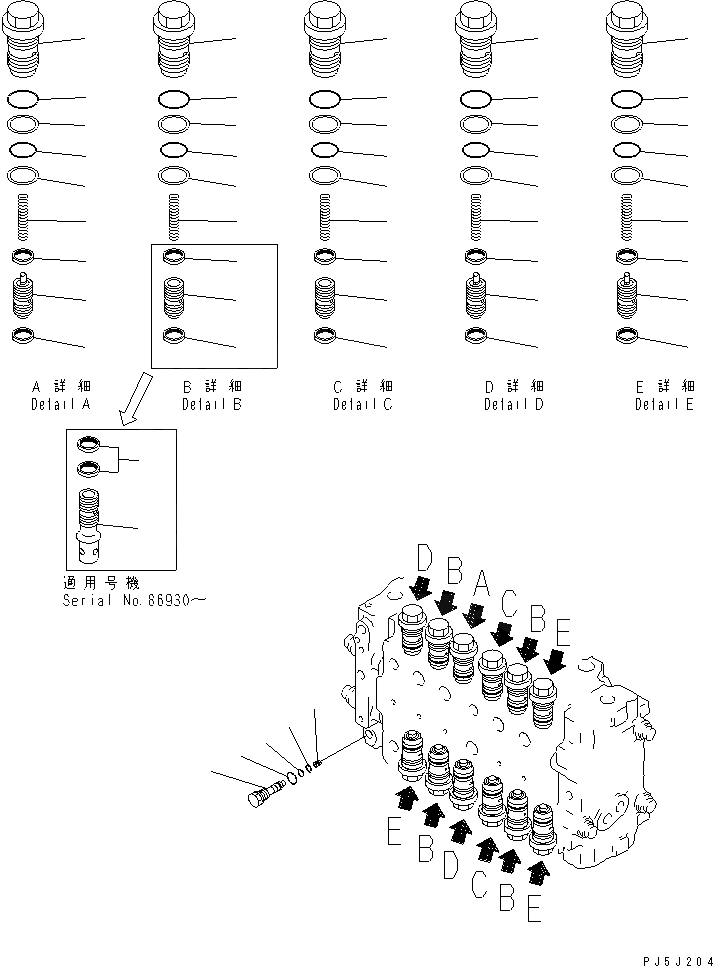

Запчасти Komatsu PC200LC-6Z ОСНОВН. КЛАПАН (/9) (СЦЕПНОЕ УСТРОЙСТВО СДВИГ. ВВЕРХ СПЕЦ-Я.)(№8-9998) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|$2

723-46-11501

VALVE ASS'Y

|$3

723-46-11500

VALVE ASS'Y

|$5

723-46-40100

VALVE ASS'Y

1

SLEEVE

2

PISTON SUB ASS'Y

3

SPRING

4

SEAL

5

700-93-11320

O-RING

6

723-46-41950

RING

7

07002-13634

O-RING

|$13

723-46-42500

VALVE ASS'Y

|$14

723-46-40300

VALVE ASS'Y

8

SLEEVE

8

SLEEVE

9

VALVE

9

PISTON

10

SPRING

11

SEAL

11

SEAL

12

700-93-11320

O-RING

13

723-46-41950

RING

14

07002-13634

O-RING

|$25

723-46-41100

VALVE ASS'Y

15

SLEEVE

16

PISTON SUB ASS'Y

17

SPRING

18

SEAL

19

700-93-11320

O-RING

20

723-46-41950

RING

21

07002-13634

O-RING

|$33

723-46-15100

PLUG ASS'Y

22

PLUG

23

SCREW

24

07002-11423

O-RING

25

07000-11007

O-RING

26

07001-01007

RING,BACK-UP

|$39

723-46-46101

VALVE ASS'Y

27

SLEEVE

28

PISTON SUB ASS'Y

29

SPRING

30

SEAL

31

700-93-11320

O-RING

32

723-46-41950

RING

33

07002-13634

O-RING

|$47

723-46-45100

VALVE ASS'Y

34

SLEEVE

35

PISTON SUB ASS'Y

36

SPRING

37

SEAL

38

700-93-11320

O-RING

39

723-46-41950

RING

40

07002-13634

O-RING
