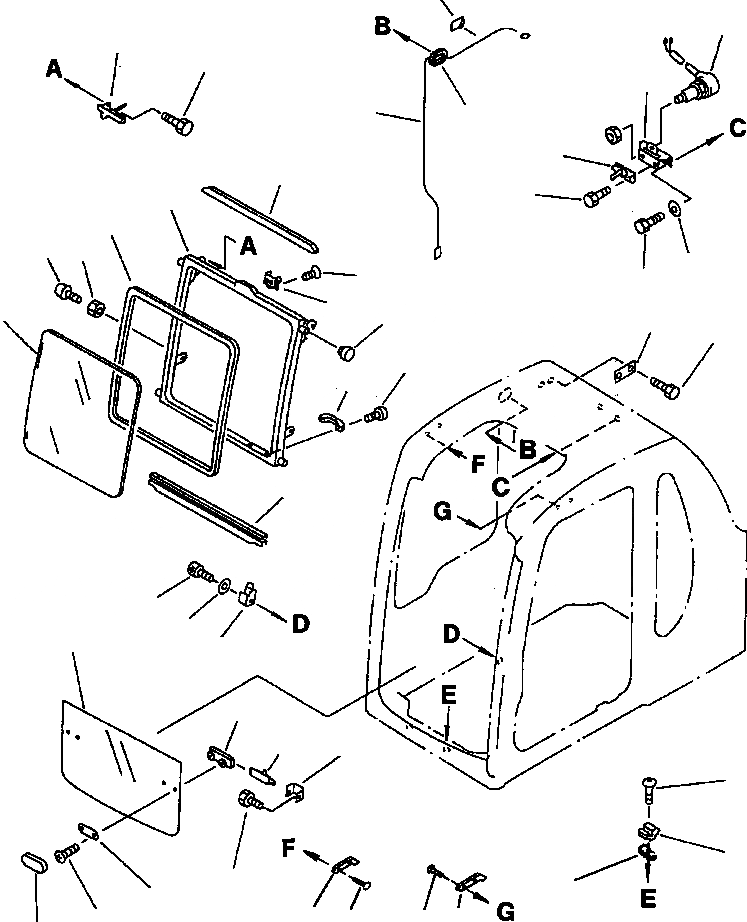

Запчасти Komatsu PC200LC-6LE FIG. K-A КАБИНА - ПЕРЕДН. ОКНА КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

|$0

20Y-54-36703

FRONT WINDOW ASSEMBLY

1

20Y-54-36713

WINDOW

2

20Y-54-38122

GLASS

3

20Y-54-38132

WEATHER STRIP

4

20Y-54-38142

SEAL

5

20Y-54-38152

SEAL

6

20T-54-75270

LATCH ASSEMBLY, LEFT HAND

7

20T-54-75280

LATCH ASSEMBLY, RIGHT HAND

8

01435-30816

BOLT

9

20Y-54-14290

STOPPER

10

01580-11008

NUT

11

20Y-54-14590

HANDLE

12

01023-10616

SCREW

13

20Y-54-14310

STRIKER

14

20Y-54-14280

SCREW

15

20Y-54-37810

STOPPER, LEFT HAND

16

01023-70416

SCREW

17

20Y-54-37820

STOPPER, RIGHT HAND

18

01023-70416

SCREW

19

20Y-54-36834

BLOCK, LEFT HAND

20

20Y-54-36844

BLOCK, RIGHT HAND

21

01252-50635

BOLT

22

01641-50608

WASHER

23

20Y-54-39152

ROLLER

24

205-54-63310

LOCK ASSEMBLY

25

01435-30820

BOLT

26

20Y-54-39363

BRACKET

27

01435-30820

BOLT

28

154-61-16570

WASHER

29

08074-40000

SWITCH

30

20Y-54-39590

WIRING HARNESS

31

20Y-54-36150

GROMMET

32

08051-00801

CLIP

33

20Y-54-14721

LOCK

34

01435-30820

BOLT

|$34

20Y-54-36103

LOWER WINDOW ASSEMBLY

35

20Y-54-36122

LATCH ASSEMBLY, LEFT HAND

36

20Y-54-36132

LATCH ASSEMBLY, RIGHT HAND

37

20Y-54-36142

PLATE

38

20Y-54-36191

GROMMET

39

01225-70612

SCREW

40

20Y-54-36211

COVER

41

20Y-54-36113

GLASS

42

20Y-54-36171

SEAT

43

20Y-54-36230

SHIM

44

01370-00620

SCREW

45

20Y-54-36182

STOPPER

46

01435-30820

BOLT
