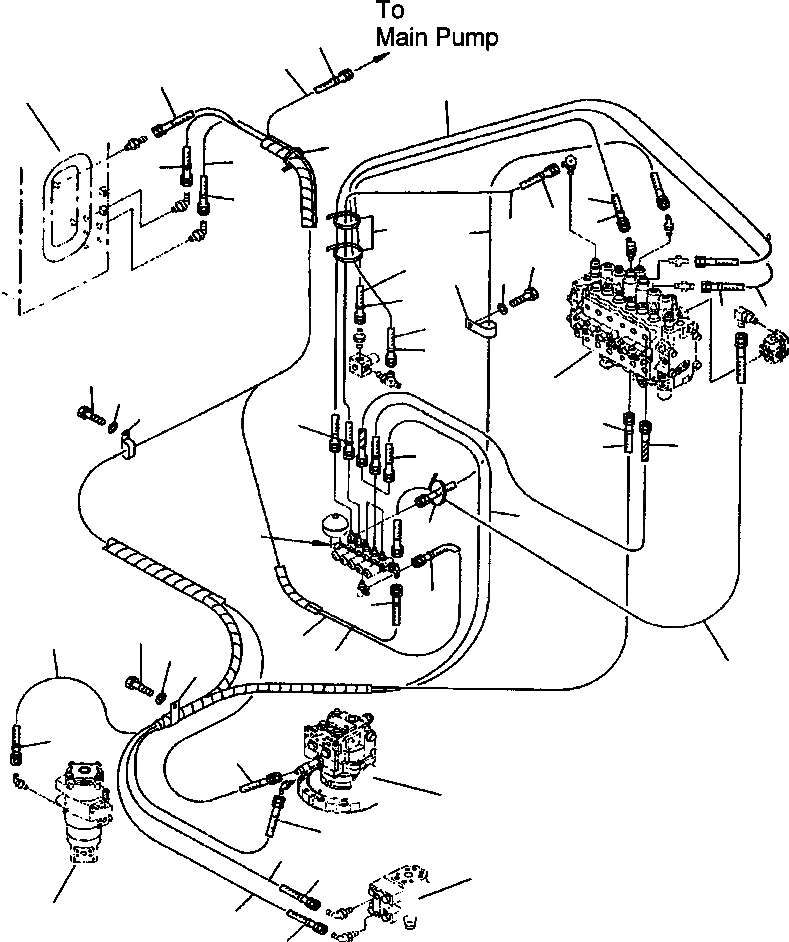

Запчасти Komatsu PC200LC-6LE FIG. H8-A ГИДРОЛИНИЯ - СОЛЕНОИДНЫЙ КЛАПАН ЛИНИЯ ГИДРАВЛИКА

|$0

20Y-62-27581

HOSE ASSEMBLY

1

08034-20536

BAND

2

203-62-52310

HOSE, 700 MM

3

20Y-62-22860

BAND, BROWN

4

203-62-52350

HOSE, 1200 MM

5

203-62-52270

HOSE, 1400 MM

6

20Y-62-22850

BAND, GREEN

7

203-62-52290

HOSE, 1100 MM

8

20Y-62-22810

BAND, YELLOW

|$9

20Y-62-27570

HOSE ASSEMBLY

9

203-62-52260

HOSE, 1300 MM

10

20Y-62-22810

BAND, YELLOW

11

203-62-52290

HOSE, 1100 MM

12

20Y-62-22951

HOSE

13

20Y-62-22790

BAND, RED

14

20Y-62-22920

HOSE, 2000 MM

15

20Y-62-22820

BAND, BLUE

16

07102-20517

HOSE

17

20Y-62-22981

HOSE, 600 MM

18

20Y-62-21930

HOSE, 980 MM

19

04434-51312

CLIP

20

01010-81225

BOLT

21

01643-31232

WASHER

22

04434-53212

CLIP

23

01010-81230

BOLT

24

01643-31232

WASHER

25

141-06-11220

CLIP

26

01010-81225

BOLT

27

01643-31232

WASHER

28

08034-20519

BAND

|$30

20Y-62-27361

HOSE ASSEMBLY

29

22T-61-11650

HOSE

30

20Y-62-22910

HOSE, 1050 MM

31

20Y-62-22810

BAND, YELLOW

32

20Y-62-22820

BAND, BLUE

33

08034-20519

BAND

34

20Y-62-21890

HOSE, 830 MM
