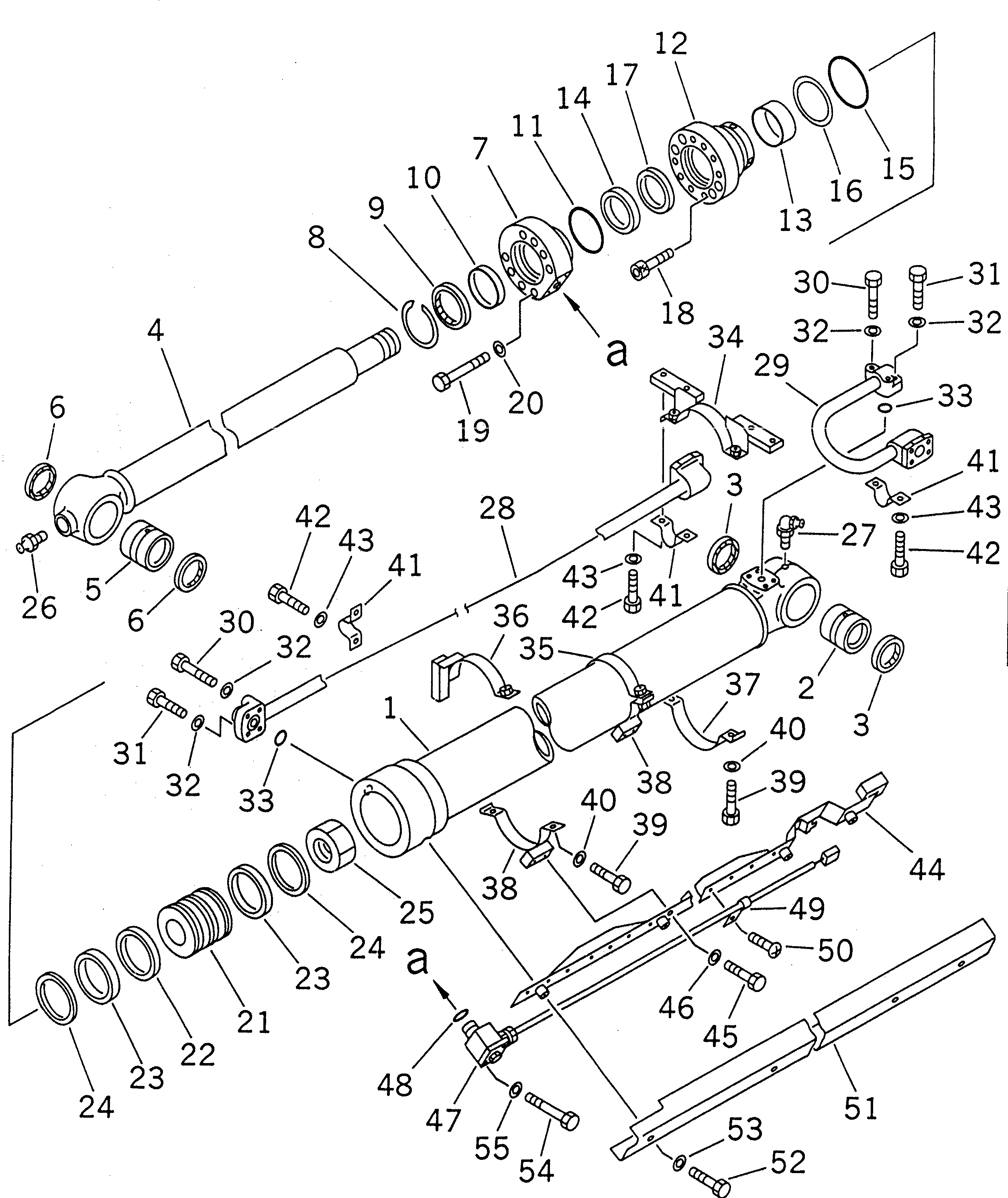

Запчасти Komatsu PC200LC-6H ЦИЛИНДР КОВША (ДЛЯ .M РУКОЯТЬ И .9M РУКОЯТЬ) (С ДАТЧИКОМ) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

G-1

205-63-X7132

BUCKET CYLINDER G.

|$5

205-63-07132

CYLINDER ASS'Y

1

20Y-63-72141

CYLINDER

2

707-76-70110

BUSHING

3

07145-00070

SEAL,DUST (KIT)

4

20Y-63-72120

ROD,PISTON

5

707-76-70120

BUSHING

6

21K-70-12180

SEAL,DUST (KIT)

7

707-27-11890

HEAD

8

07179-13094

RING,SNAP

9

195-63-92190

SEAL,DUST (KIT)

10

07177-08015

BUSHING

11

07000-02095

O-RING (KIT)

12

707-27-11790

HEAD,CYLINDER

13

707-52-90550

BUSHING

14

707-51-80030

PACKING,ROD (KIT)

15

07000-15110

O-RING (KIT)

16

07001-05110

RING,BACK-UP (KIT)

17

707-51-80630

RING,BUFFER (KIT)

18

01252-31650

BOLT

19

01011-81615

BOLT

20

01643-51645

WASHER

21

707-36-11510

PISTON

22

707-44-11280

RING,PISTON (KIT)

23

707-39-11510

RING,WEAR (KIT)

24

707-44-11920

RING

25

07165-15860

NUT

26

07020-00000

FITTING,GREASE

27

07020-00900

FITTING,GREASE

28

20Y-63-72170

TUBE

29

20Y-63-72180

TUBE

30

07372-21060

BOLT

31

07372-21045

BOLT

32

01643-51032

WASHER

33

07000-13030

O-RING (KIT)

34

20Y-63-72160

BRACKET

35

707-88-95360

BAND

36

707-88-95370

BRACKET

37

707-88-95350

BAND

38

20Y-63-72151

BRACKET

39

01010-51035

BOLT

40

01643-51032

WASHER

41

07282-02793

CLAMP

42

01010-51020

BOLT

43

01643-31032

WASHER

44

20Y-63-72213

PLATE

45

01010-51020

BOLT

46

01643-31032

WASHER

47

7861-92-6102

SENSOR

48

07000-03025

O-RING (KIT)

49

7821-20-3230

CLIP

50

01220-30410

SCREW

51

20Y-63-72230

PLATE

52

01010-51055

BOLT

53

01643-31032

WASHER

54

01252-30865

BOLT

55

01643-50823

WASHER
