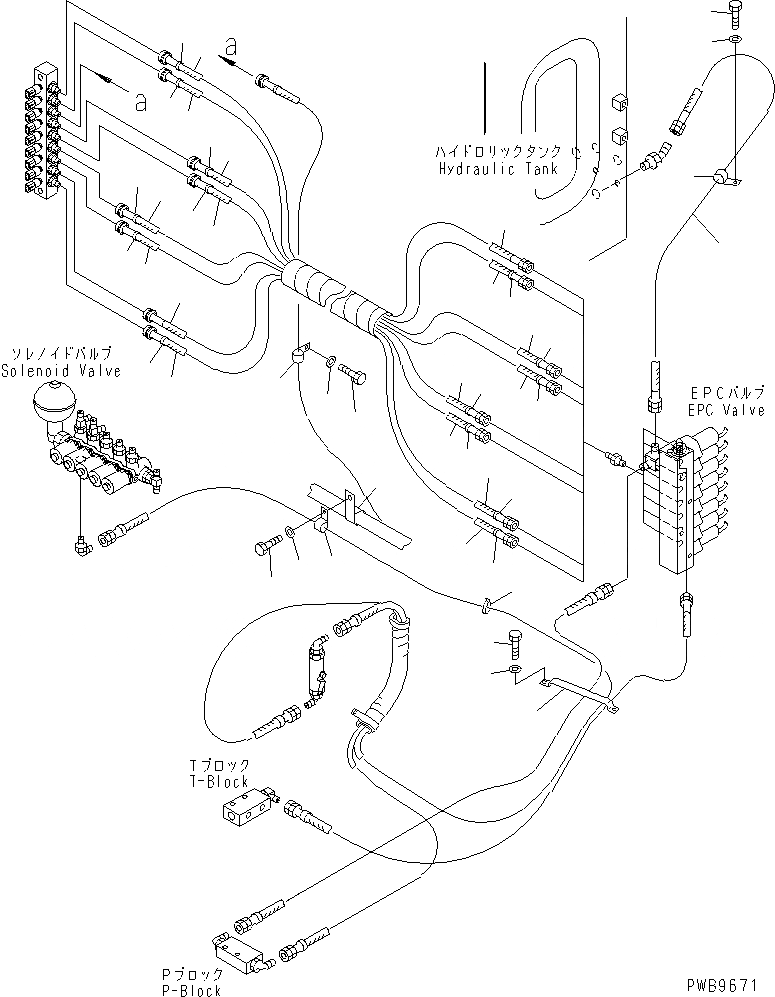

Запчасти Komatsu PC200LC-6H РАБОЧАЯ ЛИНИЯ PPC (ЛИНИЯ КЛАПАНА EPC) (EPC)(№9-) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

1

20Y-62-22772

HOSE, 700MM

2

20Y-62-22790

BAND, RED

3

20Y-62-23832

HOSE, 800MM

4

20Y-62-22810

BAND, YELLOW

5

20Y-62-23832

HOSE, 800MM

6

20Y-62-22820

BAND, BLUE

7

20Y-62-22782

HOSE, 650MM

8

20Y-62-22830

BAND, WHITE

9

20Y-62-22782

HOSE, 650MM

10

20Y-62-22840

BAND, BLACK

11

20Y-62-22772

HOSE, 700MM

12

20Y-62-22850

BAND, GREEN

13

20Y-62-22722

HOSE, 535MM

14

20Y-62-22860

BAND, BROWN

15

20Y-62-22722

HOSE, 535MM

16

07102-20319

HOSE

17

20Y-62-22291

CLAMP

18

01010-81230

BOLT

19

01643-31232

WASHER

20

08036-01414

CLIP

21

08036-02514

CLIP

22

01010-81230

BOLT

23

01643-31232

WASHER

24

08036-01414

CLIP

25

01010-81225

BOLT

26

01643-31232

WASHER

27

08034-00519

BAND

28

04434-51312

CLIP

29

01010-81225

BOLT

30

01643-31232

WASHER
