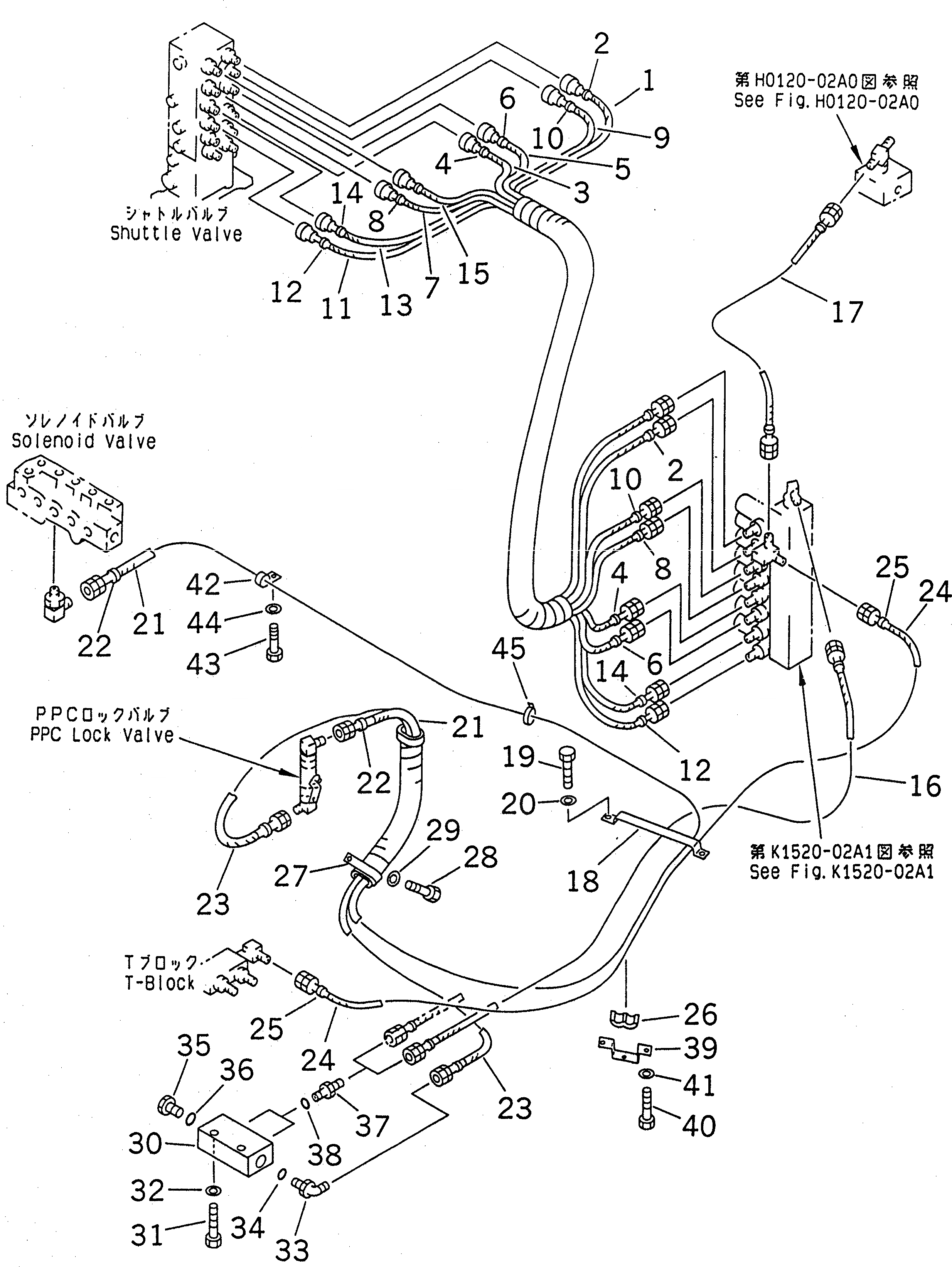

Запчасти Komatsu PC200LC-6H РАБОЧАЯ ЛИНИЯ PPC (ЛИНИЯ КЛАПАНА EPC) (EPC)(№8-899) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ
№
Артикул
Название
Примечание
Количество
1
20Y-62-23830
HOSE
1
20Y-62-22590
HOSE
2
20Y-62-22790
BAND, RED
3
20Y-62-23830
HOSE
3
20Y-62-22590
HOSE
4
20Y-62-22810
BAND, YELLOW
5
20Y-62-23830
HOSE
5
20Y-62-22590
HOSE
6
20Y-62-22820
BAND, BLUE
7
20Y-62-23830
HOSE
7
20Y-62-22590
HOSE
8
20Y-62-22830
BAND, WHITE
9
20Y-62-23830
HOSE
9
20Y-62-22590
HOSE
10
20Y-62-22840
BAND, BLACK
11
20Y-62-23830
HOSE
11
20Y-62-22590
HOSE
12
20Y-62-22850
BAND, GREEN
13
20Y-62-23830
HOSE
13
20Y-62-22590
HOSE
14
20Y-62-22860
BAND, BROWN
15
20Y-62-23830
HOSE
15
20Y-62-22590
HOSE
16
20Y-62-23510
HOSE, 1200MM
17
20Y-62-23490
HOSE
18
20Y-62-22291
CLAMP
19
01010-51230
BOLT
20
01643-31232
WASHER
21
20Y-62-22890
HOSE, 2950MM
22
20Y-62-22790
BAND, RED
23
20Y-62-22910
HOSE, 1050MM
24
20Y-62-23480
HOSE, 1450MM
25
20Y-62-22820
BAND, BLUE
26
20Y-62-22190
CLAMP
27
04435-51608
CLIP
28
01010-50816
BOLT
29
01643-30823
WASHER
30
20Y-62-22151
BLOCK
31
01010-51050
BOLT
32
01643-31032
WASHER
33
07235-10315
ELBOW
34
07002-02034
O-RING
35
07040-11409
PLUG
36
07002-01423
O-RING
37
205-62-55270
NIPPLE
38
07002-01423
O-RING
39
20Y-62-22210
BRACKET
40
01010-51016
BOLT
41
01643-31032
WASHER
42
08036-01414
CLIP
42
08036-01414
CLIP
43
01010-51230
BOLT
43
01010-51230
BOLT
44
01643-31232
WASHER
44
01643-31232
WASHER
45
08034-00519
BAND
Выбрано товаров: 56
