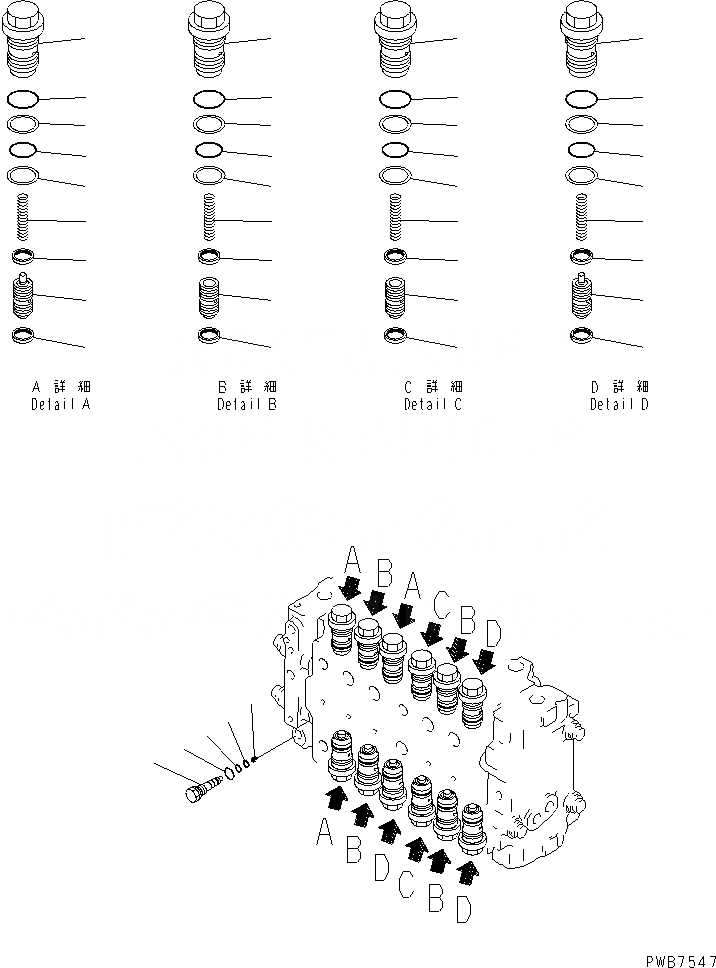

Запчасти Komatsu PC200LC-6H ОСНОВН. КЛАПАН (/9)(№8-87999) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ
№
Артикул
Название
Примечание
Количество
|1
723-46-10200
VALVE ASS'Y
|1
723-46-10107
VALVE ASS'Y
|1
723-46-10105
VALVE ASS'Y
|1
723-46-10103
VALVE ASS'Y
|1
723-46-40100
VALVE ASS'Y
1
SLEEVE
2
PISTON SUB ASS'Y
3
SPRING
4
SEAL
5
700-93-11320
O-RING
6
723-46-41950
RING
7
07002-13634
O-RING
|8
723-46-40300
VALVE ASS'Y
8
SLEEVE
9
PISTON
10
SPRING
11
SEAL
12
700-93-11320
O-RING
13
723-46-41950
RING
14
07002-13634
O-RING
|15
723-46-40200
VALVE ASS'Y
|15
723-46-40400
VALVE ASS'Y
15
SLEEVE
16
PISTON SUB ASS'Y
|16
PISTON
17
SPRING
18
SEAL
19
700-93-11320
O-RING
20
723-46-41950
RING
21
07002-13634
O-RING
|22
723-46-41100
VALVE ASS'Y
22
SLEEVE
23
PISTON SUB ASS'Y
24
SPRING
25
SEAL
26
700-93-11320
O-RING
27
723-46-41950
RING
28
07002-13634
O-RING
|29
723-46-15100
PLUG ASS'Y
29
PLUG
30
SCREW
31
07002-11423
O-RING
32
07000-11007
O-RING
33
07001-01007
RING,BACK-UP
Выбрано товаров: 44
