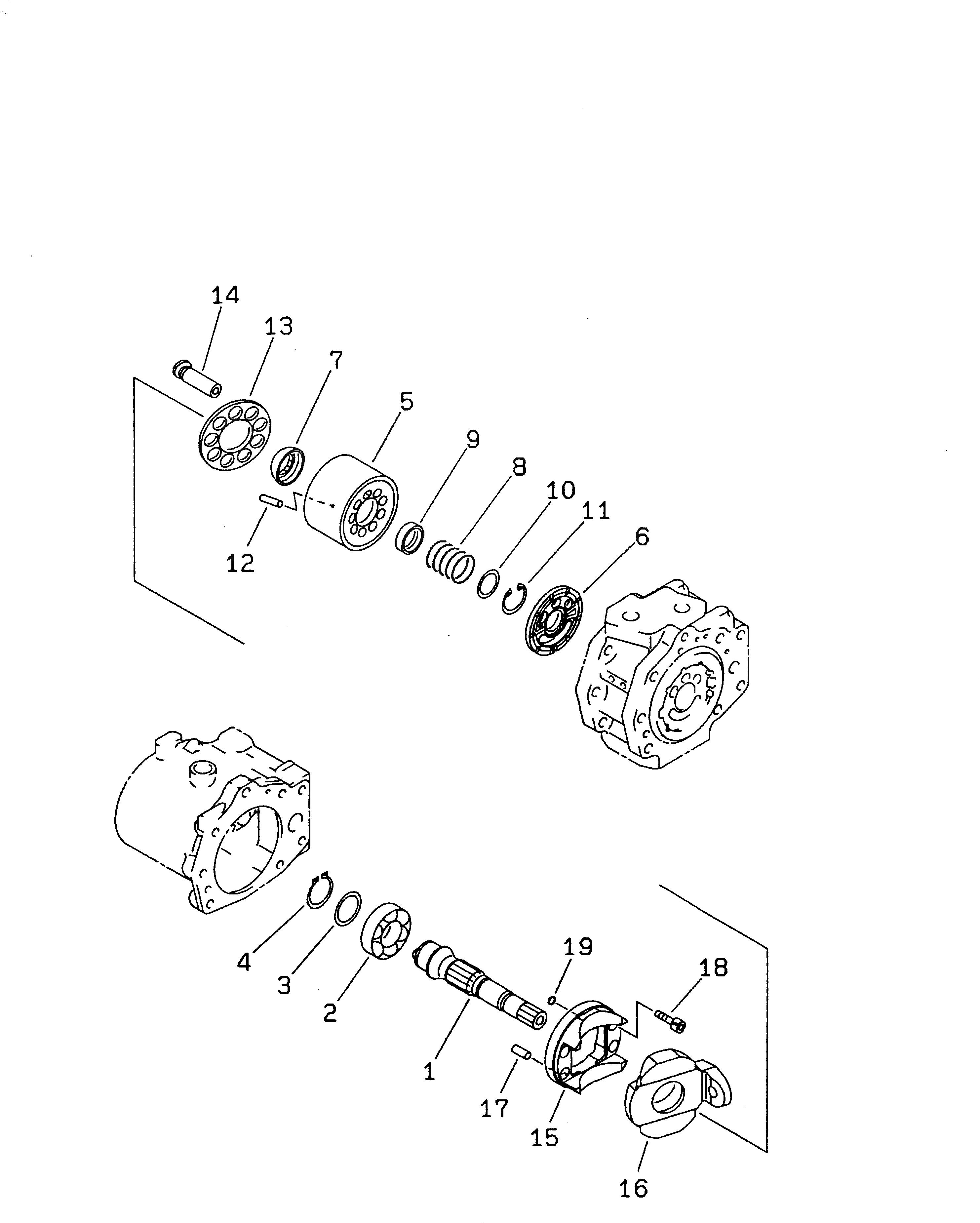

Запчасти Komatsu PC200LC-6H ОСНОВН. НАСОС (/9)(№8-9998) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

708-2L-00151

PUMP ASS'Y

|1

708-2L-00056

PUMP ASS'Y

|1

708-2L-00054

PUMP ASS'Y

|1

708-2L-00053

PUMP ASS'Y

|1

708-2L-00052

PUMP ASS'Y

|1

708-2L-01053

PUMP SUB ASS'Y

|1

708-2L-01052

PUMP SUB ASS'Y

1

708-2L-32120

SHAFT,REAR

|1

708-2L-22122

SHAFT,REAR

2

708-2L-32150

BEARING

3

708-2E-05040

WASHER KIT

|3

WASHER¤ 3.1MM

|3

WASHER¤ 3.0MM

|3

WASHER¤ 2.9MM

|3

WASHER¤ 2.8MM

4

708-25-12790

RING,SNAP

|5

708-2L-04151

BLOCK ASS'Y,REAR

|5

708-2L-04050

BLOCK ASS'Y,REAR

5

BLOCK,CYLINDER

|5

BLOCK,CYLINDER

6

PLATE,VALVE

|6

PLATE,VALVE

7

708-2L-23351

GUIDE,RETAINER

8

708-2L-33160

SPRING

|8

708-2L-23151

SPRING

9

708-2L-23131

SEAT

10

708-7L-13140

SEAT

11

04065-04818

RING

12

708-2L-23360

PIN

13

708-2L-33340

RETAINER,SHOE

|13

708-2L-23340

RETAINER,SHOE

14

708-2L-33310

PISTON SUB ASS'Y

|14

708-2L-23313

PISTON SUB ASS'Y

|15

708-2L-04061

CRADLE ASS'Y

15

CRADLE

16

CAM,ROCKER

17

04020-01228

PIN

18

01252-61230

BOLT

19

07000-B1009

O-RING
