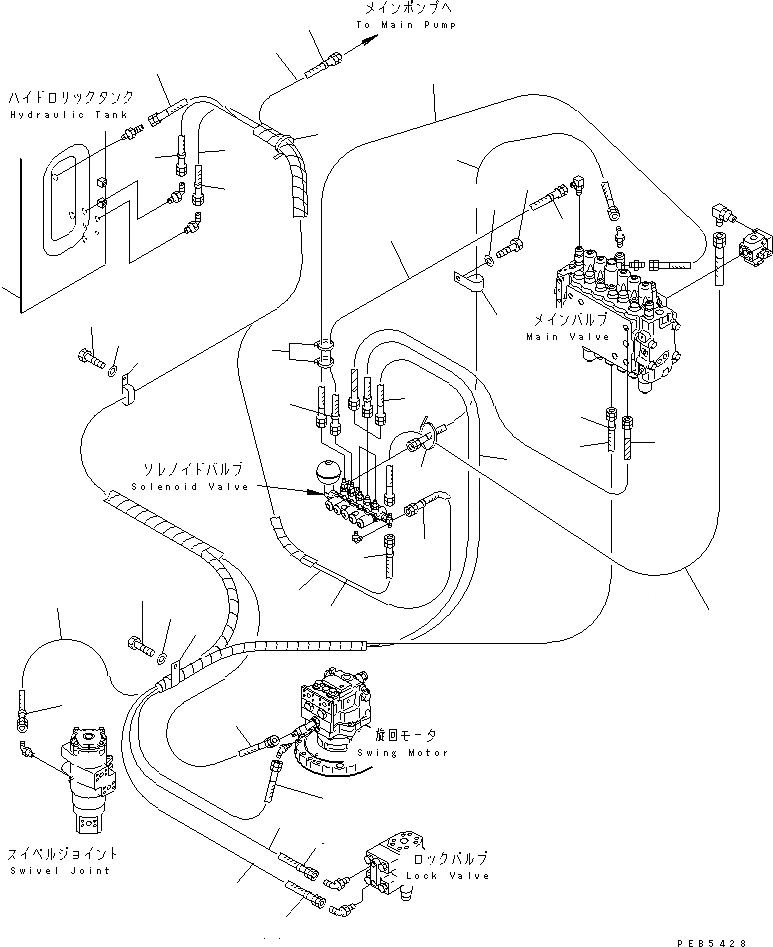

Запчасти Komatsu PC200LC-6H СОЛЕНОИДНЫЙ КЛАПАН (SOLINOID КЛАПАН ЛИНИЯ)(№9-8) ГИДРАВЛИКА

1

08034-00536

BAND

2

203-62-52310

HOSE¤ 700MM

3

20Y-62-22860

BAND¤ BROWN

4

203-62-52350

HOSE¤ 1200MM

5

203-62-52260

HOSE¤ 1300MM

6

20Y-62-22810

BAND¤ YELLOW

7

203-62-52290

HOSE¤ 1100MM

8

20Y-62-22951

HOSE

9

20Y-62-22790

BAND¤ RED

10

20Y-62-22920

HOSE¤ 2000MM

11

20Y-62-22820

BAND¤ BLUE

12

07102-20517

HOSE

13

20Y-62-22981

HOSE¤ 600MM

14

20Y-62-21930

HOSE¤ 980MM

15

04434-51312

CLIP

16

01010-81225

BOLT

17

01643-31232

WASHER

18

04434-53212

CLIP

19

01010-81230

BOLT

20

01643-31232

WASHER

21

141-06-11220

CLIP

22

01010-81225

BOLT

23

01643-31232

WASHER

24

08034-00519

BAND

25

22T-61-11650

HOSE

26

20Y-62-22910

HOSE¤ 1050MM

27

20Y-62-22810

BAND¤ YELLOW

28

20Y-62-22820

BAND¤ BLUE

29

08034-00519

BAND

30

20Y-62-21890

HOSE¤ 830MM
