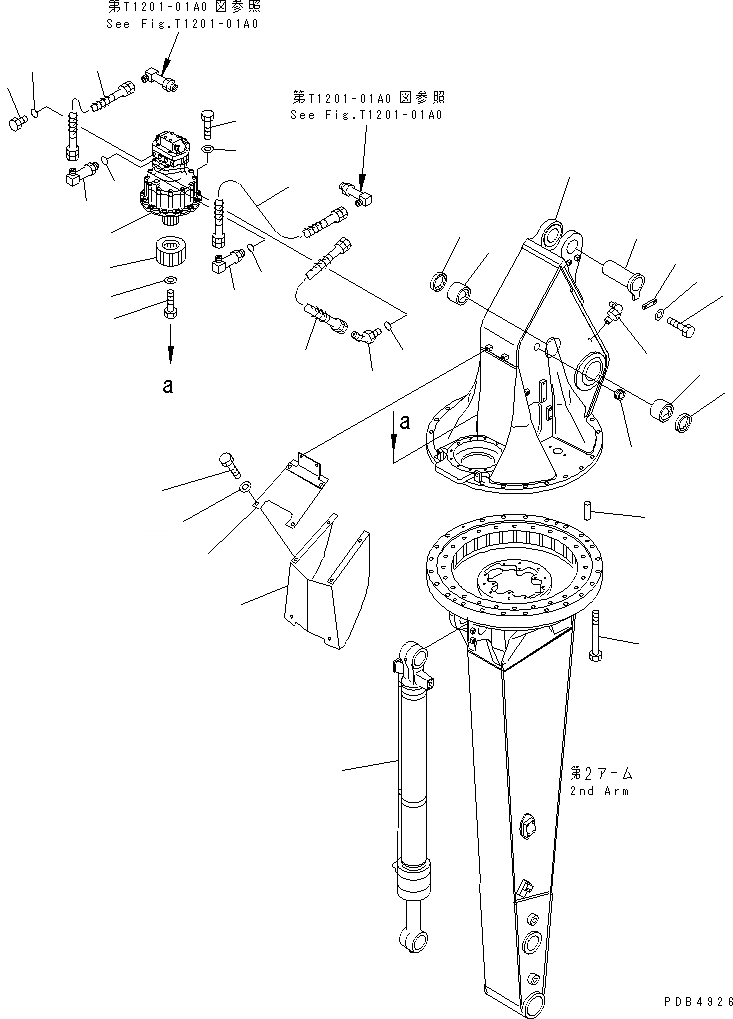

Запчасти Komatsu PC200LC-6 ROTATION РУКОЯТЬ (.9M) (ПЕРВ. РУКОЯТЬ)(№9-) РАБОЧЕЕ ОБОРУДОВАНИЕ

|$5

20Y-966-0022

ARM ASS'Y

|$6

20Y-966-0021

ARM A,(1ST ARM)

|$7

20Y-966-0020

1ST ARM ASS'Y,1ST ARM

1

ARM

1

ARM FIRST

1

ARM,1ST

2

205-70-72180

BUSHING

3

07020-00900

FITTING

4

01643-32060

WASHER

5

205-966-5904

SWING MOTOR ASS'Y

6

205-966-7520

PINION

7

01010-82085

BOLT

8

07236-10315

ELBOW

9

07002-02034

O-RING

10

07109-20308

HOSE

11

205-966-6711

TUBE

12

07002-12434

O-RING

13

07121-20510

HOSE

14

22W-62-14670

ELBOW

15

01010-81645

BOLT

16

01643-51645

WASHER

17

20Y-966-2891

COVER

18

20Y-966-2962

COVER

19

01010-81230

BOLT

20

01643-31232

WASHER

21

07145-00090

SEAL

22

20Y-70-11180

PIN

23

205-70-66580

PLATE

24

01010-81230

BOLT

25

01643-31232

WASHER

26

416-06-11310

GROMMET

27

07040-12012

PLUG

28

07002-02034

O-RING

29

04020-01842

PIN

30

01011-82210

BOLT

31

205-63-X9040

CYLINDER GROUP

31

205-63-X3131

BUCKET CYLINDER G.,(SEE FIG.Y1620-41A0)

31

205-63-X3131

BUCKET CYLINDER G.,(FOR JAPAN)

31

205-63-X2132

BUCKET CYLINDER G.,(EXCEPT JAPAN)

31

205-63-X2132

BUCKET CYLINDER G.,(SEE FIG.Y1620-41A0)
