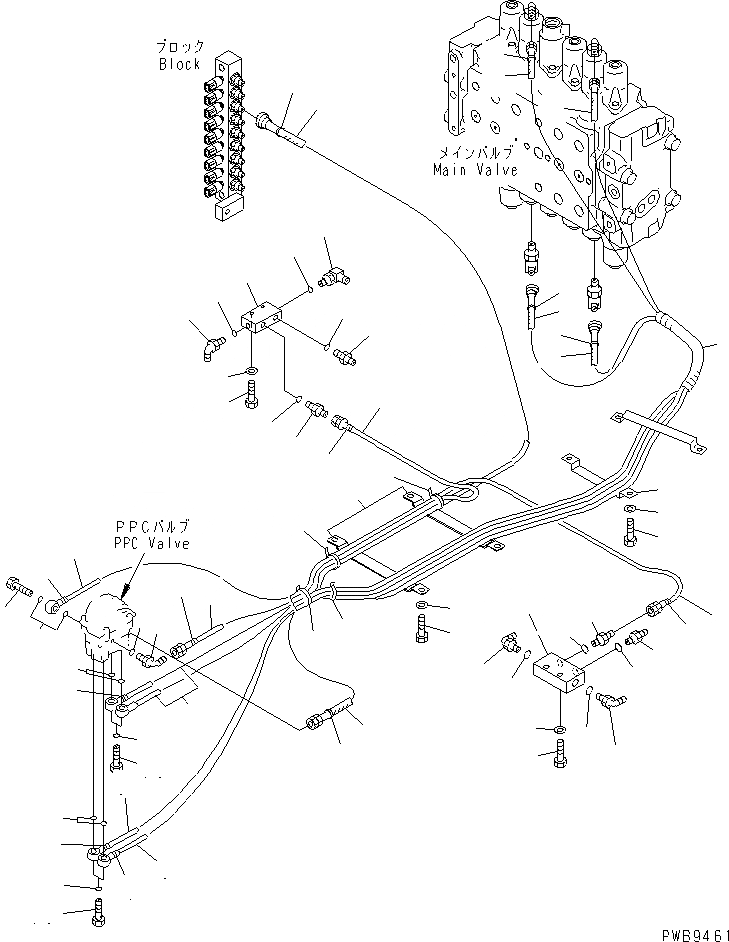

Запчасти Komatsu PC200LC-6 ОСНОВН. КОНСТРУКЦИЯ (PPC ЛИНИЯ ХОДА)(№9-) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

1

08017-32807

CONDUIT

2

08034-00536

BAND

3

20Y-62-27121

HOSE, 2950MM

4

20Y-62-22790

BAND, RED

5

20Y-62-27131

HOSE, 3100MM

6

20Y-62-22850

BAND, GREEN

7

20Y-62-27141

HOSE, 3300MM

8

20Y-62-22820

BAND, BLUE

9

20Y-62-22872

HOSE, 1350MM

10

20Y-62-22790

BAND, RED

11

203-62-52340

HOSE, 1000MM

12

20Y-62-22820

BAND, BLUE

13

20Y-62-25990

HOSE, 2750MM

14

20Y-62-22830

BAND, WHITE

15

08034-00519

BAND

16

20Y-62-18910

PLUG

17

07000-12018

O-RING

17

07000-02018

O-RING

18

20Y-62-18890

BOLT, JOINT

19

07000-12015

O-RING

19

07000-02015

O-RING

20

07235-10210

ELBOW

21

07002-01423

O-RING

22

20Y-62-27770

CLAMP

23

01010-81020

BOLT

24

01643-31032

WASHER

25

201-62-72570

CLAMP

26

01010-81016

BOLT

27

01643-31032

WASHER

28

08034-00536

BAND

29

20Y-62-15831

BLOCK

30

01010-81045

BOLT

31

01643-31032

WASHER

32

07235-10311

ELBOW

33

07235-10210

ELBOW

34

07002-01423

O-RING

35

07230-20210

UNION

36

07230-20210

UNION

37

07002-01423

O-RING

38

20Y-62-15831

BLOCK

39

01010-81045

BOLT

40

01643-31032

WASHER

41

07235-10311

ELBOW

42

07235-10210

ELBOW

43

07002-01423

O-RING

44

07230-20210

UNION

45

07230-20210

UNION

46

07002-01423

O-RING
