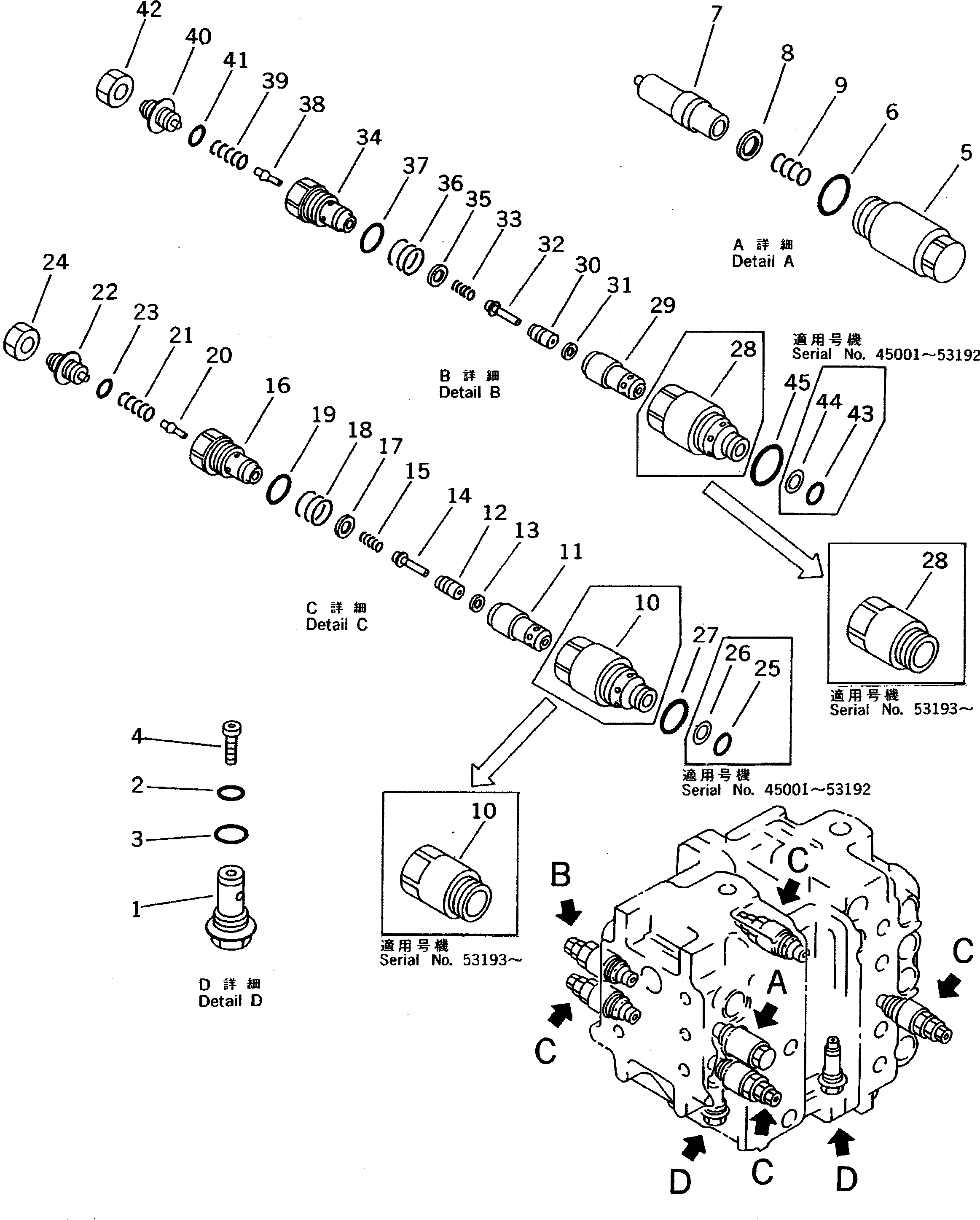

Запчасти Komatsu PC200LC-5X ГИДРАВЛ УПРАВЛЯЮЩ. КЛАПАН (7/7) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

709-79-22303

CONTROL VALVE ASS'Y

|1

709-79-22302

CONTROL VALVE ASS'Y

|1

709-79-22301

CONTROL VALVE ASS'Y

|1

709-79-22203

CONTROL VALVE ASS'Y

|1

709-79-22202

CONTROL VALVE ASS'Y

|1

709-90-91300

ORIFICE ASS'Y

1

ORIFICE

2

07000-02014

O-RING

3

07002-02434

O-RING

4

SENSOR

|5

709-20-81201

VALVE ASS'Y,SUCTION

|5

700-81-82001

VALVE ASS'Y,SUCTION

5

709-20-61110

SLEEVE

|5

700-80-62310

SLEEVE

6

709-25-11390

O-RING

|6

07002-03034

O-RING

7

VALVE

|7

VALVE

8

SEAL

|8

SEAL

9

709-20-61160

SPRING

|9

700-80-62250

SPRING

|10

709-70-74103

VALVE ASS'Y,SUCTION AND SAFETY

|10

709-70-71102

VALVE ASS'Y,SUCTION AND SAFETY

10

709-70-71112

SLEEVE

|10

709-70-71511

SLEEVE

11

SLEEVE

12

POPPET

13

SEAL

14

PISTON

15

709-70-71210

SPRING

16

PLUG

17

SEAL

18

709-70-71220

SPRING

19

07002-02434

O-RING

20

POPPET

21

SPRING

22

SCREW

23

O-RING

24

NUT

25

700-22-11410

O-RING

26

700-80-64220

RING,BACK-UP

27

709-25-11390

O-RING

|27

07002-03034

O-RING

|28

709-70-74203

VALVE ASS'Y,SUCTION AND SAFETY

|28

709-70-71203

VALVE ASS'Y,SUCTION AND SAFETY

28

709-70-71112

SLEEVE

|28

709-70-71511

SLEEVE

29

SLEEVE

30

POPPET

31

SEAL

32

PISTON

33

709-70-71210

SPRING

34

PLUG

35

SEAL

36

709-70-71220

SPRING

37

07002-02434

O-RING

38

POPPET

39

SPRING

40

SCREW

41

O-RING

42

NUT

43

700-22-11410

O-RING

44

700-80-64220

RING,BACK-UP

45

709-25-11390

O-RING

|45

07002-03034

O-RING
