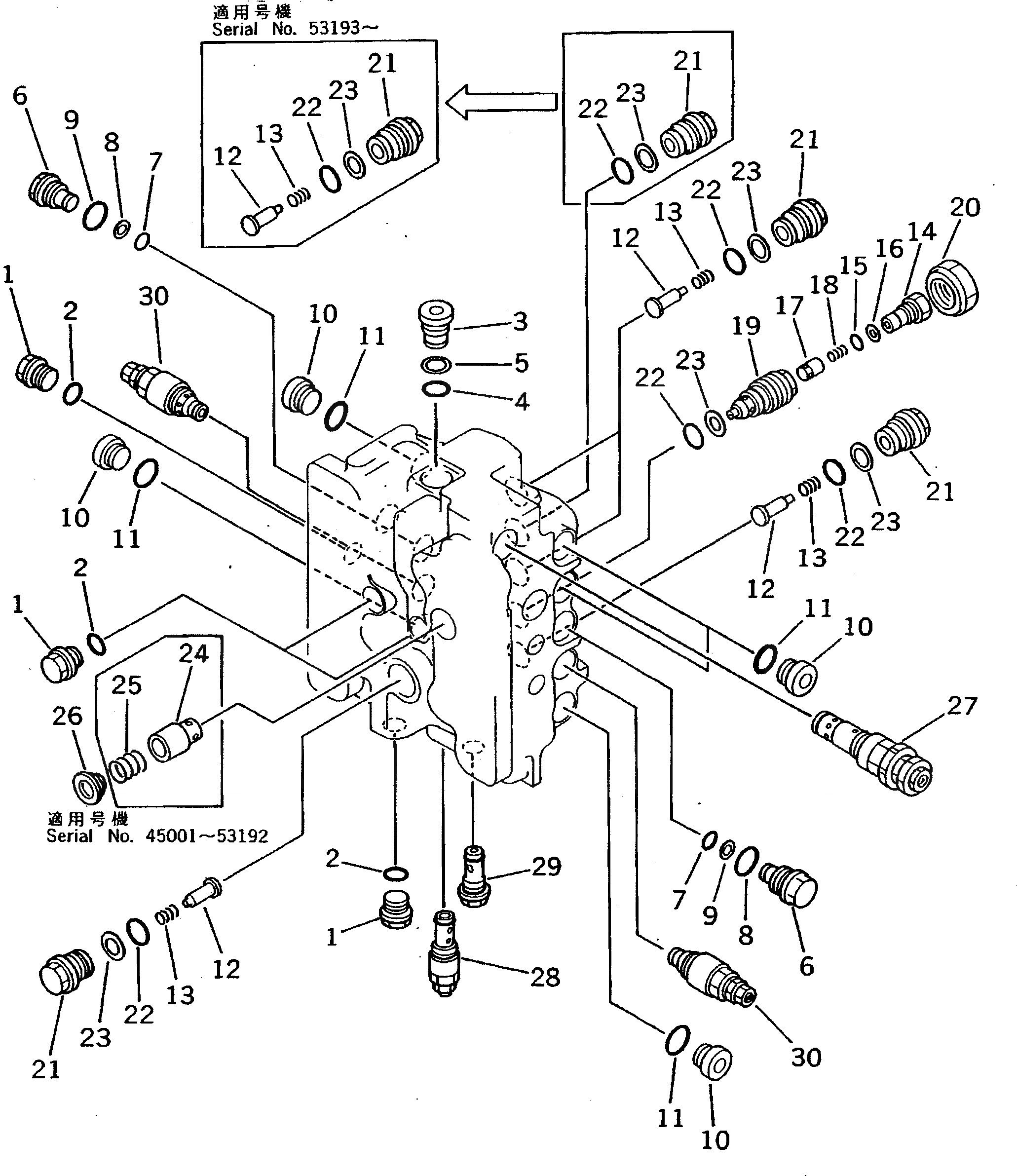

Запчасти Komatsu PC200LC-5X ГИДРАВЛ УПРАВЛЯЮЩ. КЛАПАН (/7) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ
№
Артикул
Название
Примечание
Количество
|1
709-79-22303
CONTROL VALVE ASS'Y
|1
709-79-22302
CONTROL VALVE ASS'Y
|1
709-79-22301
CONTROL VALVE ASS'Y
|1
709-79-22203
CONTROL VALVE ASS'Y
|1
709-79-22202
CONTROL VALVE ASS'Y
|1
709-75-92600
VALVE ASS'Y
|1
709-75-92503
VALVE ASS'Y
|1
709-75-92502
VALVE ASS'Y
1
709-74-91860
PLUG
2
07002-12434
O-RING
3
709-74-91850
PLUG
4
07000-12018
O-RING
5
07001-02018
RING,BACK-UP
6
709-74-91510
PLUG
|6
700-84-13960
PLUG
7
07000-11009
O-RING
|7
700-22-11410
O-RING
8
07001-01009
RING,BACK-UP
|8
700-80-64220
RING,BACK-UP
9
709-25-11390
O-RING
|9
07002-03034
O-RING
10
709-74-91520
PLUG
|10
07040-13016
PLUG
11
709-25-11390
O-RING
|11
07002-03034
O-RING
12
709-74-92810
VALVE
|12
709-74-92810
VALVE
13
709-75-92220
SPRING
|13
709-75-92220
SPRING
14
709-74-91820
PLUG
15
07000-12010
O-RING
16
07001-02010
RING,BACK-UP
17
706-73-70140
VALVE,CHECK
18
706-73-70150
SPRING
19
709-74-91810
PLUG
20
709-74-91830
NUT
21
709-74-92821
PLUG
22
700-93-11320
O-RING
23
700-93-11330
RING,BACK-UP
24
709-74-92281
VALVE
25
709-74-92290
SPRING
26
709-74-92310
SEAT
27
709-70-51401
VALVE ASS'Y,RELIEF
28
709-70-55200
VALVE ASS'Y,RELIEF
29
709-90-91300
ORIFICE ASS'Y
30
709-70-74103
VALVE ASS'Y,SUCTION AND SAFETY
|30
709-70-71102
VALVE ASS'Y,SUCTION AND SAFETY
Выбрано товаров: 47
