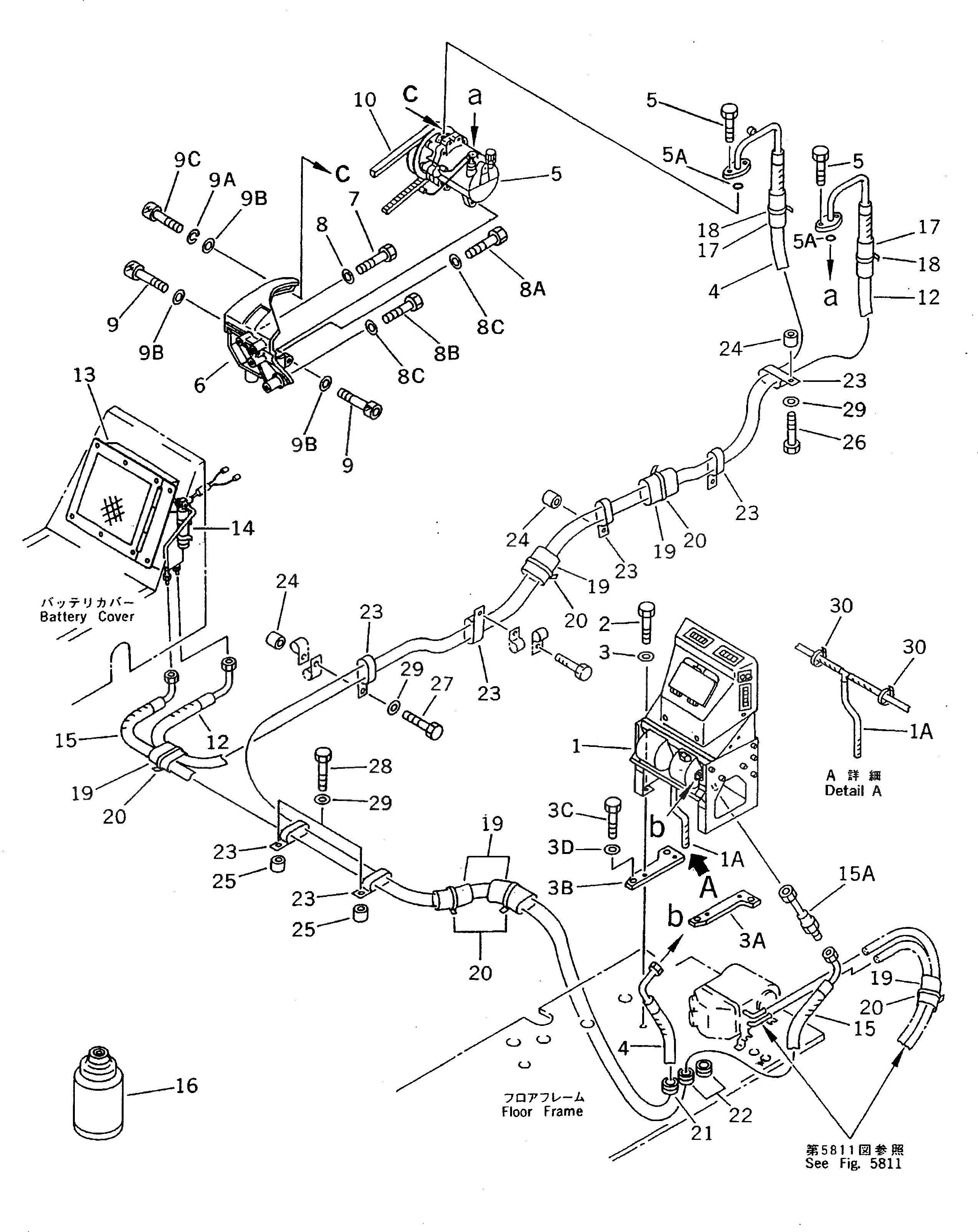

Запчасти Komatsu PC200LC-5X CAR ЛИНИЯ ОХЛАЖДЕНИЯ(№9-) ЧАСТИ КОРПУСА

1

20Y-978-1100

COOLER ASS'Y

1A

20Y-978-1240

HOSE ASS'Y

2

01010-51220

BOLT

3

01643-31232

WASHER

3A

207-978-5230

PLATE

3B

207-978-5240

PLATE

3C

01010-51235

BOLT

3D

01643-31232

WASHER

4

20Y-978-1180

HOSE

5

20Y-978-1120

COMPRESSOR

5A

07000-02016

O-RING

6

20Y-978-1131

BRACKET

7

01010-50850

BOLT

8

01643-30823

WASHER

8A

01010-51075

BOLT

8B

01010-51085

BOLT

8C

01643-31032

WASHER

9

01252-41030

BOLT

9A

01602-21030

WASHER,SPRING

9B

01643-31032

WASHER

9C

01252-41040

BOLT

10

20Y-978-1140

V-BELT

11

20Y-978-1150

V-BELT,(FOR ALTERNATOR) (NOT SHOWN)

12

20Y-978-1160

HOSE

13

20Y-978-1200

CONDENSER ASS'Y PAINT (2)

14

20Y-978-1110

RECEIVER

15

20Y-978-1170

HOSE

15A

20Y-978-1280

TUBE

16

202-981-1370

DRUM

17

205-62-72140

COVER

18

08034-00519

BAND

19

205-62-55780

COVER

20

08034-00536

BAND

21

20Y-977-1130

GROMMET

22

207-978-5190

GROMMET

23

141-06-11220

CLIP

|23

145-01-42120

CLIP

24

11T-27-11180

SPACER

25

11T-27-11180

SPACER

26

01010-51220

BOLT

27

01010-51260

BOLT

28

01010-51260

BOLT

29

01643-31232

WASHER

30

08034-00823

BAND
