Запчасти Komatsu PC200LC-5T МОТОР ХОДА (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

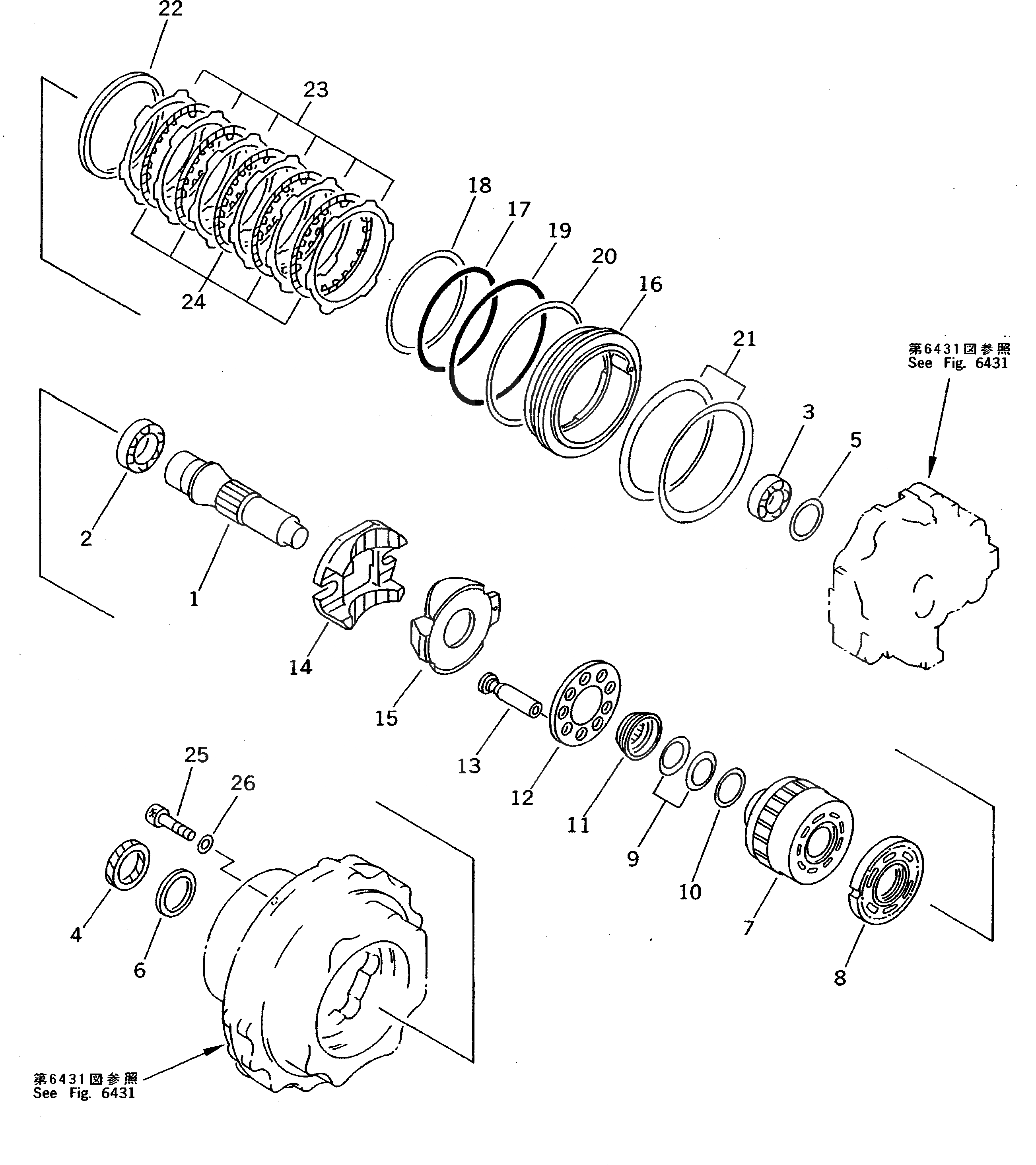

Схема запчастей Komatsu PC200LC-5T - МОТОР ХОДА (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

Артикул

Название

Примечание

Количество

|$0

20Y-27-00019

FINAL DRIVE ASS'Y

|$1

20Y-27-00018

FINAL DRIVE ASS'Y

|$2

20Y-27-00016

FINAL DRIVE ASS'Y

|$3

20Y-27-00015

FINAL DRIVE ASS'Y

|$5

708-8H-00071

TRAVEL MOTOR ASS'Y

|$6

708-8H-00070

MOTOR ASS'Y

1

708-8H-12110

SHAFT

2

708-8H-12151

BEARING

3

708-8H-12141

BEARING

4

708-27-22810

SEAL

5

708-8H-05010

SPACER KIT

5

SPACER, 2.0MM

5

SPACER, 2.3MM

5

SPACER, 1.5MM

5

SPACER, 1.6MM

5

SPACER, 1.7MM

5

SPACER, 1.8MM

5

SPACER, 1.9MM

5

SPACER, 2.1MM

5

SPACER, 2.2MM

6

708-8H-12260

PLATE

7

708-8H-13110

BLOCK,CYLINDER

8

708-8H-13211

VALVE,PLATE

9

708-8H-13520

SPRING

10

708-8H-05020

SHIM KIT

10

SHIM, 0.5MM

10

SHIM, 0.2MM

10

SHIM, 0.1MM

11

708-8H-13510

RETAINER

12

708-8H-13340

SHOE,RETAINER

13

708-8H-13311

PISTON ASS'Y

|$33

708-8H-04132

CRADLE ASS'Y

14

708-8H-13811

CRADLE

15

708-8H-13432

ROCKER,CAM

16

708-8H-15240

BRAKE,PISTON

17

07000-15190

O-RING

18

07001-05190

RING

19

708-8H-15220

O-RING

20

708-8H-15230

RING,BACK-UP

21

708-8H-15150

SPRING

22

708-8H-15160

SPACER

23

708-8H-15130

PLATE

24

708-8H-15121

DISK

25

708-8H-13910

BOLT

26

708-8H-13920

SEAL,WASHER

Выбрано товаров: 45
