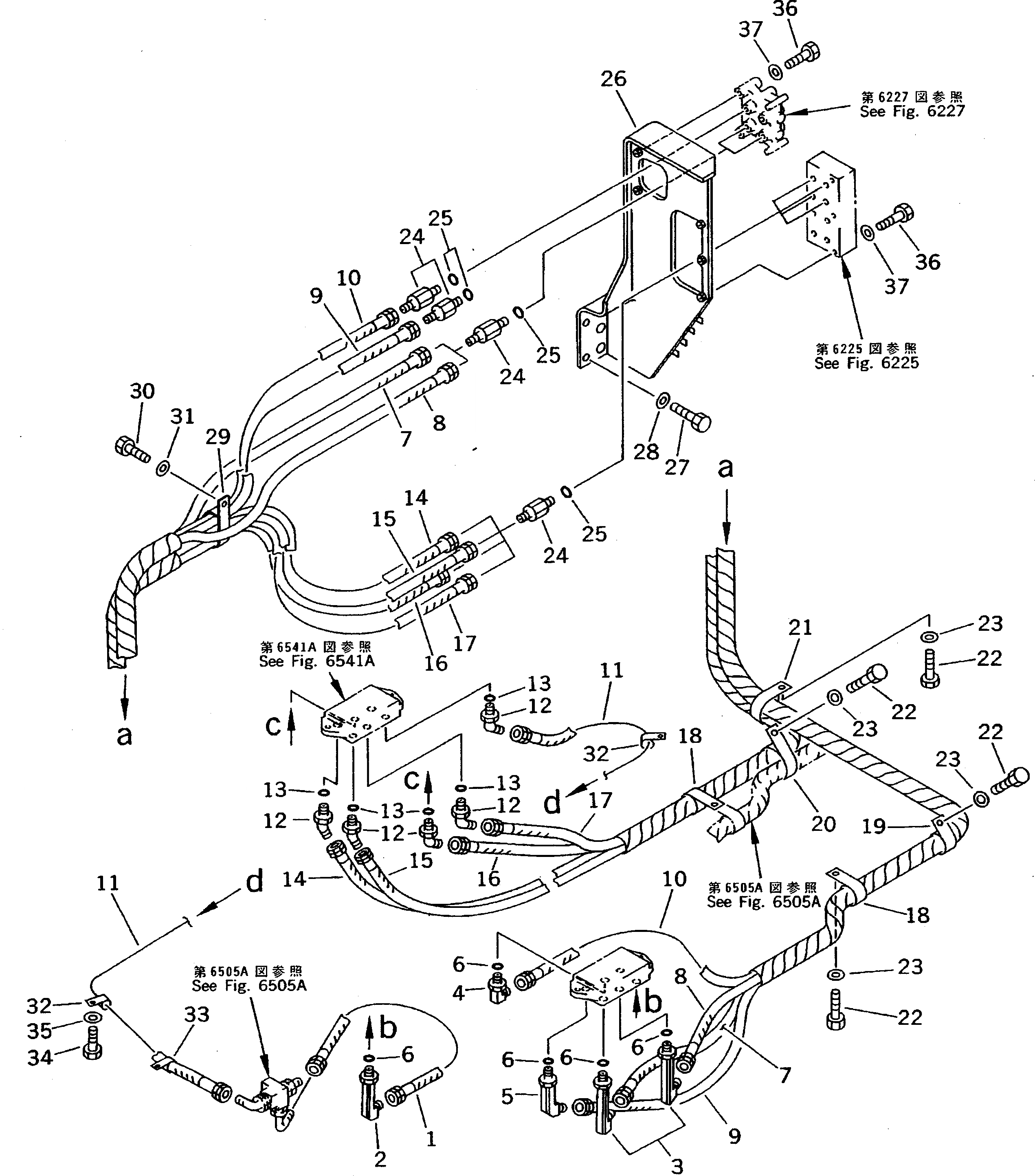

Запчасти Komatsu PC200LC-5S P.P.C. КЛАПАН ТРУБЫ (БЛОК TO/FROM РАСПРЕДЕЛИТ. КЛАПАН)(ДЛЯ WRIST УПРАВЛ-Е (KOMATSU PATTERN)(№-77) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

1

07102-20306

HOSE

2

20R-62-22260

ELBOW

3

20Y-62-16330

ELBOW

4

20Y-62-16340

ELBOW

5

20Y-62-16320

ELBOW

6

07002-02034

O-RING

7

20Y-62-18820

HOSE¤ 2250MM,(YELLOW)

|7

20Y-62-18590

HOSE¤ 2250MM,(YELLOW)

8

20Y-62-18820

HOSE¤ 2250MM,(WHITE)

|8

20Y-62-18590

HOSE¤ 2250MM,(WHITE)

9

20Y-62-18810

HOSE¤ 2150MM,(BROWN)

|9

20Y-62-16250

HOSE¤ 2140MM,(BROWN)

10

20Y-62-18810

HOSE¤ 2150MM,(BLACK)

|10

20Y-62-16250

HOSE¤ 2140MM,(BLACK)

11

07102-20311

HOSE

12

07236-10315

ELBOW

13

07002-02034

O-RING

14

20Y-62-16261

HOSE¤ 2300MM,(WHITE)

|14

20Y-62-17360

HOSE¤ 2300MM,(WHITE)

15

20Y-62-16261

HOSE¤ 2300MM,(YELLOW)

|15

20Y-62-17360

HOSE¤ 2300MM,(YELLOW)

16

20Y-62-16261

HOSE¤ 2300MM,(BLACK)

|16

20Y-62-17360

HOSE¤ 2300MM,(BLACK)

17

20Y-62-16261

HOSE¤ 2300MM,(BROWN)

|17

20Y-62-17360

HOSE¤ 2300MM,(BROWN)

18

113-899-7950

CLIP

19

20Y-03-11530

CLIP

20

20Y-03-11530

CLIP

21

207-62-33690

CLIP

22

01010-51225

BOLT

23

01643-31232

WASHER

24

20Y-62-16620

NIPPLE

|24

207-62-33950

NIPPLE

25

07002-01423

O-RING

26

20Y-62-15631

BRACKET

27

01010-51235

BOLT

28

01643-31232

WASHER

29

207-62-33690

CLIP

30

01010-51225

BOLT

31

01643-31232

WASHER

32

08036-01814

CLIP

33

08035-02512

CLIP

34

01010-51225

BOLT

35

01643-31232

WASHER

36

01010-51075

BOLT

37

01643-31032

WASHER
