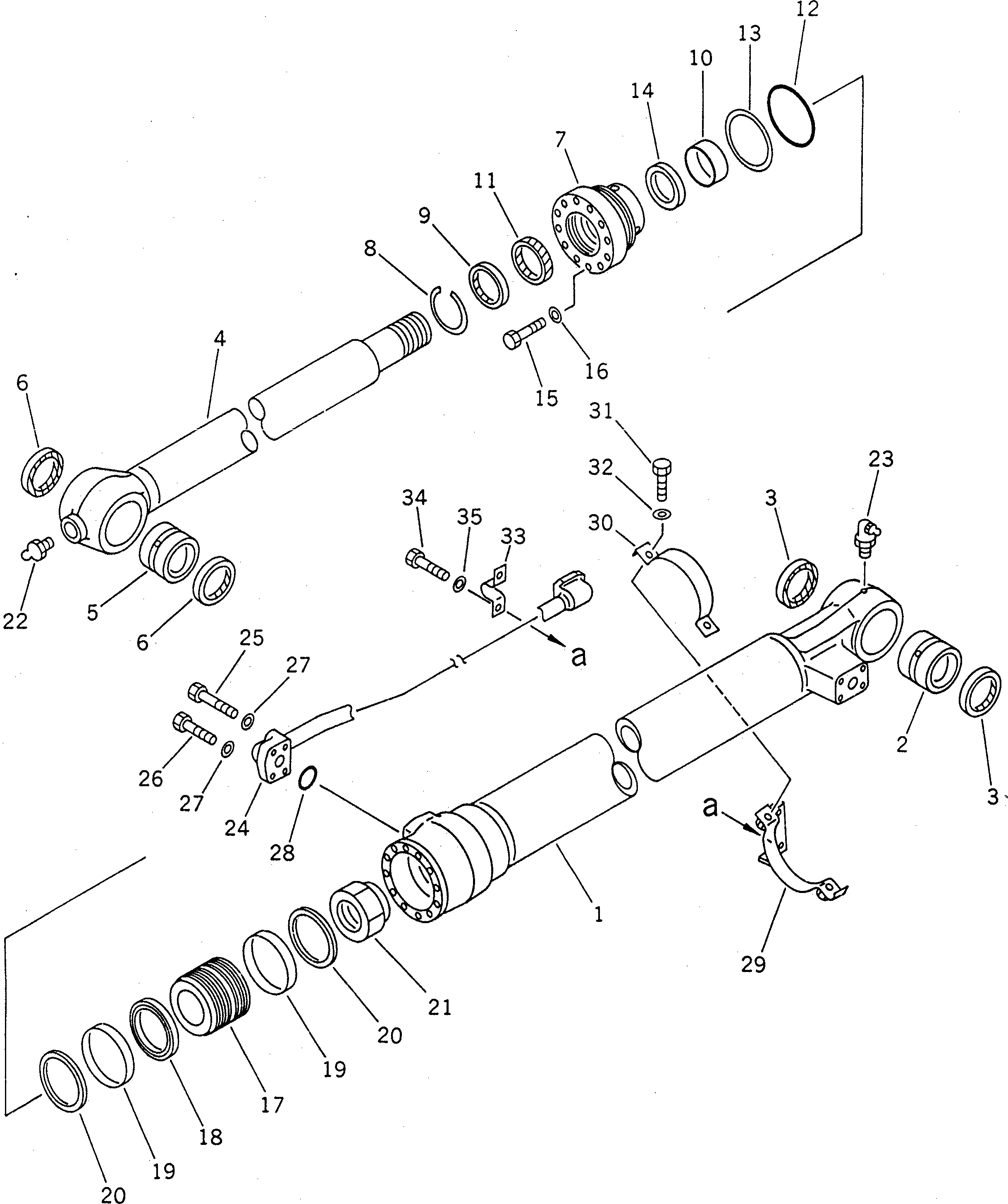

Запчасти Komatsu PC200LC-5C ЦИЛИНДР КОВША РАБОЧЕЕ ОБОРУДОВАНИЕ (ЭКСКАВАТ.)

G-1

205-63-X2131

BUCKET CYLINDER G.

|$2

205-63-02131

CYLINDER ASS'Y

1

205-63-73341

CYLINDER

2

707-76-70110

BUSHING

3

07145-00070

SEAL,DUST (KIT)

4

205-63-73320

ROD,PISTON

5

707-76-70120

BUSHING

6

21K-70-12180

SEAL,DUST (KIT)

7

707-27-11680

HEAD,CYLINDER

8

07179-13094

RING,SNAP

9

195-63-92190

SEAL,DUST (KIT)

10

707-52-90550

BUSHING

11

707-51-80030

PACKING,ROD (KIT)

12

07000-15110

O-RING (KIT)

13

07001-05110

RING,BACK-UP (KIT)

14

707-51-80630

RING,BUFFER (KIT)

15

01010-81670

BOLT

16

01643-51645

WASHER

17

707-36-11510

PISTON

18

707-44-11280

RING,PISTON (KIT)

19

707-39-11510

RING,WEAR (KIT)

20

707-44-11920

RING

21

07165-15860

NUT

22

07020-00000

FITTING,GREASE

23

07020-00900

FITTING,GREASE

24

205-63-73371

TUBE

25

07372-21060

BOLT

26

07372-21045

BOLT

27

01643-51032

WASHER

28

07000-13030

O-RING (KIT)

29

707-88-95370

BRACKET

30

707-88-95350

BAND

31

01010-51035

BOLT

32

01643-51032

WASHER

33

07282-02793

CLAMP

34

01010-51020

BOLT

35

01643-31032

WASHER
