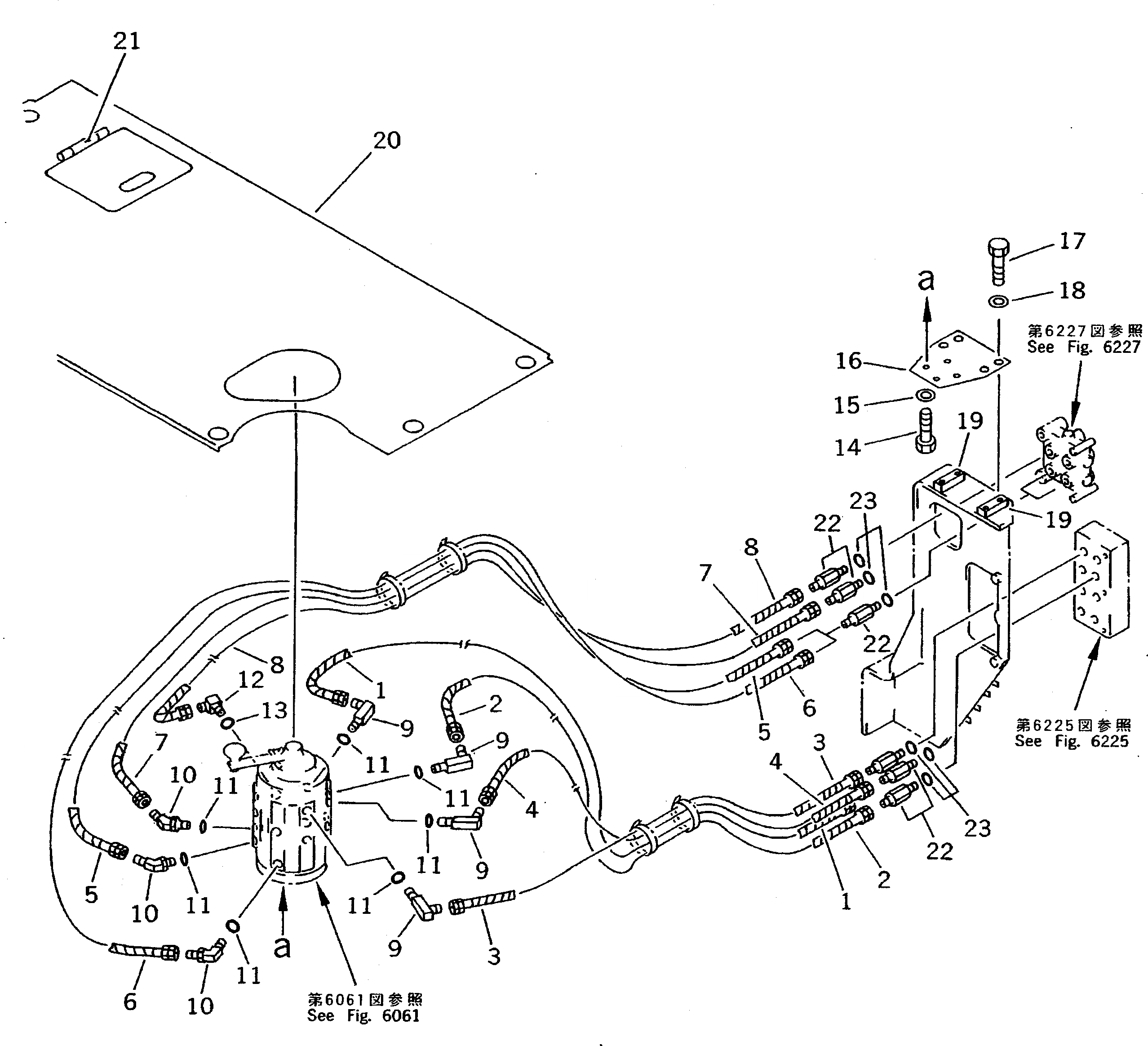

Запчасти Komatsu PC200LC-5 MULTI PATTERN SELECT КЛАПАН ТРУБЫ (MULTI PATTERN SELECT V. - SHUTTLE V.) (ДЛЯ ДОПОЛН. ТРУБЫ)(№89-) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

1

20Y-970-4310

HOSE,(BLACK)

2

20Y-970-4290

HOSE,(WHITE)

3

20Y-970-4330

HOSE,(BLUE)

4

20Y-62-17820

HOSE,(RED)

5

20Y-970-4280

HOSE,(BROWN)

6

20Y-970-4250

HOSE,(GREEN)

7

20Y-62-17920

HOSE,(PINK)

8

20Y-970-4320

HOSE,(YELLOW)

9

207-62-33930

ELBOW

10

22X-61-18550

ELBOW

11

07002-01423

O-RING

12

207-62-33920

ELBOW

13

07002-01423

O-RING

14

01010-51030

BOLT

15

01643-31032

WASHER

16

20Y-970-3280

PLATE

17

01010-51225

BOLT

18

01643-31232

WASHER

19

01573-22307

SEAT (WELDED)

20

20Y-970-4170

COVER

21

203-54-32230

HINGE (WELDED)

22

207-62-33950

NIPPLE

23

07002-01423

O-RING
