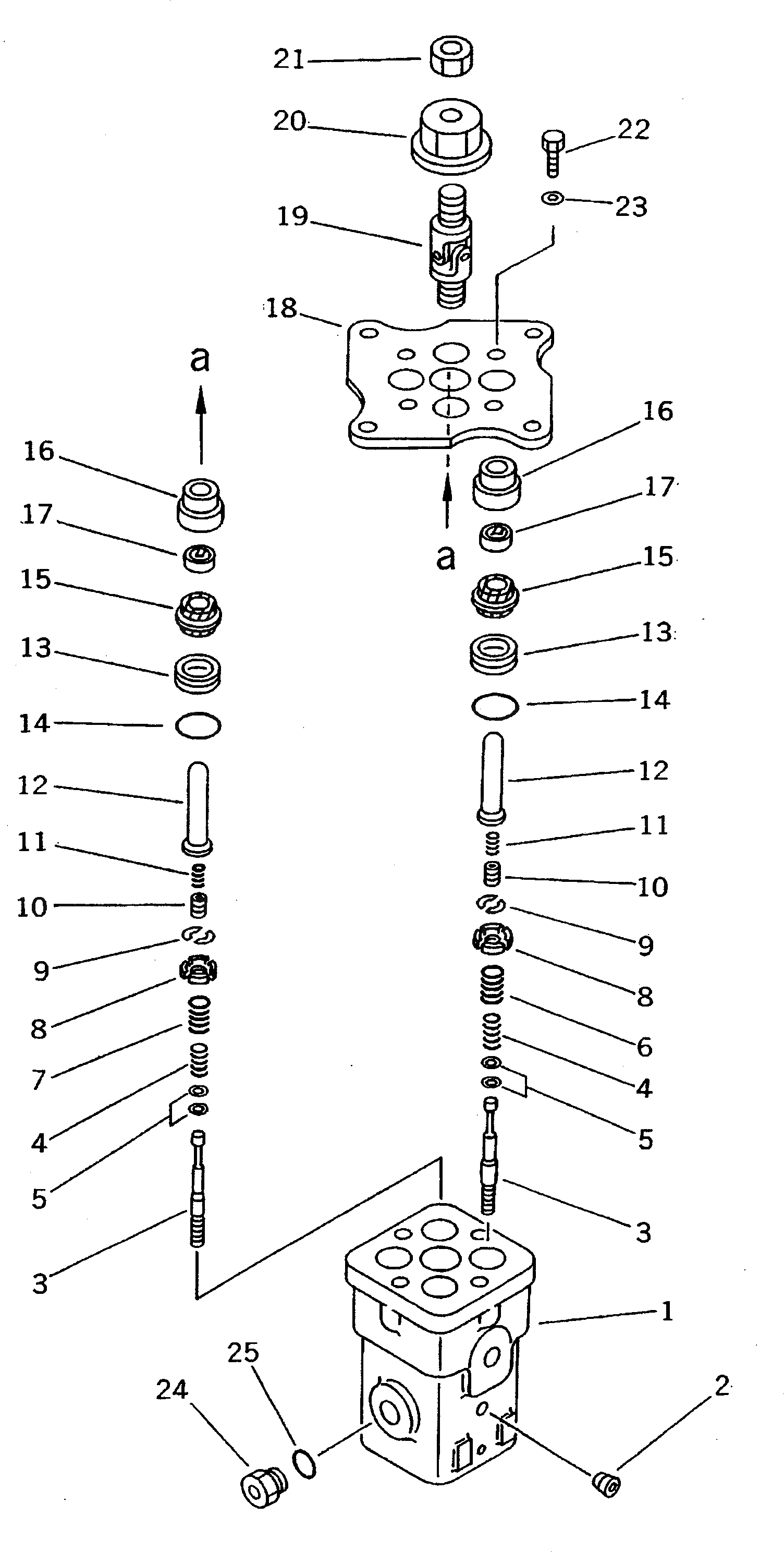

Запчасти Komatsu PC200LC-5 P.P.C. КЛАПАН (ДЛЯ РАБОЧ. ОБОРУД-Я) (ДЛЯ WRIST УПРАВЛ-Е) (№-78¤79-88) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

G-1

20Y-60-X1201

P.P.C. VALVE GROUP

|1

702-16-32001

PILOT VALVE ASS'Y

1

BODY,VALVE

2

07043-50312

PLUG

3

VALVE

4

702-16-51510

SPRING,INNER

5

702-16-51140

SHIM¤ 0.30MM

6

702-16-52320

SPRING,OUTER

7

702-16-52310

SPRING,OUTER

8

702-16-51832

RETAINER

9

702-16-51170

COLLAR

10

702-16-52270

PISTON

11

702-16-52290

SPRING

12

702-16-52221

PISTON

13

702-16-52170

COLLAR

14

07000-02021

O-RING

15

702-16-51270

SEAL

16

702-16-52162

COLLAR

17

702-16-52190

SEAL,DUST

18

702-16-52180

PLATE

19

702-16-52212

JOINT

20

702-16-51820

DISK

21

01583-11811

NUT

22

01010-50816

BOLT

23

01643-30823

WASHER

24

702-16-51890

FILTER ASS'Y

25

07002-02034

O-RING
