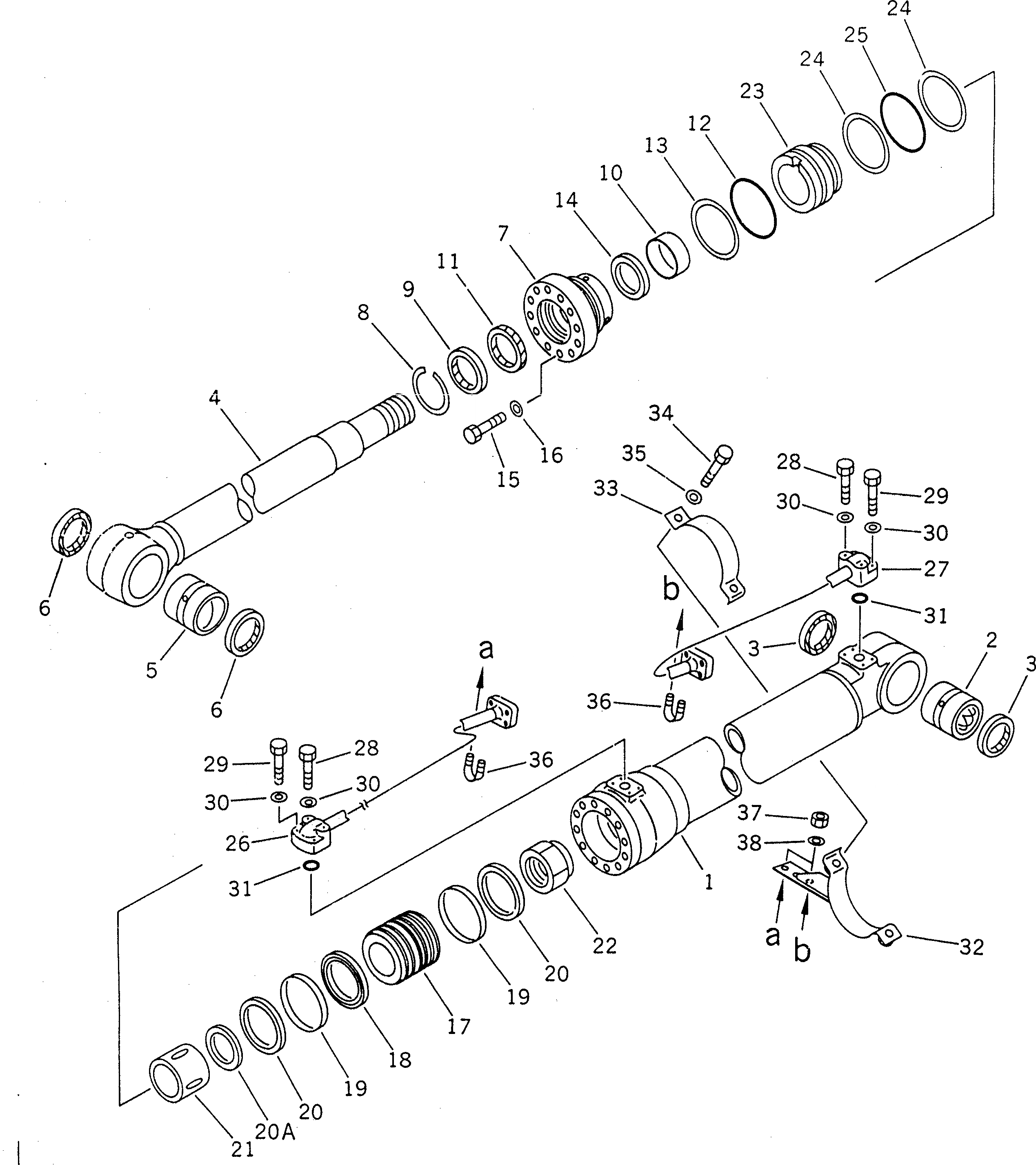

Запчасти Komatsu PC200LC-5 ЦИЛИНДР СТРЕЛЫ(БОЛЬШ. DIAMETER)(№89-) РАБОЧЕЕ ОБОРУДОВАНИЕ

G-1

205-63-X2260

BOOM CYLINDER GROUP,L.H.

G-1

205-63-X2270

BOOM CYLINDER GROUP,R.H.

|$3

205-63-02260

CYLINDER ASS'Y

1

206-63-53340

CYLINDER

2

20Y-949-1370

BUSHING

3

07145-00070

SEAL,DUST (KIT)

4

206-63-53320

ROD,PISTON

5

707-76-80010

BUSHING

6

07145-00080

SEAL,DUST (KIT)

7

707-27-13620

HEAD,CYLINDER

8

07179-13104

RING,SNAP

9

195-63-94170

SEAL,DUST (KIT)

10

707-52-90650

BUSHING

11

707-51-90030

PACKING,ROD (KIT)

12

07000-15125

O-RING (KIT)

13

07001-05125

RING,BACK-UP (KIT)

14

707-51-90630

RING,BUFFER (KIT)

15

01010-81670

BOLT

16

01643-51645

WASHER

17

707-36-13411

PISTON

18

707-44-13180

RING,PISTON (KIT)

19

707-39-13110

RING,WEAR (KIT)

20

707-44-13911

RING

20A

707-40-13470

RETAINER

21

707-71-60911

PLUNGER

22

07165-16870

NUT

23

707-71-32610

COLLAR

24

07001-05125

RING,BACK-UP (KIT)

25

07000-15125

O-RING (KIT)

26

205-63-53770

TUBE,L.H.

26

205-63-53870

TUBE,R.H.

27

206-63-53381

TUBE,L.H.

27

206-63-53481

TUBE,R.H.

28

07372-21060

BOLT

29

07372-21045

BOLT

30

01643-51032

WASHER

31

07000-13030

O-RING (KIT)

32

707-88-95182

BRACKET,L.H.

32

707-88-95192

BRACKET,R.H.

33

707-88-95081

BAND

34

01010-51035

BOLT

35

01643-51032

WASHER

36

07283-22738

CLIP

37

01599-01011

NUT

38

01643-31032

WASHER
