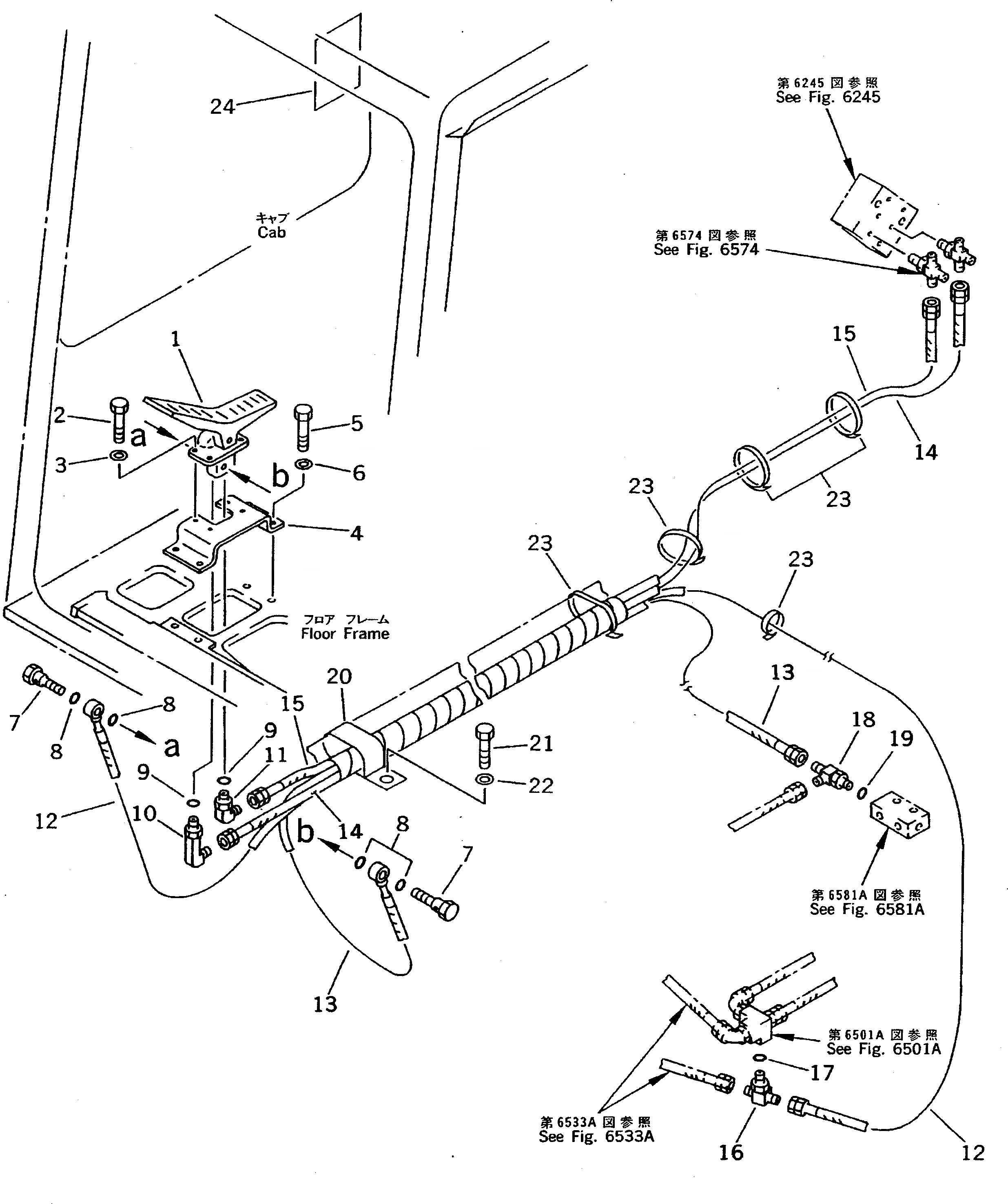

Запчасти Komatsu PC200LC-5 ГЛАВН. ТРУБЫ (ПЕДАЛЬ - SHUTTLE V.) (ДЛЯ ДОПОЛН. ТРУБЫ) (№79-79¤89-) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

1

20Y-970-1711

PEDAL ASS'Y

2

01010-50825

BOLT

3

01643-30823

WASHER

4

20Y-970-1721

BRACKET

5

01010-51025

BOLT

6

01643-31032

WASHER

7

706-46-56290

BOLT

8

07000-02018

O-RING

9

07002-01423

O-RING

10

20Y-970-1741

ELBOW

11

20Y-970-1731

ELBOW

12

20Y-970-3650

HOSE,(RED)

13

20Y-970-3660

HOSE,(BLUE)

14

20Y-970-3730

HOSE,(WHITE)

15

20Y-970-3720

HOSE,(YELLOW)

16

209-62-27580

TEE

17

07002-02034

O-RING

18

21T-62-29960

TEE

19

07002-01423

O-RING

20

20Y-970-1770

CLIP,(FOR LONG LEVER CONTROL)

20

20Y-62-15891

CLIP,(FOR WRIST CONTROL)

21

01010-51225

BOLT

22

01643-31232

WASHER

23

08034-00536

BAND

24

20Y-970-3740

PLATE

24

20Y-970-3960

PLATE,(ARABIC)

24

20Y-970-3980

PLATE,(PERSIAN)

24

20Y-970-3990

PLATE,(RUSSIAN)

24

20Y-970-4120

PLATE,(INDONESIAN)

24

20Y-970-4130

PLATE,(FRENCH)

24

20Y-970-4140

PLATE,(SPANISH)

24

20Y-970-4150

PLATE,(GERMANY)

24

20Y-970-4160

PLATE,(ITALIAN)
