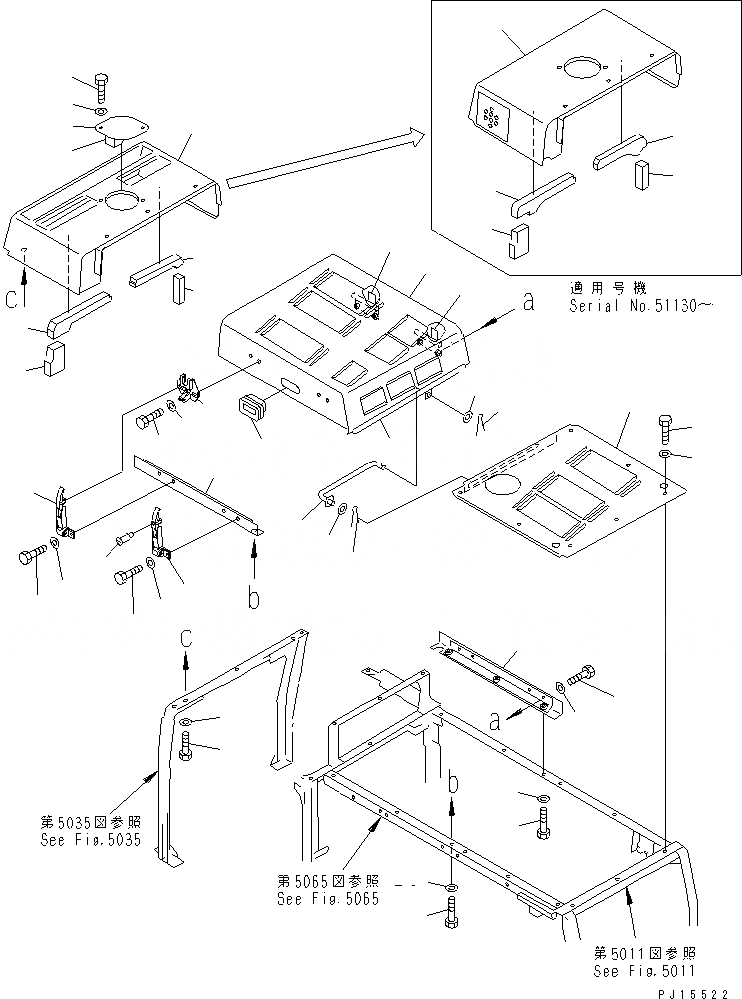

Запчасти Komatsu PC200LC-5 КАПОТ (ДЛЯ ВЫСОК. ЕМК. РАДИАТОР) (№-78¤79-88) ЧАСТИ КОРПУСА

1

20Y-54-14660

COVER

2

01010-51230

BOLT

3

01643-31232

WASHER

4

20Y-973-2261

COVER

4

20Y-973-2260

COVER

4A

20Y-973-2331

SEAL

5

20Y-54-15940

HINGE (WELDED)

6

01010-51230

BOLT

7

01643-31232

WASHER

8

209-54-12280

HANDLE

9

20Y-973-2280

COVER

10

01010-51230

BOLT

11

01643-31232

WASHER

12

20Y-54-12152

BAR

13

01643-31032

WASHER

14

04050-13018

PIN,COTTER

15

20Y-973-2251

COVER

15

20Y-973-2250

COVER

15A

20Y-54-15790

SHEET

15B

20Y-54-15820

SHEET

15C

20Y-54-15781

SHEET

15C

20Y-54-15780

SHEET

15D

20Y-54-15811

SHEET

15D

20Y-54-15810

SHEET

16

01010-51230

BOLT

17

01643-31232

WASHER

18

206-54-51181

PLATE

18A

206-54-51170

SHEET

19

01010-51220

BOLT

20

01643-31232

WASHER

21

20Y-973-2270

COVER

22

01010-51230

BOLT

23

01643-31232

WASHER

24

205-54-67660

SUPPORT

25

205-54-76260

CATCHER

26

205-54-76280

ROTOR ASS'Y

27

205-54-76530

CATCHER

28

01010-50825

BOLT

29

01643-30823

WASHER
