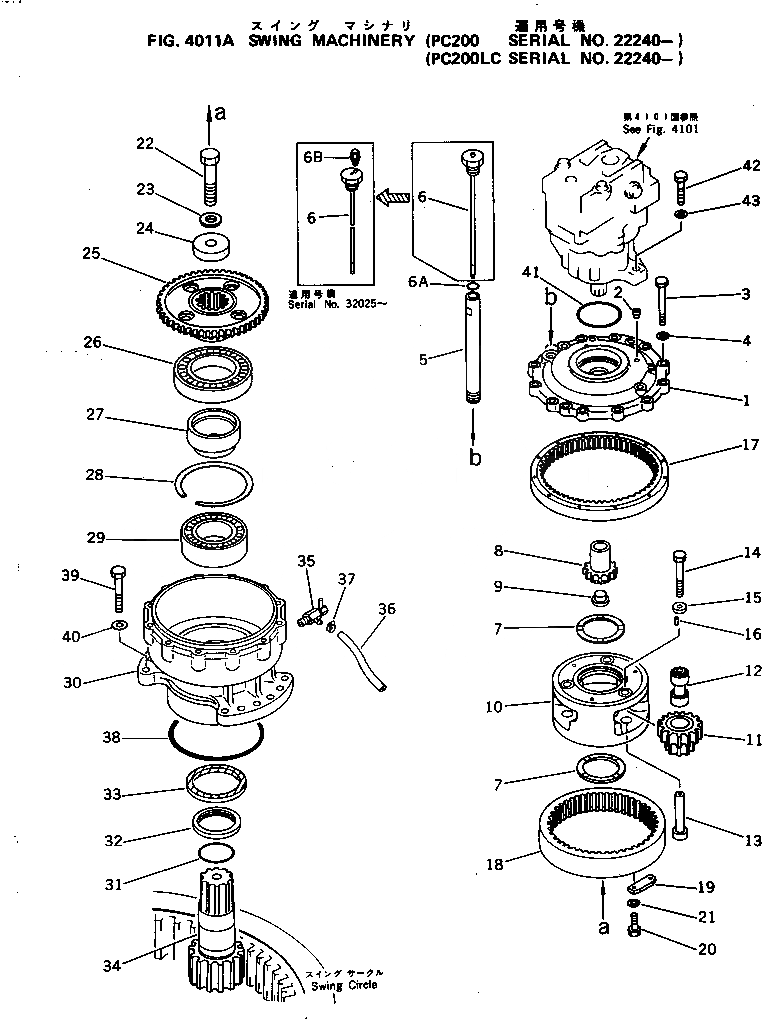

Запчасти Komatsu PC200LC-3 МЕХАНИЗМ ПОВОРОТА(№-) ПОВОРОТН. И СИСТЕМА УПРАВЛЕНИЯ

|$0

205-26-00042

SWING MACHINERY A.

|$1

205-26-00041

SWING MACHINERY A.

|$2

205-26-00040

SWING MACHINERY A.

1

205-26-71323

COVER

2

07043-70312

PLUG

3

01010-51690

BOLT

4

01643-31645

WASHER

5

205-26-71482

FILLER

5

205-26-71481

FILLER

6

205-26-71493

GAUGE

6

205-26-71492

GAUGE

6

205-26-71491

GAUGE

6A

07000-03025

O-RING

6B

205-26-71680

BREATHER

7

205-26-71591

SPACER

8

205-26-71362

GEAR

9

205-26-71530

BUTTON

10

205-26-71332

CARRIER

11

205-26-00031

PLANETARY GEAR A.

11

GEAR

12

205-26-71650

BEARING,ROLLER

13

205-26-71453

PIN

14

01010-51250

BOLT

15

205-26-71660

COLLAR

16

04020-00514

PIN

17

205-26-71611

GEAR

18

205-26-71373

GEAR

19

205-26-71510

PLATE

20

01010-50820

BOLT

21

01643-50823

WASHER

22

175-32-11210

BOLT

23

01643-32460

WASHER

24

205-26-71521

PLATE

25

205-26-71383

GEAR

26

205-26-71580

BEARING,ROLLER

27

205-26-71560

SPACER

28

04071-00200

RING,SNAP

29

06030-22319

BEARING,ROLLER

30

205-26-71313

CASE

31

07000-05095

O-RING

32

205-26-71430

SPACER

33

07012-00125

SEAL

34

205-26-71393

SHAFT

35

195-03-13241

VALVE

36

205-26-71620

TUBE

37

07281-00197

CLAMP

38

07000-05240

O-RING

39

01010-52060

BOLT

40

01643-32060

WASHER

41

07000-02110

O-RING

42

01010-52055

BOLT

43

01643-32060

WASHER
