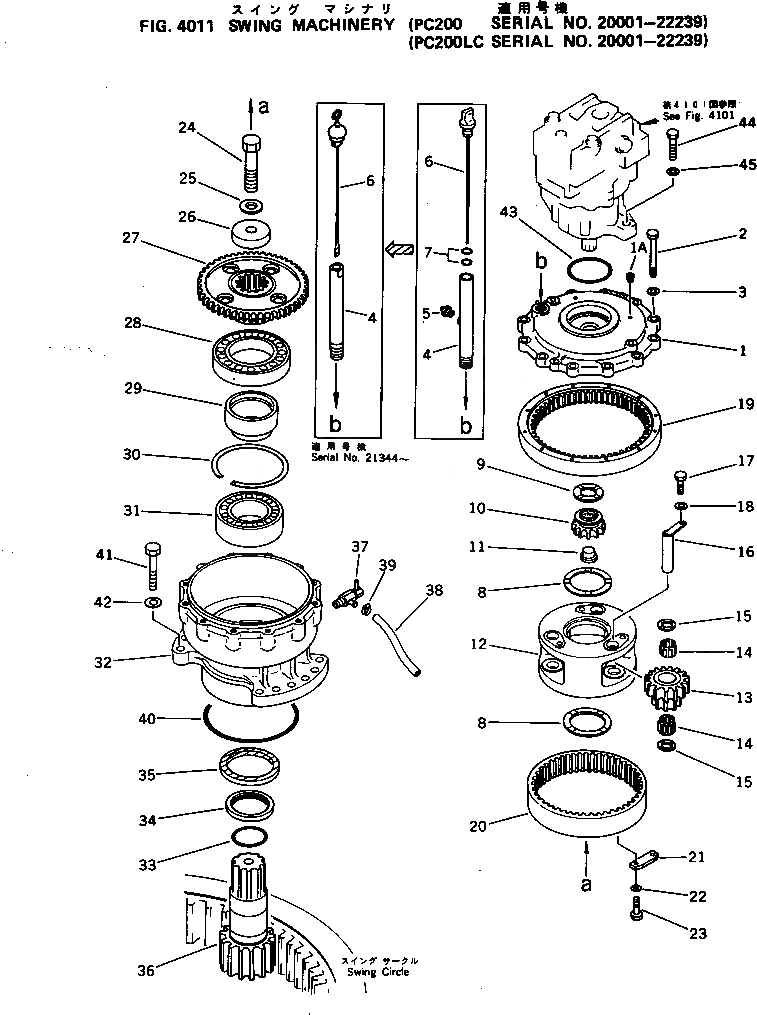

Запчасти Komatsu PC200LC-3 МЕХАНИЗМ ПОВОРОТА(№-9) ПОВОРОТН. И СИСТЕМА УПРАВЛЕНИЯ

|$0

205-26-00023

SWING MACHINERY A.

|$1

205-26-00022

SWING MACHINERY A.

|$2

205-26-00021

SWING MACHINERY A.

1

205-26-71322

COVER

1A

07043-70312

PLUG

2

01011-51600

BOLT

3

01643-31645

WASHER

4

205-26-71481

FILLER

4

205-26-71480

FILLER

5

07029-00000

VALVE,RELIEF

6

205-26-71491

GAUGE

6

205-26-71490

GAUGE

7

07000-03022

O-RING

8

205-26-71590

SPACER

9

205-26-71540

WASHER,THRUST

10

205-26-71361

GEAR

11

205-26-71530

BUTTON

12

205-26-71330

CARRIER

|$18

205-26-00030

PLANETARY GEAR A.

13

205-26-71351

GEAR

14

205-26-71460

BEARING

15

205-26-71470

WASHER,THRUST

16

205-26-71450

PIN

17

01010-51225

BOLT

18

01643-31232

WASHER

19

205-26-71610

GEAR

20

205-26-71372

GEAR

21

205-26-71510

PLATE

22

01643-50823

WASHER

23

01010-50820

BOLT

24

175-32-11210

BOLT

25

01643-32460

WASHER

26

205-26-71521

PLATE

26

205-26-71520

PLATE

27

205-26-71382

GEAR

28

205-26-71580

BEARING,ROLLER

29

205-26-71560

SPACER

30

04071-00200

RING,SNAP

31

06030-22319

BEARING,ROLLER

32

205-26-71312

CASE

33

07000-05095

O-RING

34

205-26-71430

SPACER

35

07012-00125

SEAL

36

205-26-71393

SHAFT

37

195-03-13241

VALVE

38

205-26-71620

TUBE

39

07281-00197

CLAMP

40

07000-05240

O-RING

41

01010-32060

BOLT

42

01643-32060

WASHER

43

07000-02110

O-RING

44

01010-52055

BOLT

45

01643-32060

WASHER
