Запчасти Komatsu PC200LC-3 КОНЕЧНАЯ ПЕРЕДАЧА ХОД И КОНЕЧНАЯ ПЕРЕДАЧА

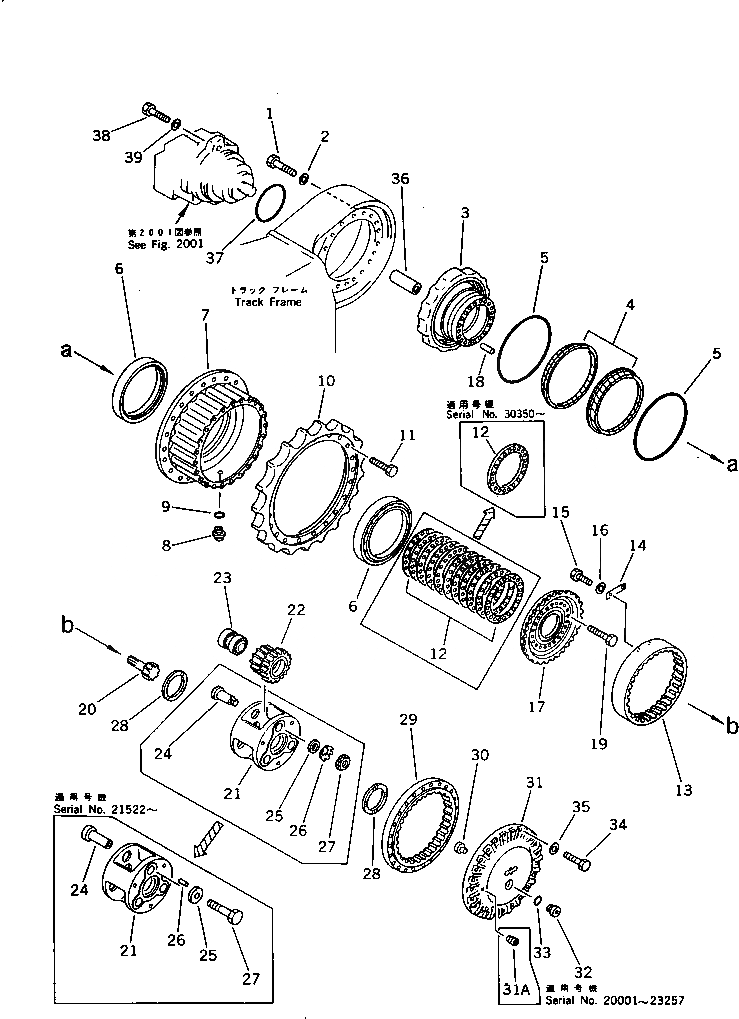

Схема запчастей Komatsu PC200LC-3 - КОНЕЧНАЯ ПЕРЕДАЧА ХОД И КОНЕЧНАЯ ПЕРЕДАЧА

Артикул

Название

Примечание

Количество

1

01010-51670

BOLT

2

01643-31645

WASHER

|$2

206-27-00027

FINAL DRIVE ASS'Y

|$3

206-27-00026

FINAL DRIVE ASS'Y

|$4

206-27-00025

FINAL DRIVE ASS'Y

|$5

206-27-00024

FINAL DRIVE ASS'Y

|$6

206-27-00023

FINAL DRIVE ASS'Y

|$7

206-27-00022

FINAL DRIVE ASS'Y

|$8

206-27-00021

FINAL DRIVE ASS'Y

|$9

206-27-00020

FINAL DRIVE ASS'Y

3

205-27-71481

SHAFT

3

205-27-71480

SHAFT

|$14

150-27-00027

FLOATING SEAL ASS'Y

4

150-27-00262

SEAL RING ASS'Y

4

RING,SEAL

5

150-27-00270

O-RING ASS'Y

5

O-RING

6

205-27-71430

BEARING

7

205-27-71471

HUB

7

205-27-71470

HUB

8

07044-12412

PLUG

9

07002-02434

O-RING

10

205-27-71281

SPROCKET

11

205-27-71670

BOLT

11

01010-51640

BOLT

12

20Y-27-11310

SPACER, 4.85MM

12

205-27-00060

SHIM ASS'Y

12

SHIM, 0.15MM

12

SHIM, 0.2MM

13

205-27-71531

GEAR

13

205-27-71530

GEAR

14

205-27-71610

PLATE

15

01010-50820

BOLT

16

01643-50823

WASHER

17

205-27-71630

GEAR

18

04020-01842

PIN,DOWEL

19

205-27-71680

BOLT

19

205-27-71670

BOLT

19

01010-51640

BOLT

20

206-27-44112

GEAR

21

205-27-71510

CARRIER

22

206-27-00010

PLANETARY GEAR A.

22

GEAR

23

205-27-71560

BEARING

24

205-27-71582

PIN

24

205-27-71580

PIN

25

205-27-71592

COLLAR

25

205-27-71591

COLLAR

26

04020-00616

PIN,DOWEL

26

01658-03618

WASHER

27

01010-51465

BOLT

27

01530-03610

NUT

28

205-27-71570

SPACER

29

206-27-44132

GEAR

30

205-27-71360

BUTTON

31

205-27-71492

COVER

31

205-27-71491

COVER

31A

07043-70312

PLUG

32

07040-12414

PLUG

32

07040-13618

PLUG

33

07002-02434

O-RING

33

07002-03634

O-RING

34

01010-51685

BOLT

35

01643-31645

WASHER

36

205-27-71131

COUPLING

37

07000-05190

O-RING

38

01010-51670

BOLT

39

01643-31645

WASHER

12

20Y-27-11320

SPACER, 4.90MM

12

20Y-27-11330

SPACER, 4.95MM

12

20Y-27-11340

SPACER, 5.00MM

12

20Y-27-11350

SPACER, 5.05MM

12

20Y-27-11360

SPACER, 5.10MM

Выбрано товаров: 73
