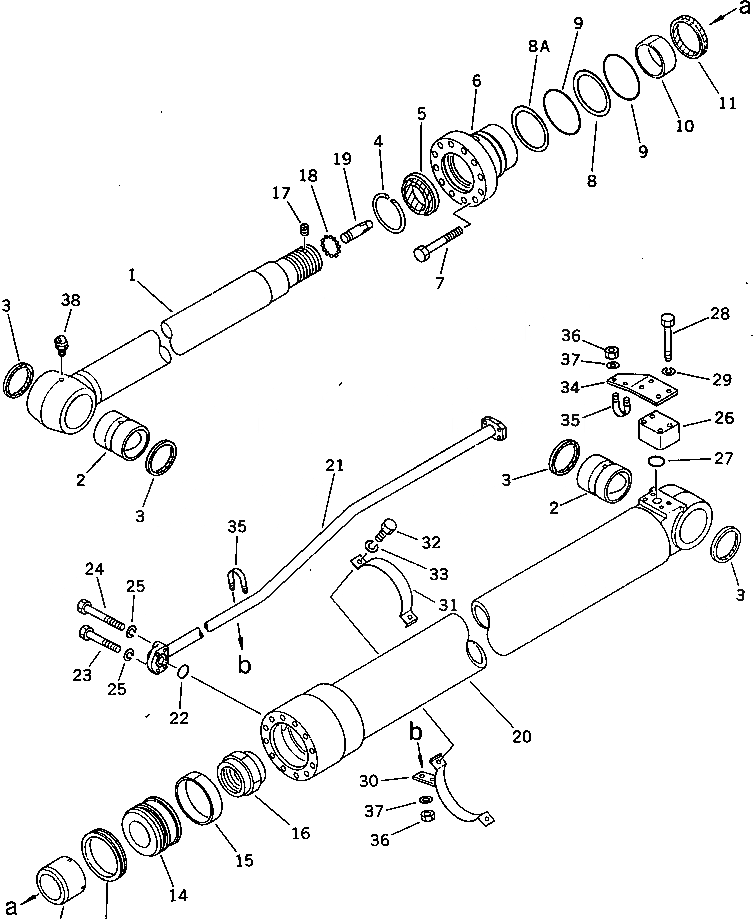

Запчасти Komatsu PC200LC-3 ЦИЛИНДР РУКОЯТИ(№-) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

205-63-62101

ARM CYLINDER ASS'Y

|$1

205-63-62100

ARM CYLINDER ASS'Y

1

205-63-62122

ROD,PISTON

1

205-63-62121

ROD,PISTON

2

707-76-80010

BUSHING

3

07145-00080

SEAL,DUST

4

707-75-10030

RING,SNAP

5

707-56-95510

SEAL,DUST

6

707-28-13270

HEAD,CYLINDER

7

01010-81655

BOLT

8

07146-02126

RING,BACK-UP

8A

707-35-91310

RING,BACK-UP

9

07000-12125

O-RING

10

707-52-10950

BUSHING

11

707-51-95211

PACKING,ROD

12

707-71-50011

PLUNGER

13

707-44-13080

RING,PISTON

14

707-36-13460

PISTON

15

07155-01330

RING,WEAR

16

707-68-10680

NUT

17

707-71-91250

SCREW

18

04260-00635

BALL

19

707-71-50252

PLUNGER

19

707-71-50251

PLUNGER

20

205-63-62141

CYLINDER

21

205-63-62170

TUBE

22

07000-13030

O-RING

23

01010-50845

BOLT

24

01010-50855

BOLT

25

01602-20825

WASHER,SPRING

26

20D-62-17860

ELBOW

27

07000-13035

O-RING

28

01010-51080

BOLT

29

01602-21030

WASHER,SPRING

30

707-88-99360

BAND

31

707-88-99310

BAND

32

01010-51030

BOLT

33

01602-21030

WASHER,SPRING

34

707-88-10820

PLATE

35

07283-22738

CLIP

36

01599-01011

NUT

37

01643-31032

WASHER

38

07020-00900

FITTING,GREASE
