Запчасти Komatsu PC200LC-3 УПРАВЛЯЮЩ. КЛАПАН (7/7) (ДЛЯ УДЛИНН. РЫЧАГ УПРАВЛ-Е)(№-) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

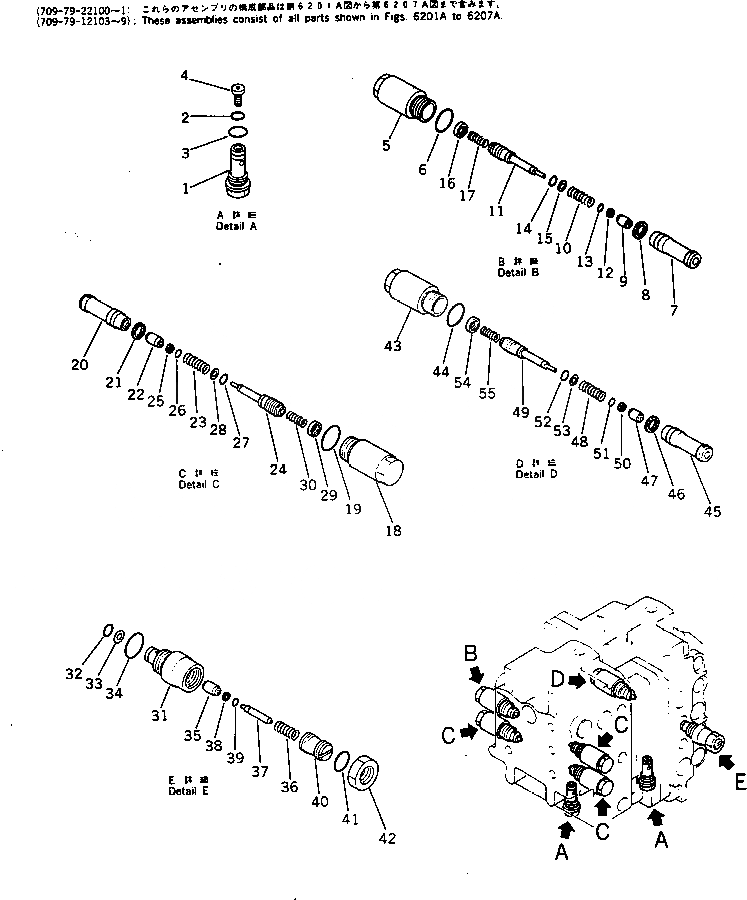

Схема запчастей Komatsu PC200LC-3 - УПРАВЛЯЮЩ. КЛАПАН (7/7) (ДЛЯ УДЛИНН. РЫЧАГ УПРАВЛ-Е)(№-) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

Артикул

Название

Примечание

Количество

|$0

709-79-22101

CONTROL VALVE ASS'Y

|$1

709-79-22100

CONTROL VALVE ASS'Y

|$2

709-79-12109

CONTROL VALVE ASS'Y

|$3

709-79-12108

CONTROL VALVE ASS'Y

|$4

709-79-12107

CONTROL VALVE ASS'Y

|$5

709-79-12106

CONTROL VALVE ASS'Y

|$6

709-79-12105

CONTROL VALVE ASS'Y

|$7

709-79-12104

CONTROL VALVE ASS'Y

|$8

709-79-12103

CONTROL VALVE ASS'Y

|$9

709-70-91300

ORIFICE ASS'Y

1

ORIFICE

2

07000-02014

O-RING

3

07002-02434

O-RING

4

SENSOR

|$14

709-70-61101

VALVE ASS'Y,SUCTION AND SAFETY

|$15

709-70-61100

VALVE ASS'Y,SUCTION AND SAFETY

5

700-80-62310

SLEEVE

6

07002-03034

O-RING

7

VALVE

8

SEAL

9

POPPET

10

SPRING

11

PISTON

12

SEAL

13

O-RING

14

O-RING

15

RING,BACK-UP

16

NUT

16

NUT

17

700-80-62250

SPRING

|$30

709-70-61201

VALVE ASS'Y,SUCTION AND SAFETY

|$31

709-70-61200

VALVE ASS'Y,SUCTION AND SAFETY

18

700-80-62310

SLEEVE

19

07002-03034

O-RING

20

VALVE

21

SEAL

22

POPPET

23

SPRING

24

PISTON

25

SEAL

26

O-RING

27

O-RING

28

RING,BACK-UP

29

NUT

29

NUT

30

700-80-62250

SPRING

|$46

709-70-62200

VALVE ASS'Y

31

SLEEVE

32

700-22-11410

O-RING

33

700-80-64220

RING,BACK-UP

34

07002-03034

O-RING

35

POPPET

36

SPRING

37

PISTON

38

SEAL

39

O-RING

40

SCREW

41

O-RING

42

NUT

|$59

709-70-61601

VALVE ASS'Y,SUCTION AND SAFETY

|$60

709-70-61600

VALVE ASS'Y,SUCTION AND SAFETY

|$61

709-70-61200

VALVE ASS'Y,SUCTION AND SAFETY

43

700-80-62310

SLEEVE

44

07002-03034

O-RING

45

VALVE

45

VALVE

46

SEAL

47

POPPET

48

SPRING

49

PISTON

49

PISTON

50

SEAL

51

O-RING

52

O-RING

53

RING,BACK-UP

54

NUT

54

NUT

55

700-80-62250

SPRING

Выбрано товаров: 78
