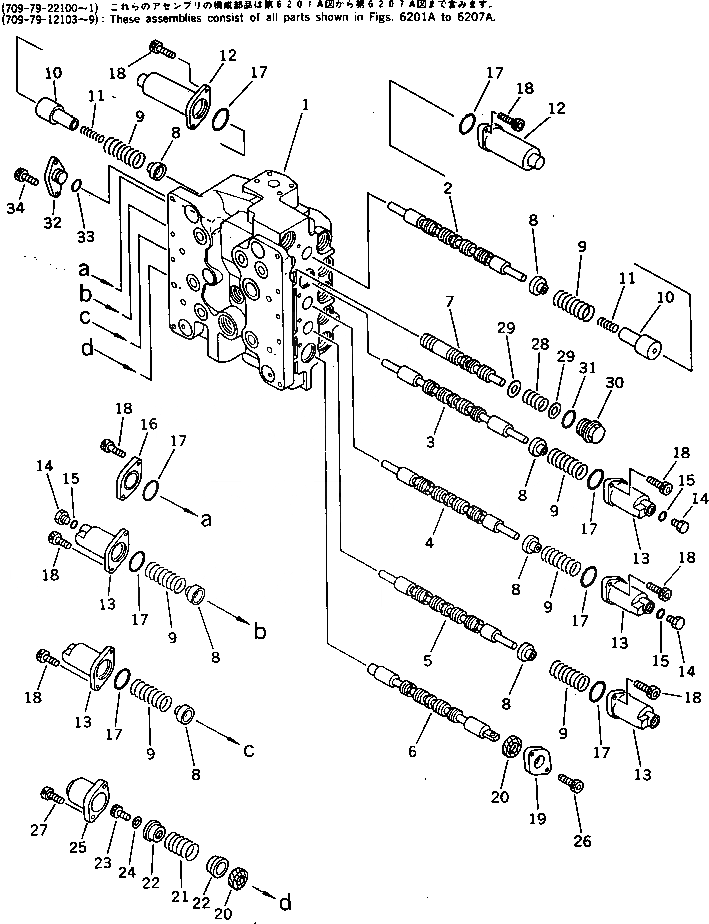

Запчасти Komatsu PC200LC-3 УПРАВЛЯЮЩ. КЛАПАН (/7) (ДЛЯ УДЛИНН. РЫЧАГ УПРАВЛ-Е)(№-) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ
№
Артикул
Название
Примечание
Количество
|$0
709-79-22101
CONTROL VALVE ASS'Y
|$1
709-79-22100
CONTROL VALVE ASS'Y
|$2
709-79-12109
CONTROL VALVE ASS'Y
|$3
709-79-12108
CONTROL VALVE ASS'Y
|$4
709-79-12107
CONTROL VALVE ASS'Y
|$5
709-79-12106
CONTROL VALVE ASS'Y
|$6
709-79-12105
CONTROL VALVE ASS'Y
|$7
709-79-12104
CONTROL VALVE ASS'Y
|$8
709-79-12103
CONTROL VALVE ASS'Y
|$9
709-75-92105
VALVE ASS'Y
|$10
709-75-92104
VALVE ASS'Y
|$11
709-75-00020
VALVE ASS'Y
|$12
709-75-92103
VALVE ASS'Y
1
BODY,VALVE
1
BODY,VALVE
2
SPOOL,SWING
3
SPOOL,BOOM HIGH
4
SPOOL,SERVICE
5
SPOOL,ARM
6
SPOOL,L.H. TRAVEL
7
SPOOL
8
709-74-92110
RETAINER
9
709-74-92180
SPRING
10
709-74-92420
RETAINER
11
709-74-92430
SPRING
12
709-74-92580
CASE
13
709-74-92120
CASE
14
07040-11409
PLUG
15
07002-01423
O-RING
16
709-74-92590
PLATE
17
709-74-92170
O-RING
18
01252-30820
BOLT
19
709-75-92110
PLATE
20
709-75-92120
SEAL
21
709-75-92180
SPRING
22
709-75-92130
RETAINER
23
01252-30812
BOLT
24
01643-30823
WASHER
25
709-75-92140
CASE
26
01252-30812
BOLT
27
01252-30825
BOLT
28
709-74-92210
SPRING
29
709-74-92270
WASHER
30
709-74-92230
PLUG
31
07002-03034
O-RING
32
709-74-92260
PLATE
33
07000-02018
O-RING
34
01252-30820
BOLT
Выбрано товаров: 48
