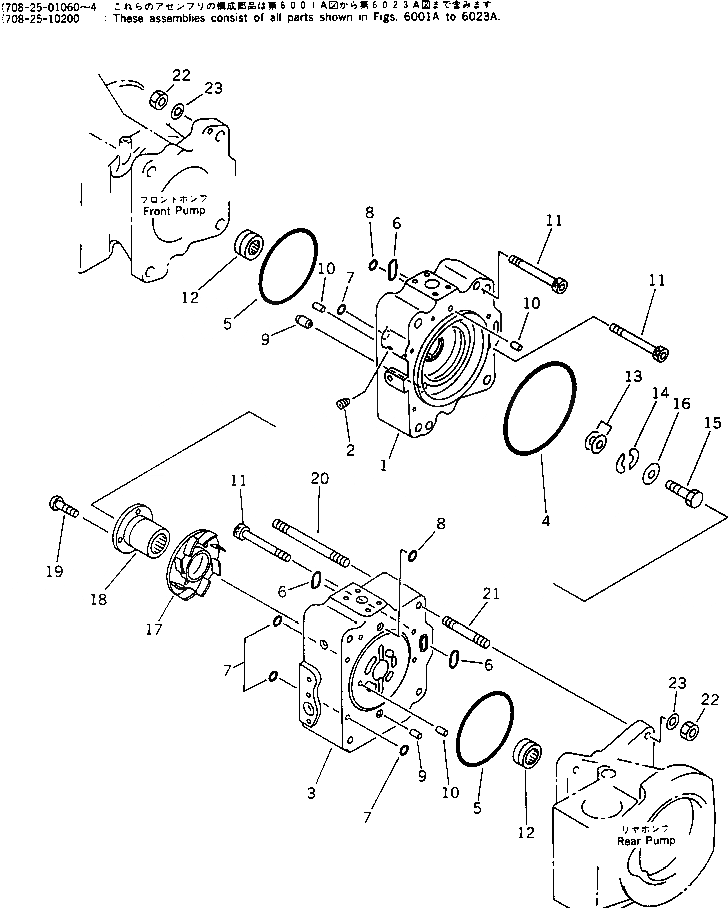

Запчасти Komatsu PC200LC-3 ГИДРАВЛ ПОРШЕНЬ НАСОС (/) (С -STAGE SELECTOR MODE OLSS)(№988-) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

708-25-01084

PUMP ASS'Y

|$1

708-25-01083

PUMP ASS'Y

|$2

708-25-01082

PUMP ASS'Y

|$3

708-25-01081

PUMP ASS'Y

|$4

708-25-01080

PUMP ASS'Y

|$5

708-25-01250

PUMP SUB ASS'Y

|$6

708-25-11101

PUMP SUB ASS'Y

|$7

708-25-00110

END CAP ASS'Y,FRONT

1

CAP,END, FRONT

2

PLUG

3

708-25-12521

CAP,END, REAR

4

07000-05165

O-RING

5

07000-02135

O-RING

6

07000-03032

O-RING

7

07000-11009

O-RING

8

07000-12015

O-RING

9

6130-21-1910

PIN

10

720-68-19610

PIN

11

708-25-12530

BOLT

12

708-25-12740

BEARING

13

708-25-05020

SHIM KIT

13

SHIM, 0.1MM

13

SHIM, 0.15MM

13

SHIM, 0.2MM

13

SHIM, 0.5MM

14

708-25-12950

PLATE

15

706-74-40320

BOLT

16

01643-31032

WASHER

17

708-25-12542

IMPELLER

18

708-25-12552

COUPLING

19

706-73-42270

SCREW

20

01141-81620

STUD

21

01140-81645

STUD

22

01582-21613

NUT

23

01643-31645

WASHER
