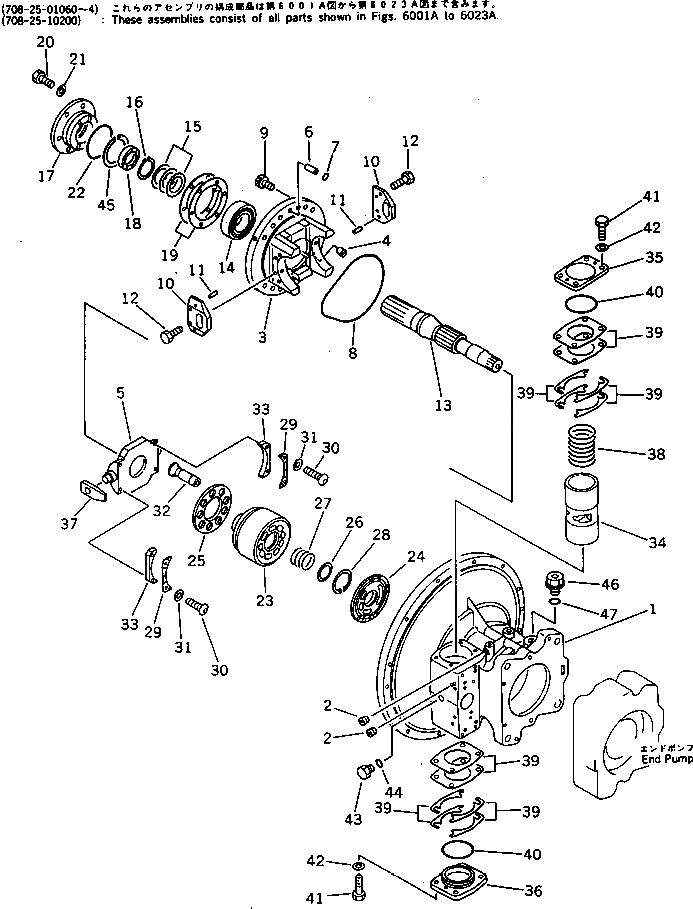

Запчасти Komatsu PC200LC-3 ГИДРАВЛ ПОРШЕНЬ НАСОС (/) (С -STAGE SELECTOR MODE OLSS)(№988-) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ
№
Артикул
Название
Примечание
Количество
|$0
708-25-01084
PUMP ASS'Y
|$1
708-25-01083
PUMP ASS'Y
|$2
708-25-01082
PUMP ASS'Y
|$3
708-25-01081
PUMP ASS'Y
|$4
708-25-01080
PUMP ASS'Y
|$5
708-25-01250
PUMP SUB ASS'Y
|$6
708-25-11101
PUMP SUB ASS'Y
|$7
708-25-00090
CASE ASS'Y
1
CASE,FRONT
2
PLUG
|$10
708-25-00031
CRADLE ASS'Y,FRONT
|$11
708-25-00030
CRADLE ASS'Y,FRONT
|$13
708-25-00480
CRADLE SUB ASS'Y,FRONT
3
CRADLE,FRONT
4
PLUG
5
CAM,ROCKER
5
CAM,ROCKER
6
708-25-12330
JOINT
7
07000-12015
O-RING
8
708-25-12340
O-RING
9
708-25-12390
BOLT
10
708-25-12360
PLATE
11
04020-00820
PIN,DOWEL
12
01010-30816
BOLT
13
708-25-12711
SHAFT,FRONT
14
708-25-12731
BEARING
15
708-25-05010
WASHER KIT
15
WASHER, 2.0MM
15
WASHER, 2.1MM
15
WASHER, 2.2MM
16
708-25-12790
RING,SNAP
17
708-25-12811
HOUSING
18
708-25-52860
SEAL,OIL
18
708-25-12980
SEAL,OIL
18
706-23-40920
SEAL,OIL
19
708-25-05130
SHIM KIT
19
708-25-12940
SHIM, 0.1MM
19
708-25-12930
SHIM, 0.2MM
20
01010-30820
BOLT
21
01643-30823
WASHER
22
07000-02080
O-RING
|$42
708-25-00010
BLOCK ASS'Y
23
708-25-13151
BLOCK,CYLINDER
24
708-25-13210
PLATE,VALVE
25
708-25-13422
RETAINER,SHOE
26
708-25-13120
WASHER
27
708-25-13130
SPRING
28
708-25-13140
RING,SNAP
29
708-25-13441
RETAINER,BEARING
30
708-25-13470
SCREW
31
01643-30623
WASHER
32
708-25-13311
PISTON SUB ASS'Y
33
708-25-05060
SPACER KIT
33
SPACER, 11.540MM
33
SPACER, 11.560MM
33
SPACER, 11.575MM
34
708-25-14210
PISTON
35
708-25-14140
CAP
36
708-25-14150
CAP
37
708-25-14121
SLIDER
37
708-25-14120
SLIDER
38
708-25-14130
SPRING
39
708-25-05050
SHIM KIT
39
SHIM, 0.1MM
39
SHIM, 0.1MM
39
SHIM, 0.2MM
39
SHIM, 0.5MM
40
07000-02065
O-RING
41
01016-31035
BOLT
41
01010-51035
BOLT
42
01643-31032
WASHER
43
720-68-19870
PLUG
44
07002-01223
O-RING
45
708-25-12970
RING,SNAP
46
07044-02412
PLUG
47
07002-02434
O-RING
Выбрано товаров: 76
