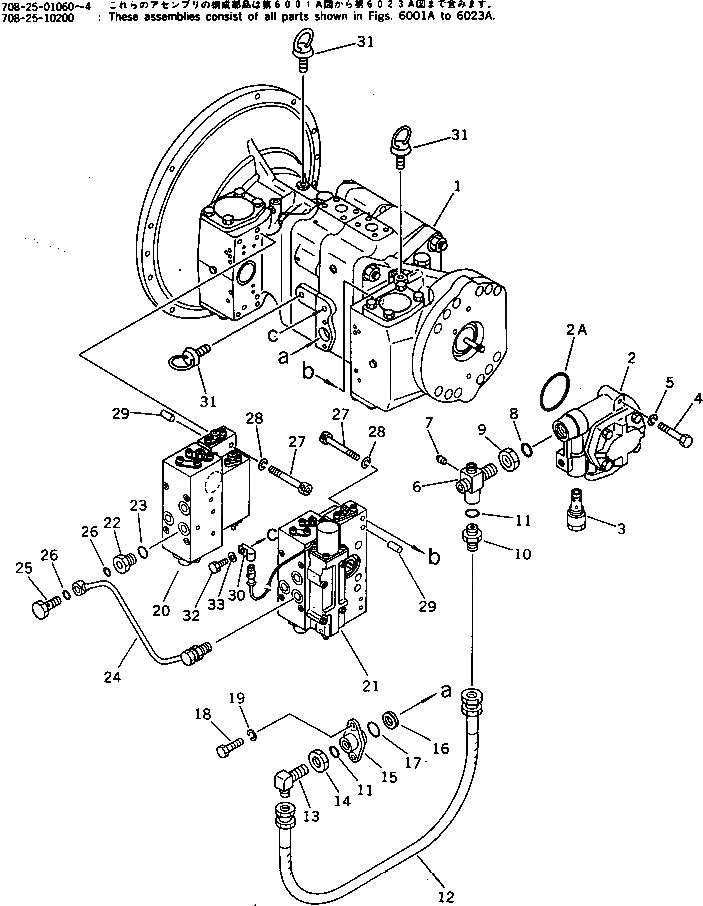

Запчасти Komatsu PC200LC-3 ГИДРАВЛ ПОРШЕНЬ НАСОС (/) (С -STAGE SELECTOR MODE OLSS)(№988-) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

708-25-01084

PUMP ASS'Y

|$1

708-25-01083

PUMP ASS'Y

|$2

708-25-01082

PUMP ASS'Y

|$3

708-25-01081

PUMP ASS'Y

|$4

708-25-01080

PUMP ASS'Y

1

708-25-01250

PUMP SUB ASS'Y

1

708-25-11101

PUMP SUB ASS'Y

2

704-24-28203

PUMP ASS'Y

2

704-24-28202

PUMP ASS'Y

2

704-24-28201

PUMP ASS'Y

2A

704-28-02710

O-RING

3

708-25-14902

RELIEF VALVE ASS'Y

3

708-25-14900

RELIEF VALVE ASS'Y

4

01010-31260

BOLT

5

01643-31232

WASHER

6

708-25-19111

JOINT

7

07042-20108

PLUG

8

07002-02434

O-RING

9

07239-12410

NUT

10

07230-20422

UNION

10

07230-10422

UNION

11

07002-02034

O-RING

12

07102-20404

HOSE

13

07232-30422

ELBOW

13

07231-20422

ELBOW

14

07239-12009

NUT

15

708-25-19120

FLANGE

16

720-68-15240

FILTER

17

07000-02021

O-RING

18

01010-30820

BOLT

19

01602-20825

WASHER,SPRING

20

708-25-07131

SERVO VALVE ASS'Y,FRONT

20

708-25-07130

SERVO VALVE ASS'Y,FRONT

20

708-25-35600

SERVO VALVE ASS'Y,FRONT

21

708-25-07232

SERVO VALVE ASS'Y,REAR

21

708-25-07231

SERVO VALVE ASS'Y,REAR

21

708-25-07230

SERVO VALVE ASS'Y,REAR

21

708-25-36600

SERVO VALVE ASS'Y,REAR

22

706-46-53260

PLUG

23

07002-01423

O-RING

24

708-25-19140

TUBE

25

706-46-53180

BOLT,JOINT

26

07000-02012

O-RING

27

708-25-19130

BOLT

28

01602-00825

WASHER,SPRING

29

04020-00616

PIN,DOWEL

30

08036-21814

CLIP

31

04530-01018

BOLT,EYE

32

01010-31016

BOLT

33

01643-31032

WASHER
