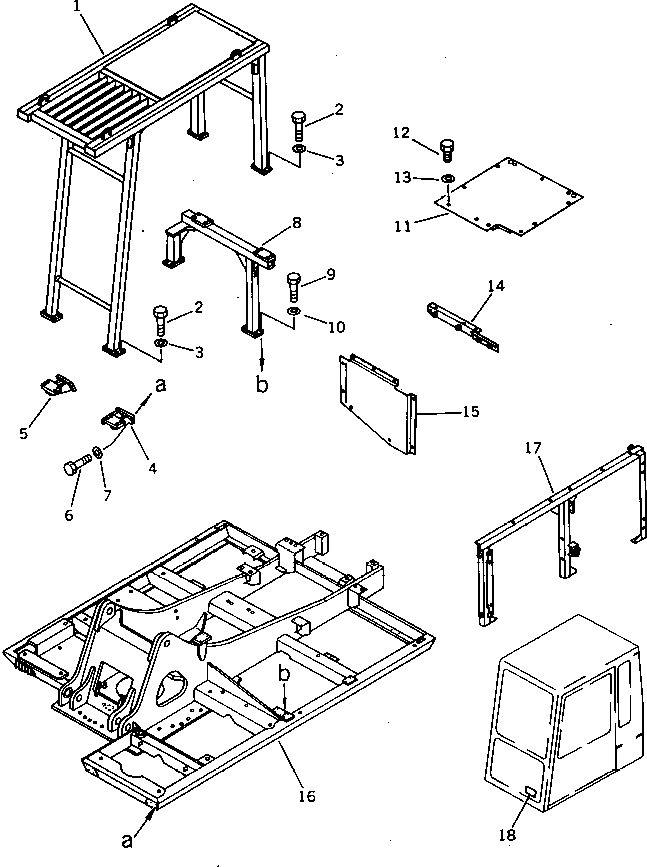

Запчасти Komatsu PC200LC-3 FALLING OBJECTIVE ЗАЩИТАIVE STRUCTURE ОПЦИОННЫЕ КОМПОНЕНТЫ
№
Артикул
Название
Примечание
Количество
1
205-956-7110
GUARD
2
01010-51640
BOLT
3
01643-51645
WASHER
4
205-956-7120
BRACKET,L.H.
5
205-956-7130
BRACKET,R.H.
6
01010-51640
BOLT
7
01643-51645
WASHER
8
205-956-7141
GUARD
|8
205-956-7140
GUARD
9
01010-51640
BOLT
10
01643-31645
WASHER
11
205-956-7170
COVER
12
01010-51225
BOLT
13
01643-31232
WASHER
14
205-956-7191
FRAME
15
205-956-7151
COVER
16
205-46-73151
FRAME,REVOLVING
|16
205-46-73150
FRAME,REVOLVING
17
205-956-7210
FRAME
18
205-00-71770
PLATE¤ CAUTION,(JAPANESE)
|18
205-00-71710
PLATE¤ CAUTION,(ENGLISH)
|18
205-00-71720
PLATE¤ CAUTION,(ARABIC-ENGLISH)
|18
205-00-71760
PLATE¤ CAUTION,(ITALIAN-ENGLISH)
|18
205-00-71730
PLATE¤ CAUTION,(INDONESIAN-ENGLISH)
|18
205-00-71740
PLATE¤ CAUTION,(SPANISH-ENGLISH)
|18
205-00-71680
PLATE¤ CAUTION,(CHINESE-ENGLISH)
|18
205-00-74230
PLATE¤ CAUTION,(GERMAN-ENGLISH)
|18
205-00-71750
PLATE¤ CAUTION,(FRENCH-ENGLISH)
|18
205-00-71690
PLATE¤ CAUTION,(RUSSIAN-ENGLISH)
Выбрано товаров: 29
