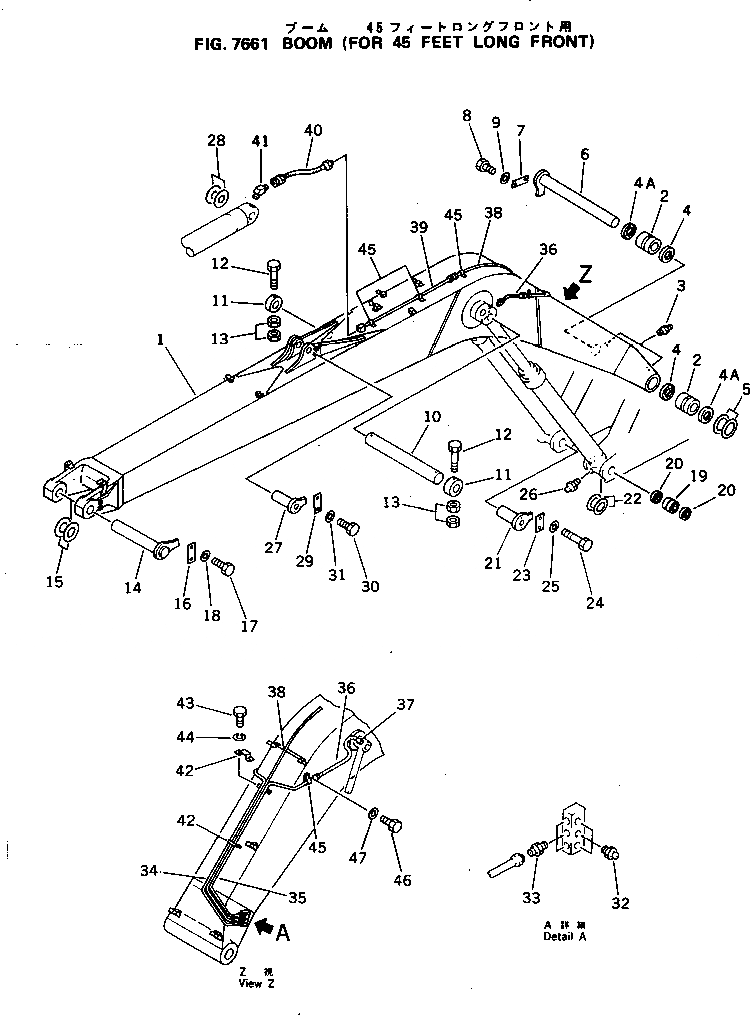

Запчасти Komatsu PC200LC-3 СТРЕЛА (ДЛЯ FEET УДЛИНН. РУКОЯТЬ И СТРЕЛА) РАБОЧЕЕ ОБОРУДОВАНИЕ

|1

205-949-0050

BOOM ASS'Y

1

BOOM

2

206-949-4170

BUSHING

3

07020-00000

FITTING,GREASE

4

07145-00080

SEAL,DUST

4A

07145-00080

SEAL,DUST

5

205-70-51450

SPACER¤ 1.0MM

6

205-70-71160

PIN

7

205-70-71311

PLATE

|7

205-70-71310

PLATE

8

01010-51640

BOLT

|8

01010-51235

BOLT

9

01643-31645

WASHER

|9

01643-31232

WASHER

10

206-70-51190

PIN

11

205-70-65670

PLATE

12

205-70-73190

BOLT

13

01580-12016

NUT

14

205-70-65680

PIN

15

206-70-45220

SPACER¤ 1.0MM

16

205-70-71310

PLATE

17

01010-51235

BOLT

18

01643-31232

WASHER

19

206-949-4540

BUSHING

20

07145-00070

SEAL,DUST

21

205-70-71210

PIN

22

203-70-24170

SPACER¤ 1.0MM

23

205-70-66580

PLATE

24

01010-51235

BOLT

25

01643-31232

WASHER

26

07020-00000

FITTING,GREASE

27

205-70-71320

PIN

28

205-70-51520

SPACER¤ 1.0MM

29

205-70-66580

PLATE

30

01010-51230

BOLT

31

01643-31232

WASHER

32

07020-00000

FITTING,GREASE

33

07213-50813

CONNECTOR

34

205-70-71251

TUBE

35

205-70-71271

TUBE

36

205-70-51360

HOSE¤ 540MM

37

205-70-51390

NIPPLE

38

206-949-4470

TUBE

39

206-949-4180

TUBE

40

209-72-16580

HOSE

41

205-70-65780

ELBOW

42

205-70-51410

CLIP

43

01010-50612

BOLT

44

01643-30623

WASHER

45

08036-00814

CLIP

|45

21T-62-25740

CLIP

46

01010-51016

BOLT

47

01643-31032

WASHER
