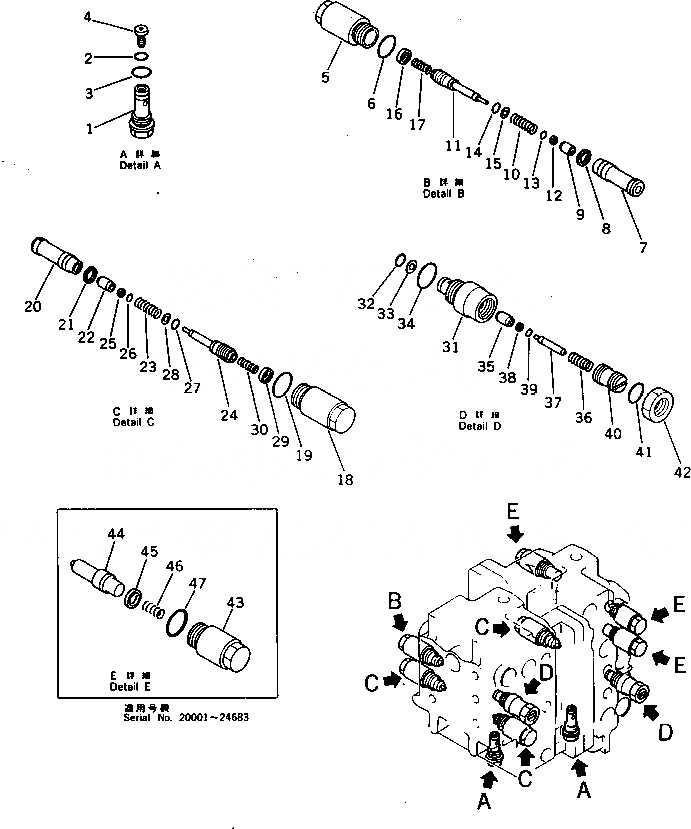

Запчасти Komatsu PC200LC-3 УПРАВЛЯЮЩ. КЛАПАН (7/7) (ДЛЯ WRIST УПРАВЛ-Е)(№-) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ
№
Артикул
Название
Примечание
Количество
|1
709-79-12102
CONTROL VALVE ASS'Y
|1
709-79-12101
CONTROL VALVE ASS'Y
|1
709-79-12100
CONTROL VALVE ASS'Y
|1
709-70-91300
ORIFICE ASS'Y
1
ORIFICE
2
07000-02014
O-RING
3
07002-02434
O-RING
4
SENSOR
|5
709-70-61100
VALVE ASS'Y
5
700-80-62310
SLEEVE
6
07002-03034
O-RING
7
VALVE
8
SEAL
9
POPPET
10
SPRING
11
PISTON
12
SEAL
13
O-RING
14
O-RING
15
RING,BACK-UP
16
NUT
17
700-80-62250
SPRING
|18
709-70-61200
VALVE ASS'Y
|18
709-70-61200
VALVE ASS'Y
18
700-80-62310
SLEEVE
19
07002-03034
O-RING
20
VALVE
21
SEAL
22
POPPET
23
SPRING
24
PISTON
25
SEAL
26
O-RING
27
O-RING
28
RING,BACK-UP
29
NUT
30
700-80-62250
SPRING
|31
709-70-62200
VALVE ASS'Y,SAFETY
|31
709-70-62200
VALVE ASS'Y,SAFETY
|31
709-70-62100
VALVE ASS'Y,SAFETY
31
SLEEVE
|31
SLEEVE
32
700-22-11410
O-RING
33
700-30-64220
RING,BACK-UP
34
07002-03034
O-RING
35
POPPET
36
SPRING
37
PISTON
38
SEAL
39
O-RING
40
SCREW
41
O-RING
42
NUT
|43
700-81-81000
VALVE ASS'Y
43
700-80-62310
SLEEVE
44
VALVE
45
SEAL
46
700-80-62250
SPRING
47
07002-03034
O-RING
Выбрано товаров: 59
