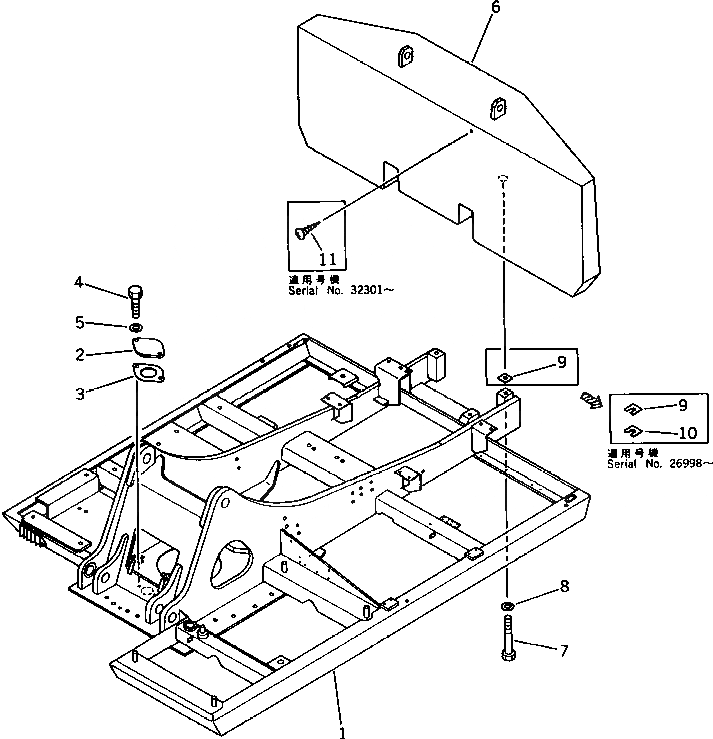

Запчасти Komatsu PC200LC-3 ОСНОВНАЯ РАМА ОСНОВНАЯ РАМА И КАБИНА

1

205-46-71103

FRAME,REVOLVING

|1

205-46-71102

FRAME,REVOLVING

|1

205-46-71101

FRAME,REVOLVING

2

205-30-71181

COVER

|2

205-30-71180

COVER

3

205-30-71191

GASKET

|3

205-30-71190

GASKET

4

01010-51230

BOLT

5

01643-31232

WASHER

6

205-46-72112

WEIGHT,COUNTER

|6

205-46-72111

WEIGHT,COUNTER

7

203-09-21110

BOLT

8

01643-32460

WASHER

9

205-46-71160

PLATE¤ 3.2MM

|9

205-46-71160

PLATE¤ 3.2MM

|9

205-46-71160

PLATE¤ 3.2MM

10

205-46-71190

PLATE¤ 1.6MM

|10

205-46-71190

PLATE¤ 1.6MM

11

01370-00508

SCREW
