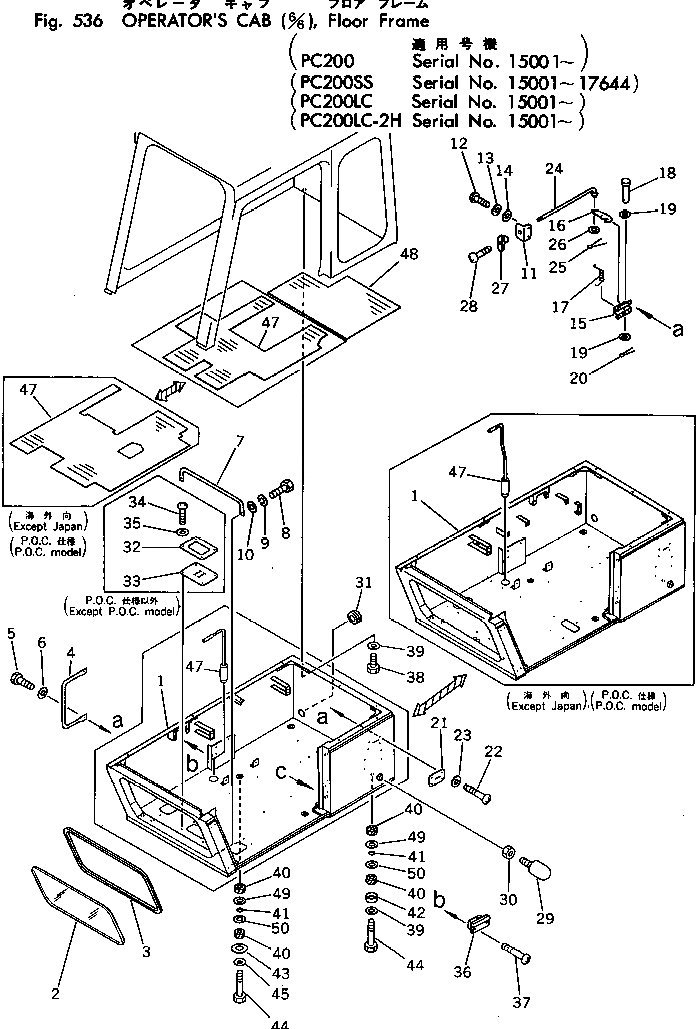

Запчасти Komatsu PC200LC-2 КАБИНА (/) (ОСНОВН. КОНСТРУКЦИЯ) ОСНОВНАЯ РАМА И КАБИНА

|$0

205-54-00180

FLOOR FRAME ASS'Y

|$1

205-54-00190

FLOOR FRAME ASS'Y,(P.O.C. MODEL) (EXCEPT JAPAN)

1

205-54-66172

FRAME

1

205-54-67680

FRAME,(P.O.C. MODEL) (EXCEPT JAPAN)

2

205-54-66610

GLASS

3

205-54-66620

STRIP

4

205-54-66490

HANDLE

5

01010-51030

BOLT

6

01643-31032

WASHER

7

205-54-63370

REST

8

01010-50825

BOLT

9

01602-20825

WASHER

10

01641-20812

WASHER

11

205-54-66450

GUIDE

12

01220-40620

SCREW

13

01602-20619

WASHER

14

01641-20608

WASHER

|$17

205-54-63400

CATCHER ASS'Y

15

205-54-63410

BRACKET

16

205-54-63420

HOOK

17

205-54-53580

SPRING

18

178-57-11250

PIN

19

01641-21016

WASHER

20

04050-12018

PIN

21

205-54-66460

COVER

22

01220-40630

SCREW

23

01643-30623

WASHER

24

205-54-66440

ROD

25

04050-12012

PIN

26

01641-20812

WASHER

27

130-43-63320

KNOB

28

01220-40416

SCREW

29

205-54-67960

STOPPER

30

01580-11008

NUT

31

205-54-65980

GROMMET

32

203-54-31260

PLATE,(P.O.C. MODEL) (EXCEPT JAPAN)

33

203-54-31270

COVER,(P.O.C. MODEL) (EXCEPT JAPAN)

34

01220-40616

SCREW,(P.O.C. MODEL) (EXCEPT JAPAN)

35

01643-30623

WASHER,(P.O.C. MODEL) (EXCEPT JAPAN)

36

206-54-15540

ASHTRAY

37

01220-40416

SCREW

38

01010-51030

BOLT

39

01643-31032

WASHER

40

203-54-21110

CUSHION

41

07000-03025

O-RING

42

201-54-21860

COLLAR

43

205-54-51950

PLATE

44

01010-51675

BOLT

45

01643-31645

WASHER

46

205-54-66161

PIN

46

205-54-67690

PIN,(P.O.C. MODEL) (EXCEPT JAPAN)

47

205-54-67820

MAT

47

205-54-65682

MAT,(P.O.C. MODEL) (EXCEPT JAPAN)

48

205-54-67830

MAT

49

205-54-67420

SPACER, 3.2MM

49

205-54-67430

SPACER, 2.3MM

50

205-54-67440

SPACER, 3.2MM

50

205-54-67450

SPACER, 2.3MM
